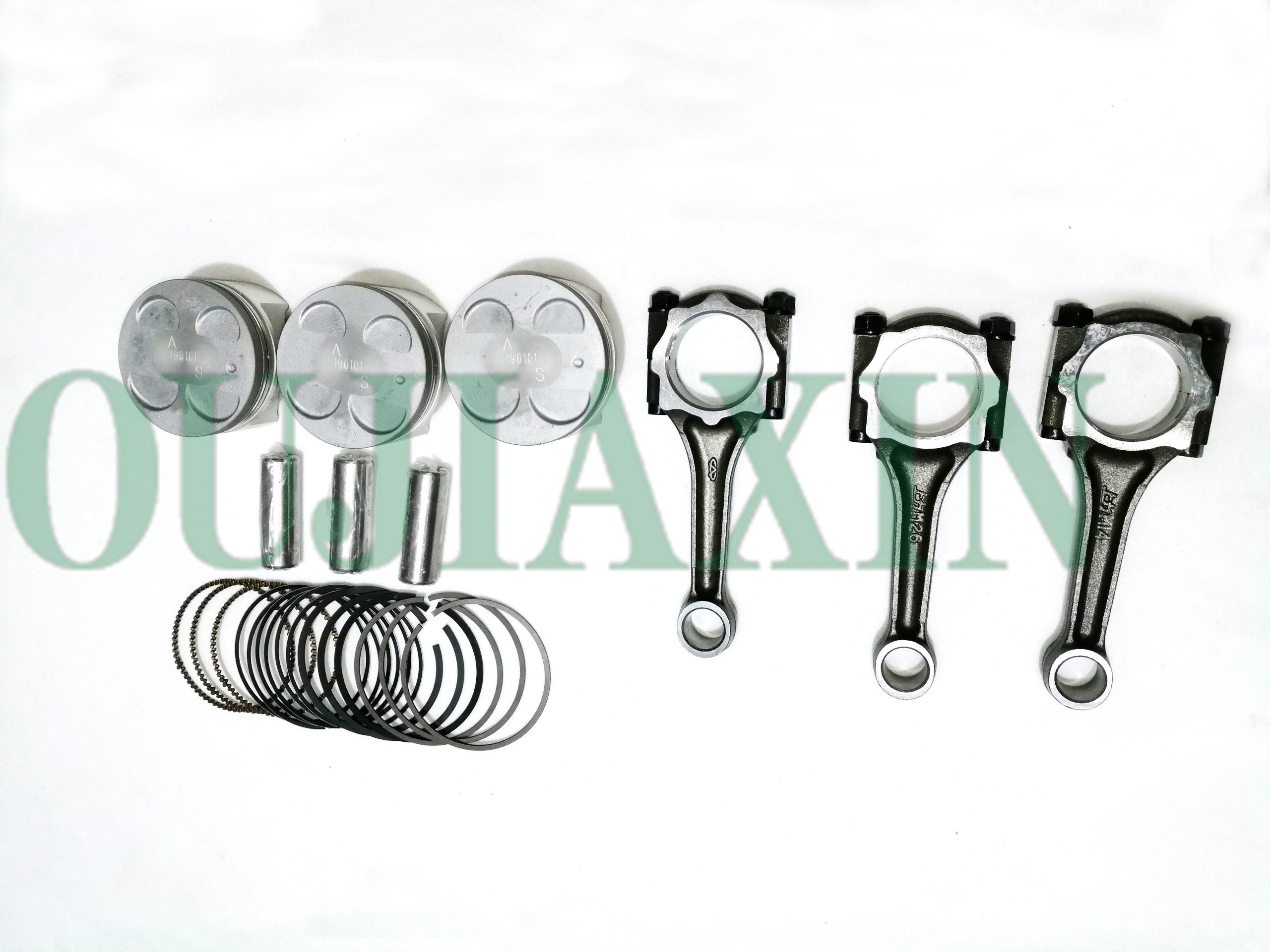

SQR372 Piston Kit + Connecting Rod for Joyner Trooper / Chery 800cc

The SQR372 is an 812cc three-cylinder gasoline engine commonly used in the Chery QQ, as well as various UTVs (Utility Task Vehicles) and small ATVs (such as the Joyner Trooper).

Category: Tag:

Description

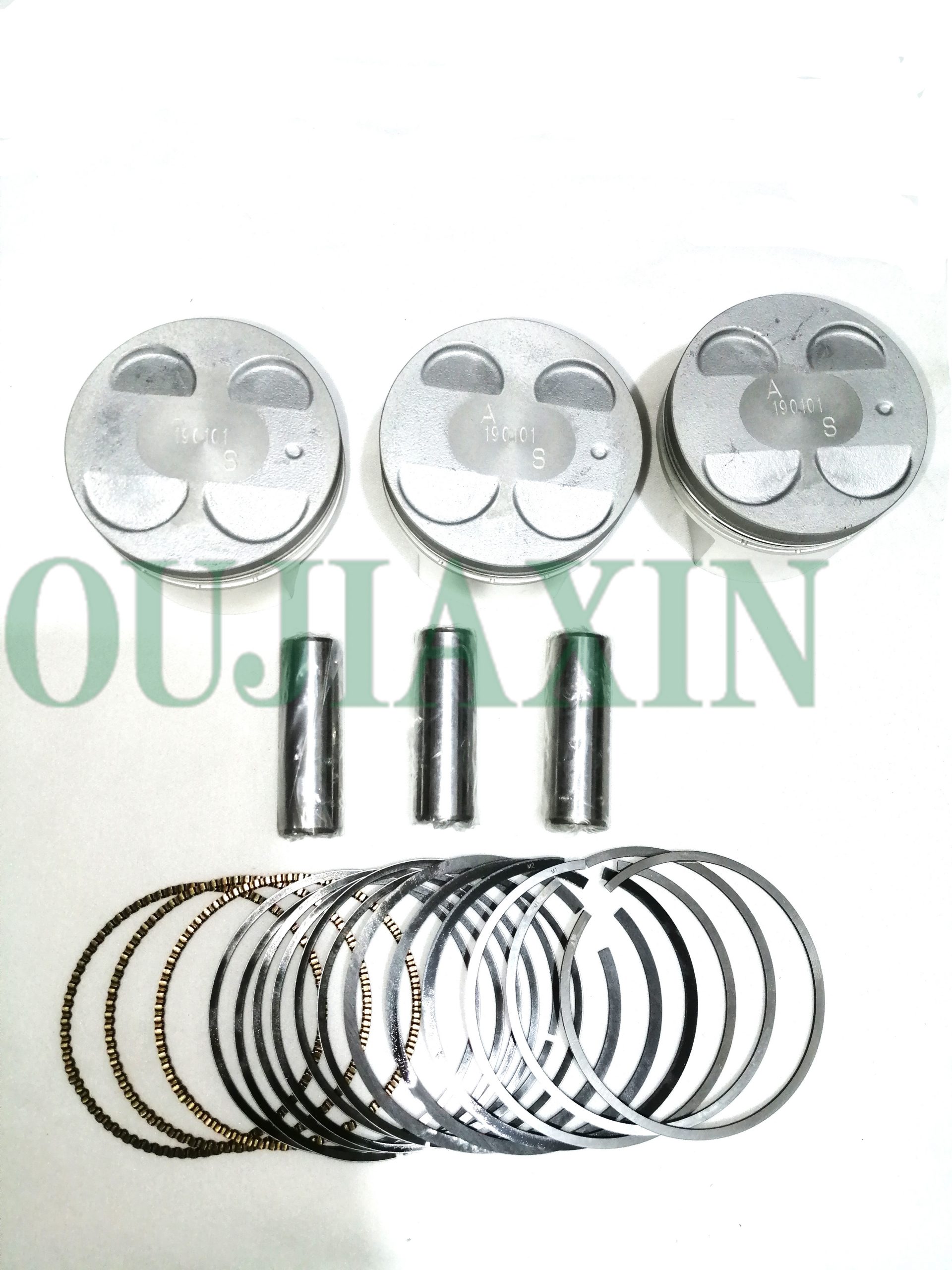

Piston and piston assembly specifications: Cylinder bore: 72 mm;
Stroke: 66.5 mm;
Piston material: Aluminum alloy;
Piston ring configuration: 1.2 mm × 1.2 mm × 2.5 mm;
Piston pin weight: 67 g;
Piston pin material: 15Cr or 20Cr steel;
Pin diameter: 18 mm.

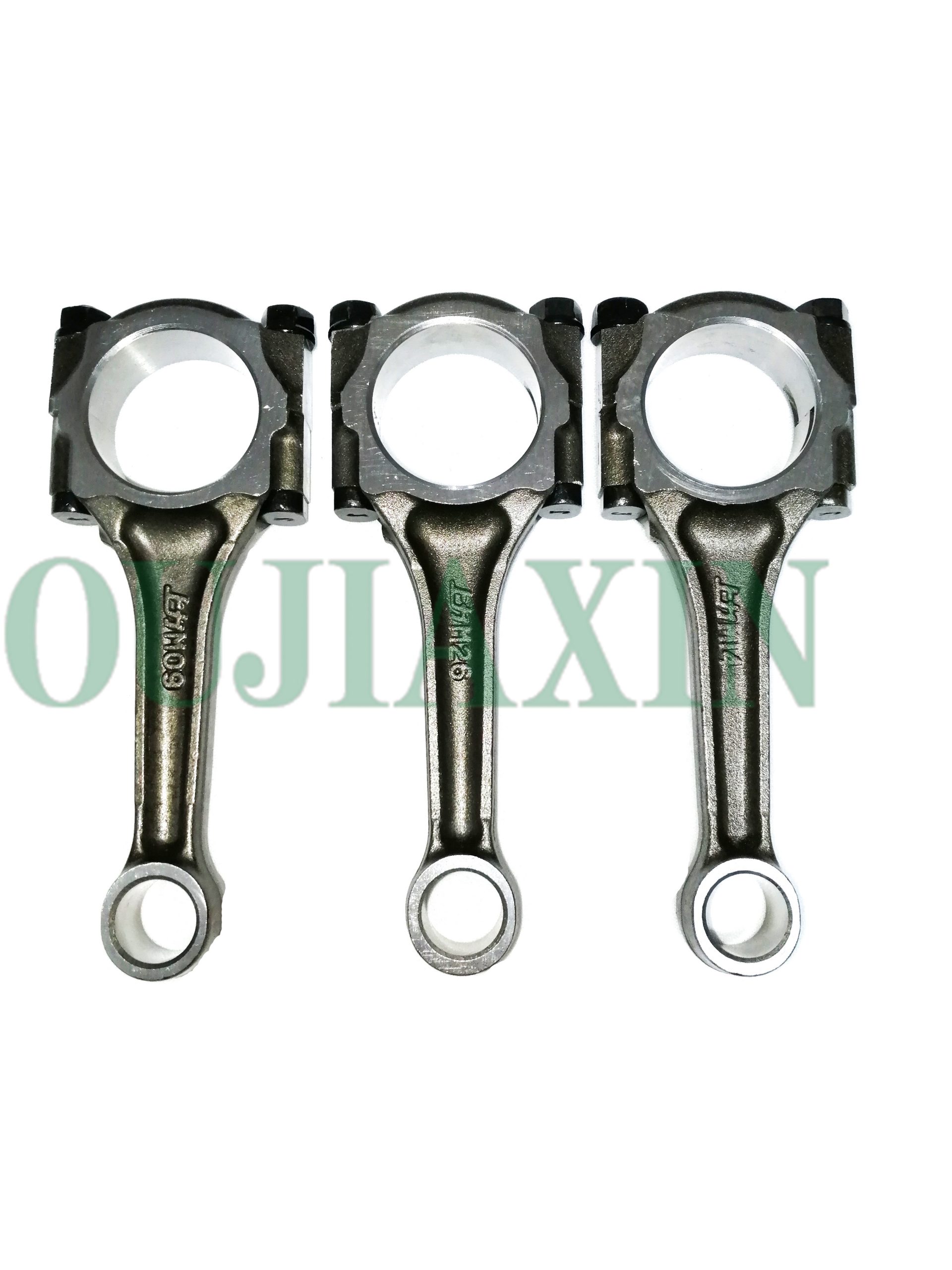

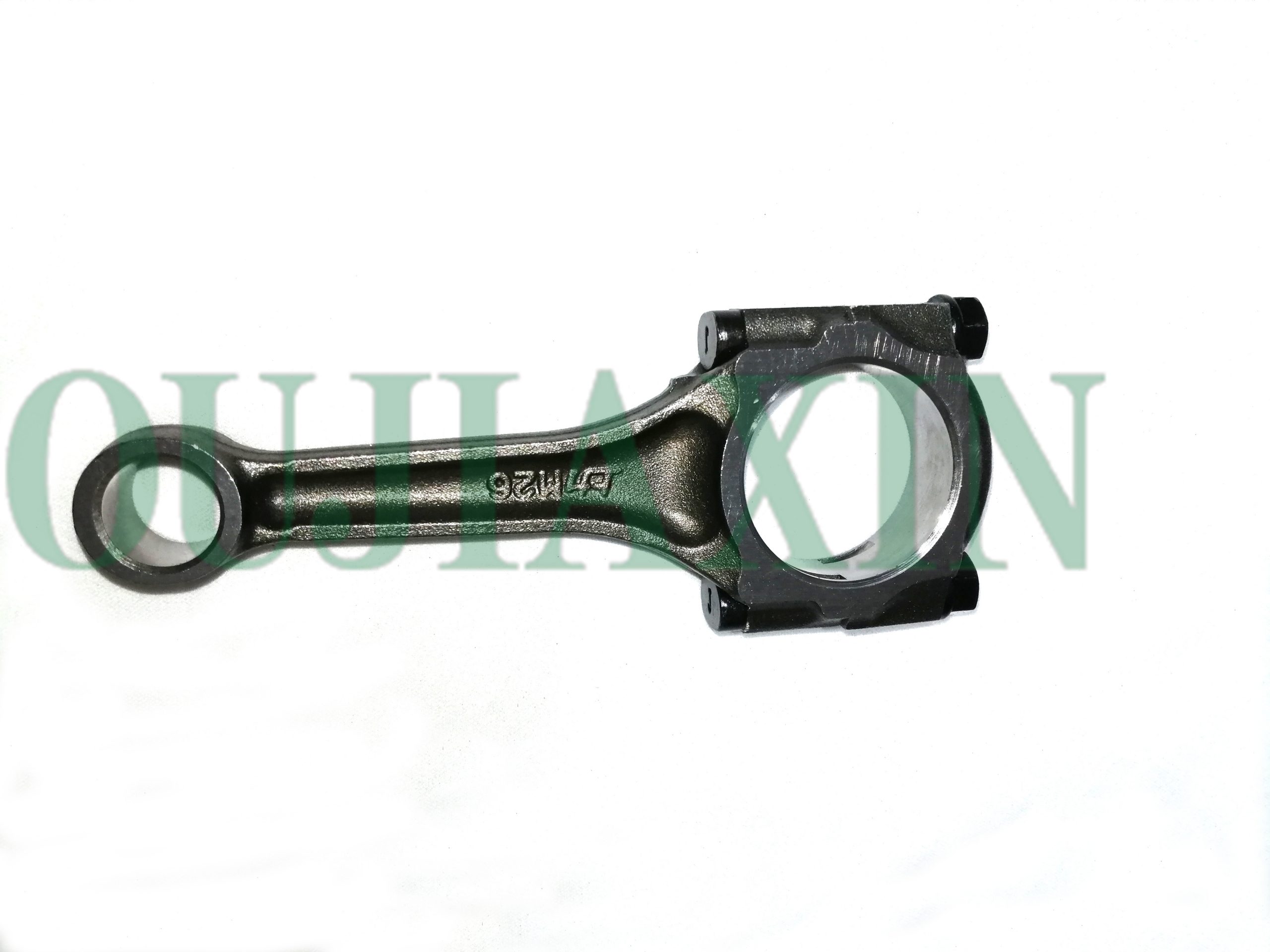

Connecting rod specifications—Length: 117.5 ± 0.035 mm (center-to-center distance);
Material: 40Cr or 35CrMn steel;
Small-end bore diameter: 18 mm;
Big-end bore diameter (journal diameter): 40 mm;
Connecting rod weight: 365 g to 383 g;
Bolt torque specification: 40 ± 2 N·m.
