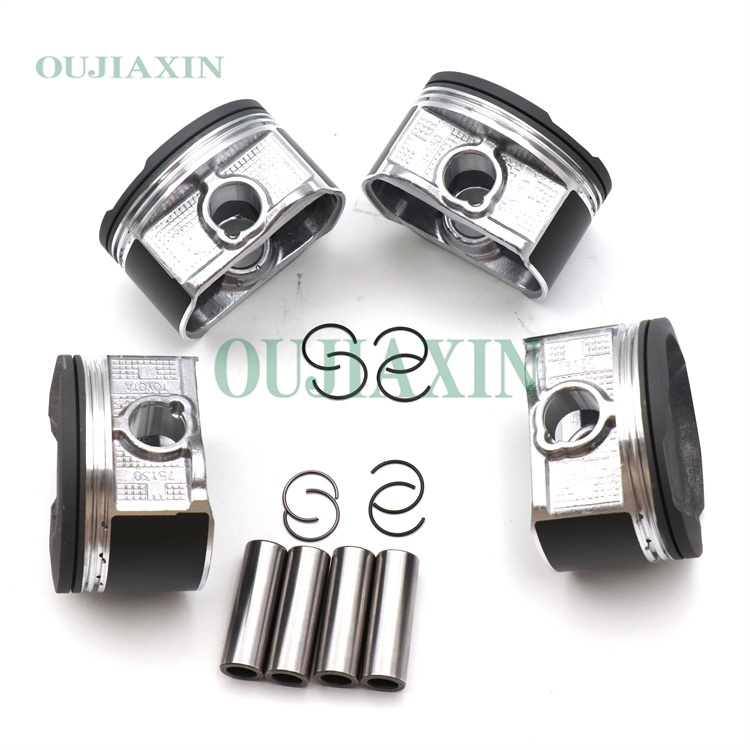

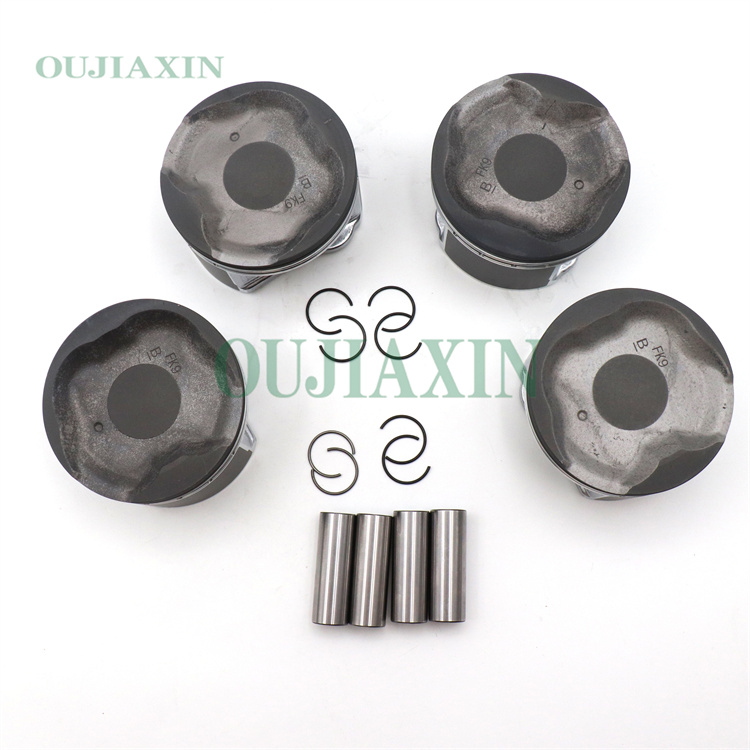

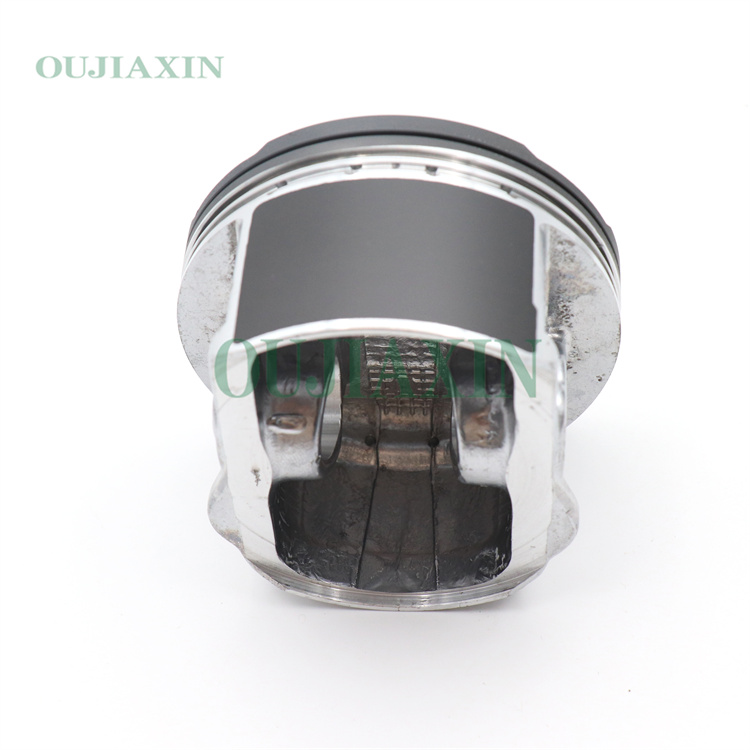

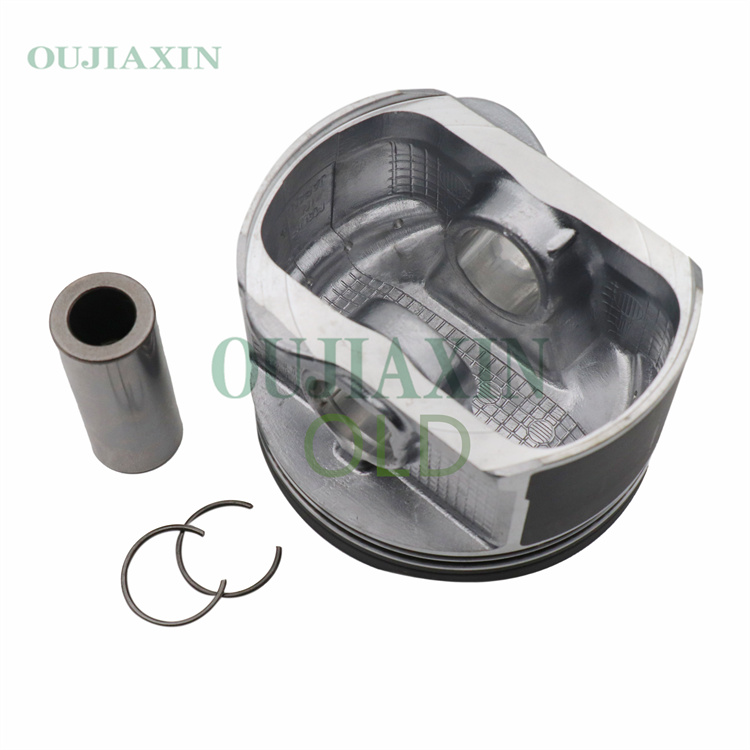

Pistons w/ Rings fit 05-15 Toyota Tacoma 2.7L DOHC 2TRFE 13101-75130

The Toyota 2TR-FE (Older Model) Standard (STD) piston assembly is designed specifically for engines with a bore of 95.0 mm, featuring a piston skirt diameter ranging from 94.940 to 94.970 mm. These aluminum alloy pistons typically utilize a 22 mm piston pin, with a piston ring groove configuration of 1.2–1.2–2.0 mm; for early VVT-i models, the compression ratio is set at 9.6:1.

Category: Tag:

Description

2TR-FE Standard (STD) Piston Assembly Key Specifications:
Piston Diameter (Skirt): 94.940–94.970 mm (3.7378–3.739 in);
Cylinder Bore Diameter: 95.0 mm (3.74 in);
Piston Pin Diameter: 21.997–22.000 mm (0.866–0.8661 in);
Piston Ring Dimensions: Top Ring (1.2 mm), Second Ring (1.2 mm), Oil Ring (2.0 mm);
Piston-to-Cylinder Clearance: 0.019–0.052 mm (0.0007–0.0020 in);
Piston Ring End Gap (Standard / STD):
— Top Ring: 0.22–0.34 mm (0.0087–0.0134 in);
— Second Ring: 0.45–0.57 mm (0.0177–0.0224 in);
— Oil Ring: 0.10–0.40 mm (0.0039–0.0157 in);
Material: ZL109 Aluminum Alloy

Common Part Numbers / Applicable Models:
OEM Numbers: 13101-75200 / 13103-75200
Applicable Models: 2004–2012 Hilux, Hiace, Tacoma, Fortuner, 4Runner, Land Cruiser Prado
