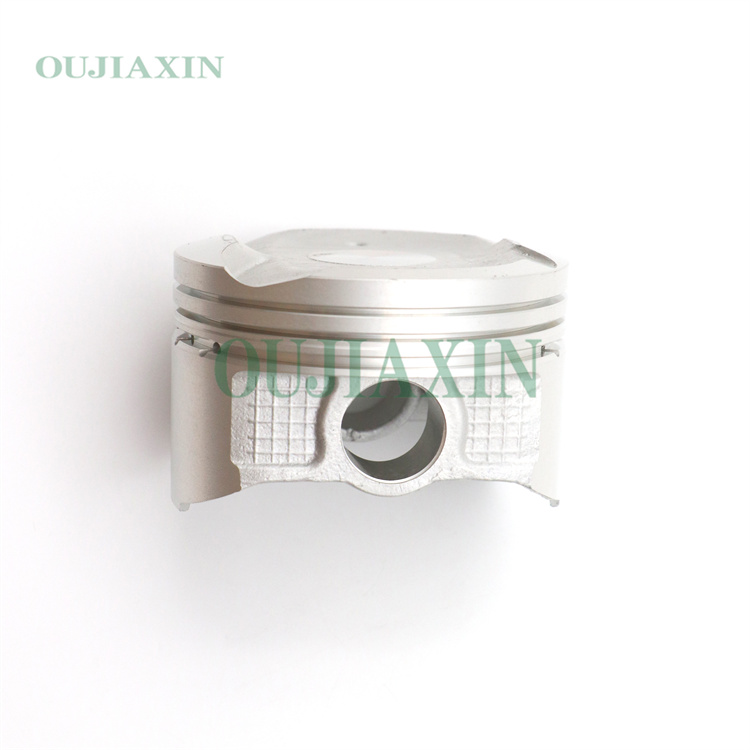

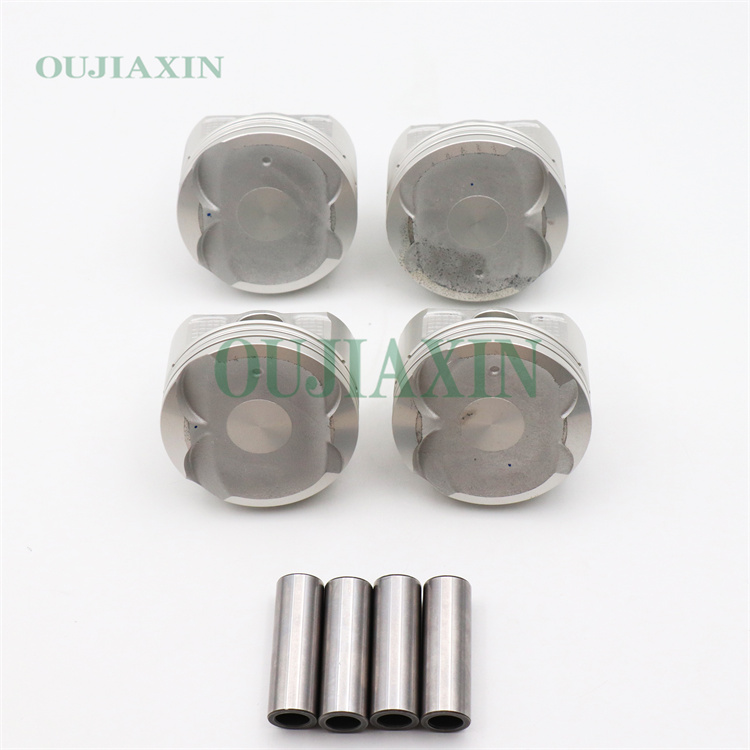

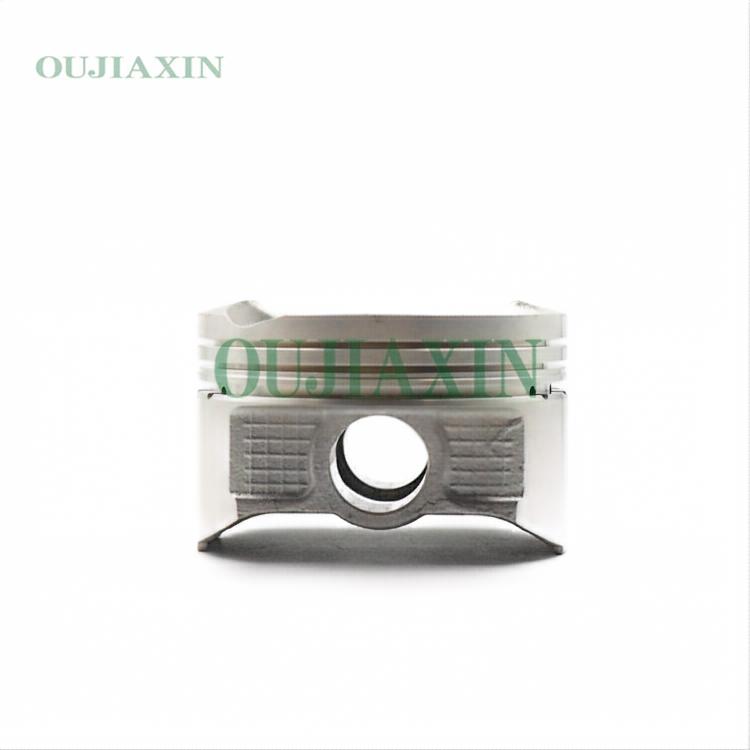

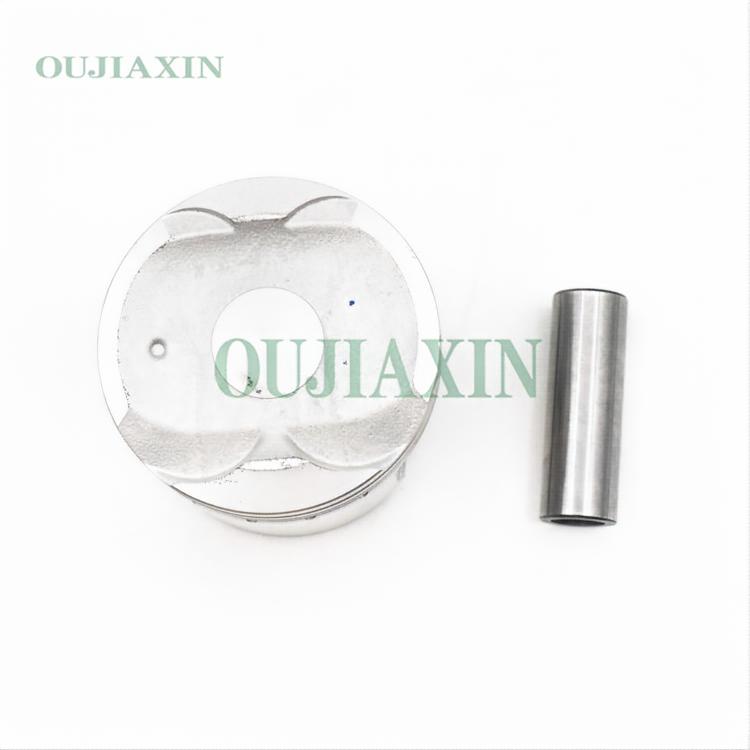

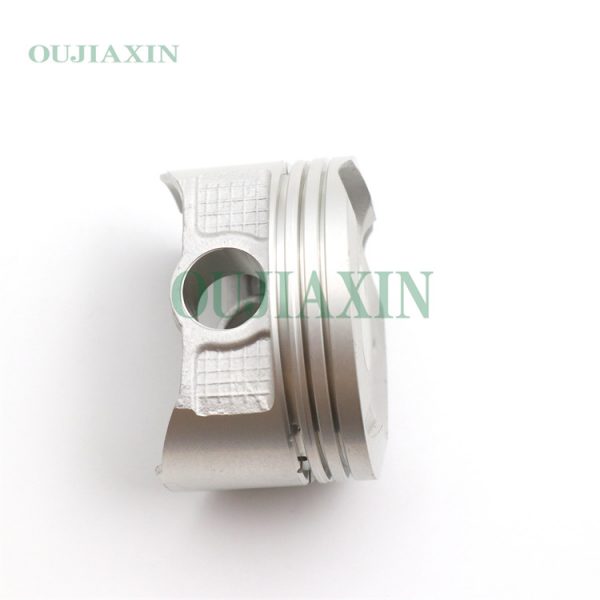

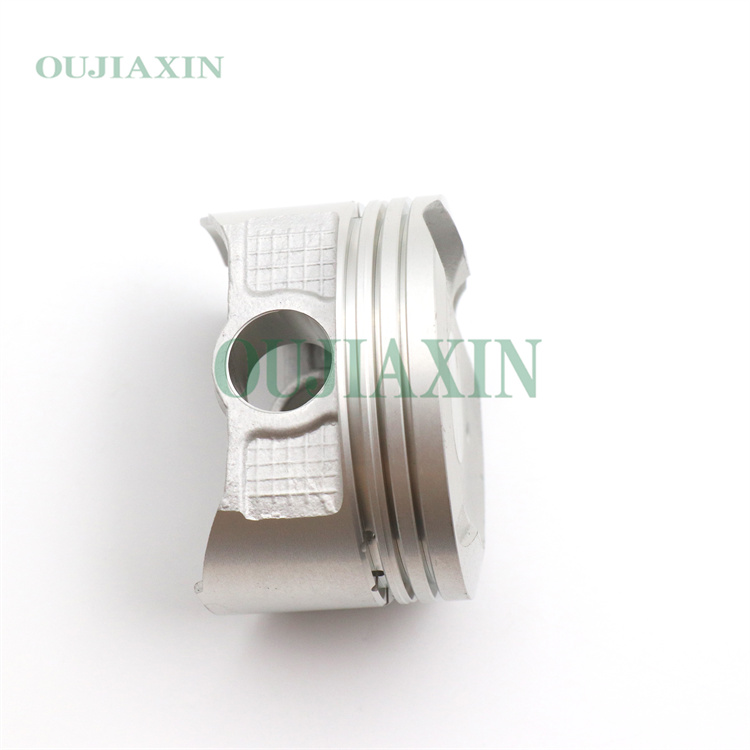

Piston Assembly — Toyota 2NZ STD (13101-21080)
Piston Assembly — Toyota 2NZ STD (13101-21080)
Piston Assembly — Toyota 2NZ STD (13101-21080)
Piston Assembly — Toyota 2NZ STD (13101-21080)
Piston Assembly — Toyota 2NZ STD (13101-21080)
Piston Assembly — Toyota 2NZ STD (13101-21080)
  1. Piston Assembly — Toyota 2NZ STD (13101-21080)
  2. Piston Assembly — Toyota 2NZ STD (13101-21080)
  3. Piston Assembly — Toyota 2NZ STD (13101-21080)
  4. Piston Assembly — Toyota 2NZ STD (13101-21080)
  5. Piston Assembly — Toyota 2NZ STD (13101-21080)
  6. Piston Assembly — Toyota 2NZ STD (13101-21080)

PISTON & RING SET TOYOTA 2NZ-FE FOR COROLLA ALTIS ECHO YARIS 1.3 LTR PETROL

The Toyota 2NZ-FE STD Piston Assembly is specifically designed for 1.3-liter engines with a bore diameter of 75.00 mm. Its key technical specifications include: construction from cast ZL109 aluminum alloy, a compression ratio of 10.5:1, and a piston pin diameter of approximately 18.00 mm. This assembly features a three-ring configuration: the first compression ring measures 1.2 mm, the second compression ring measures 1.2 mm, and the oil ring is available in specifications of either 2.0 mm or 3.0 mm.

Category: Tag:

Description

2NZ-FE Standard Piston Key Specifications:
Bore: 75.00 mm (Standard Size)
Piston Material: Cast ZL109 Aluminum Alloy
Compression Ratio: 10.5:1
Piston Pin Diameter: 18.00 mm
Compression Height (CD): ~28.10 mm
Total Length (TL): ~47.2 mm
Piston-to-Cylinder Wall Clearance: 0.02–0.04 mm

Common Part Numbers:
Piston Assembly: 13101-21040
Piston Ring Set: 28125
Piston Ring Set (Alternative): 2C5091 (STD)
