Piston &Piston ring 86（mm）13101-28061 For Toyota 1AZ-FE Engines Parts

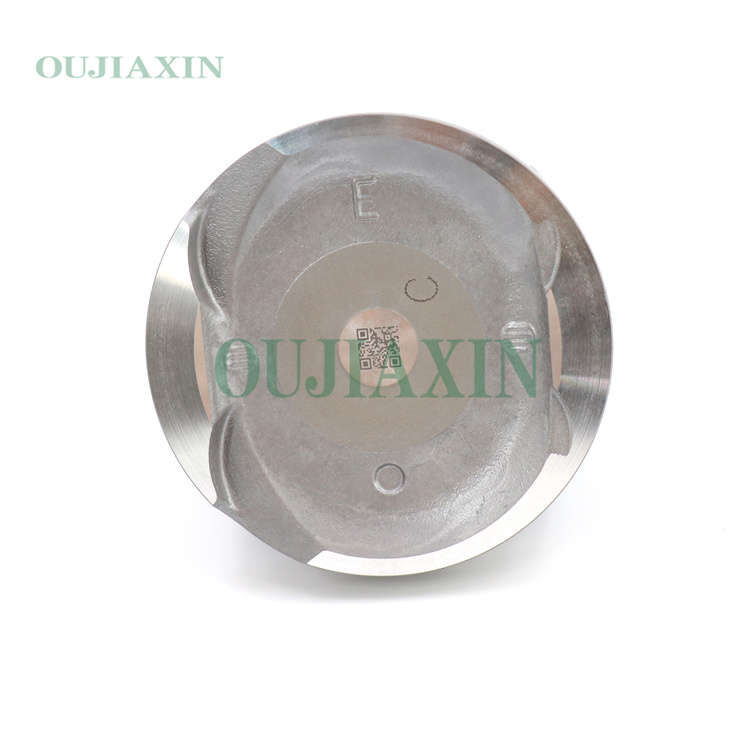

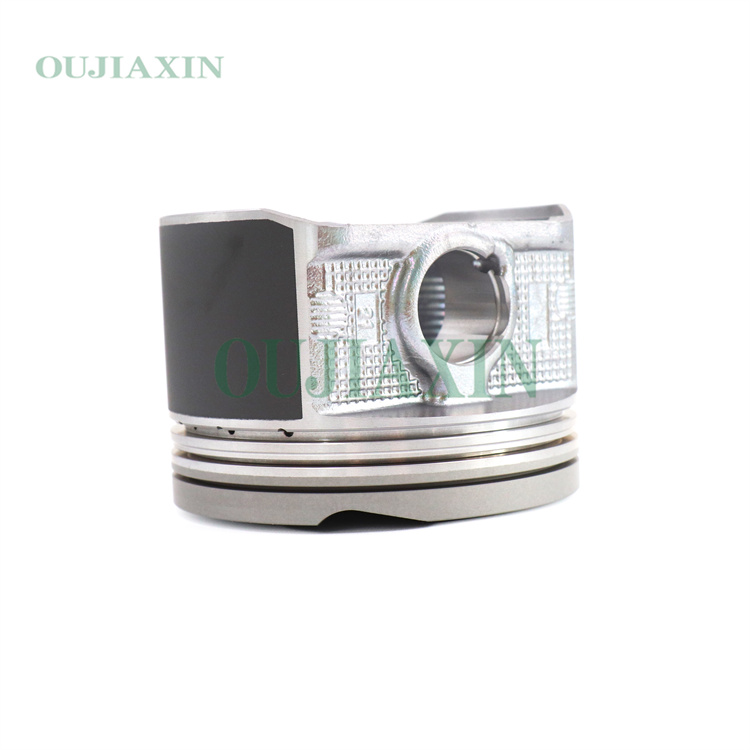

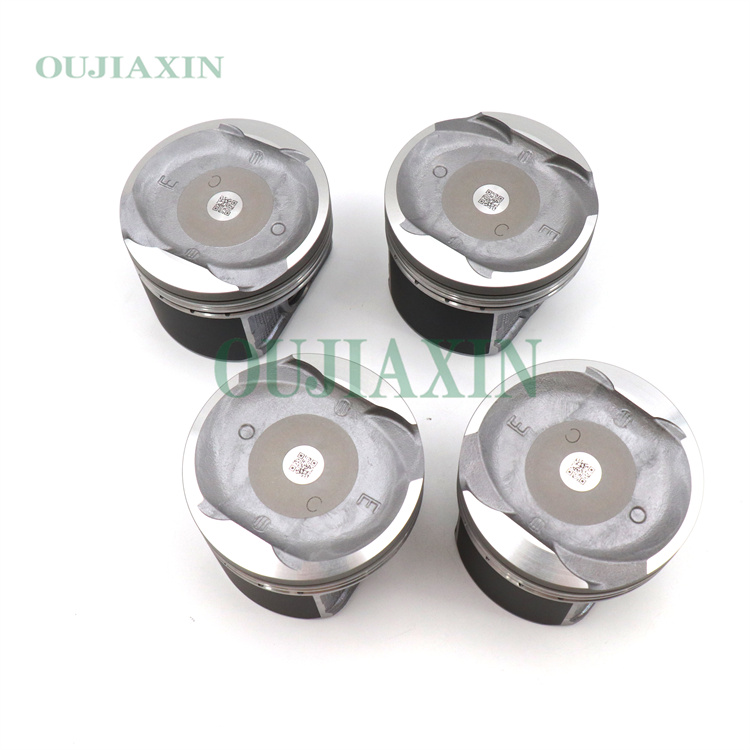

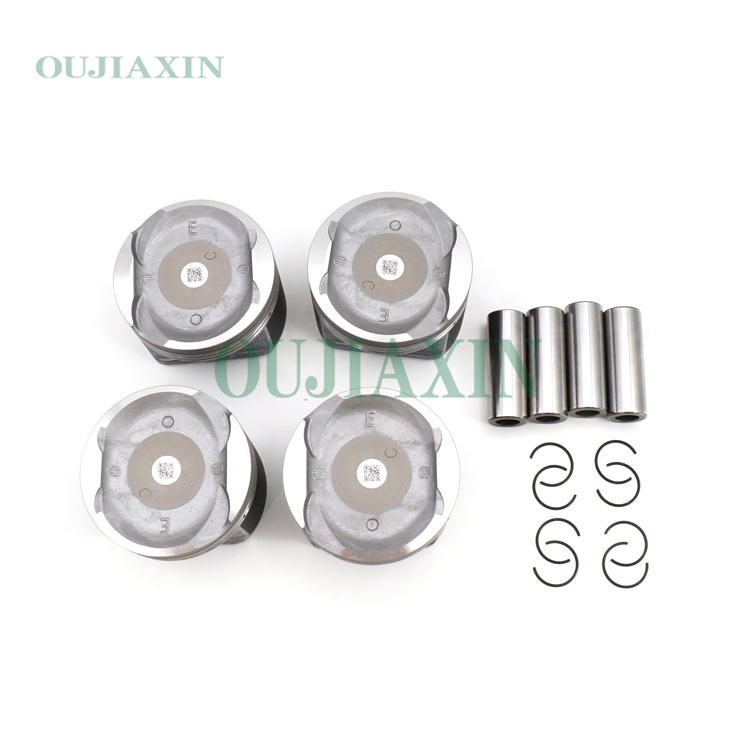

The Toyota 1AZ-FE/FSE piston assembly features lightweight aluminum alloy pistons with a diameter of 86.0 mm and a compression height of approximately 38.9 mm, specifically designed for a compression ratio of 9.8:1. This assembly is equipped with 1.2 mm first and second piston rings, as well as a 2.0 to 3.0 mm oil ring, and utilizes a 22 mm diameter piston pin; it is primarily used in the 2.0-liter RAV4 and Avensis engines.
Description
Piston and Piston Ring Specifications (1AZ-FE/FSE)
Bore: 86.00 mm (Standard)
Compression Height: 38.90 mm
Overall Length: 62.00 mm
Piston Pin Diameter: 22.00 mm
Top Ring Width: 1.2 mm Second Ring Width: 1.2 mm Oil Ring Width: 2.0 mm or 3.0 mm
Compression Ratio: 9.8:1
