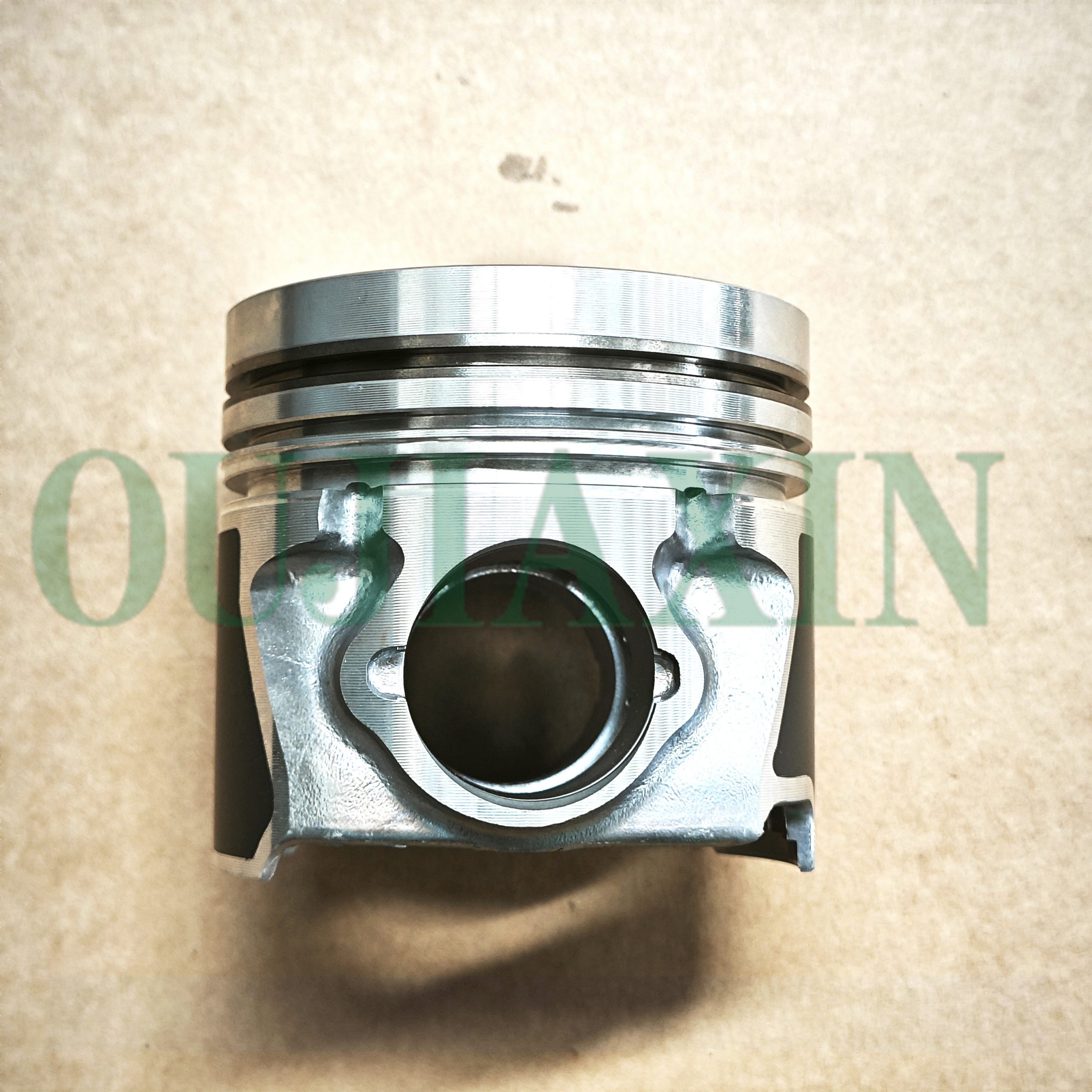

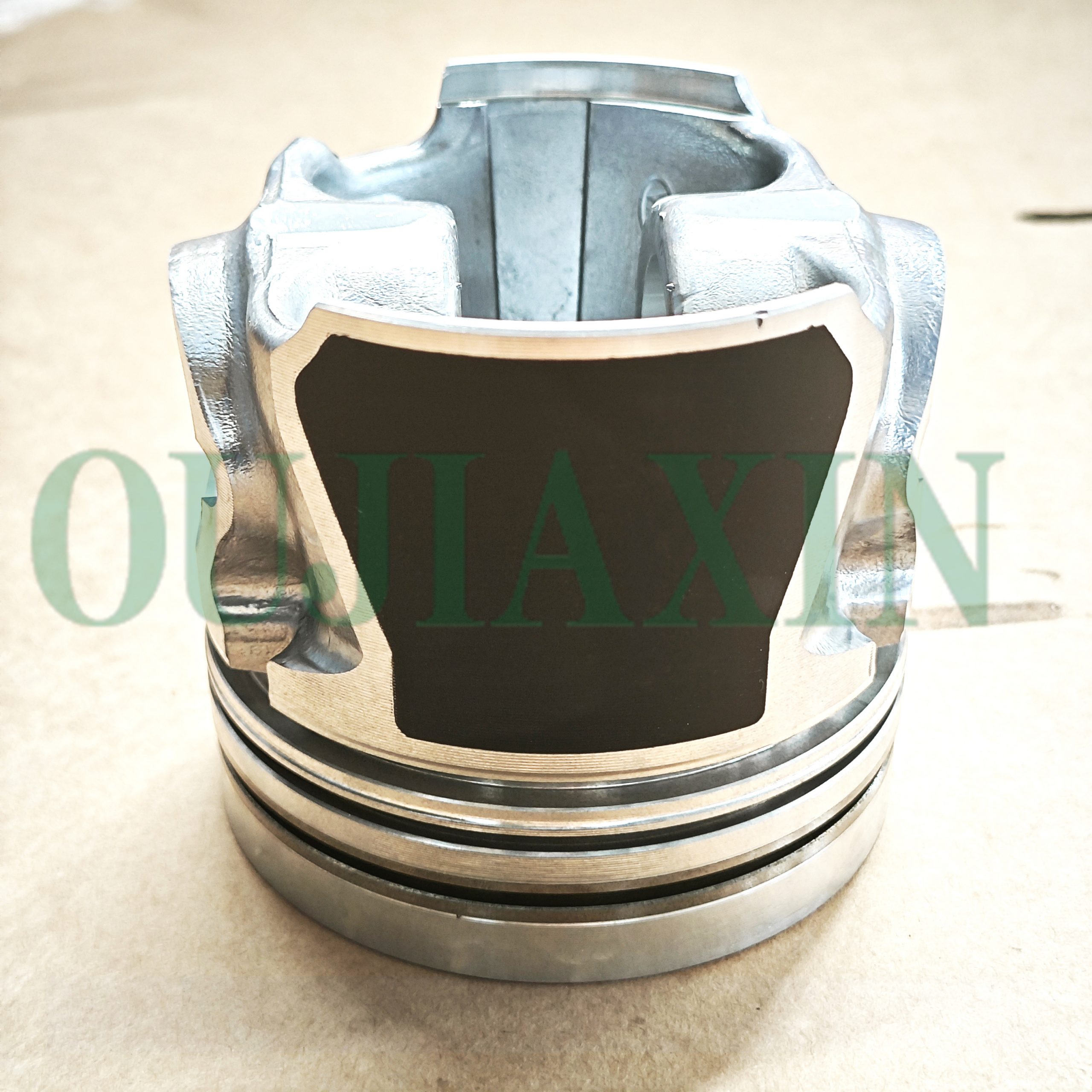

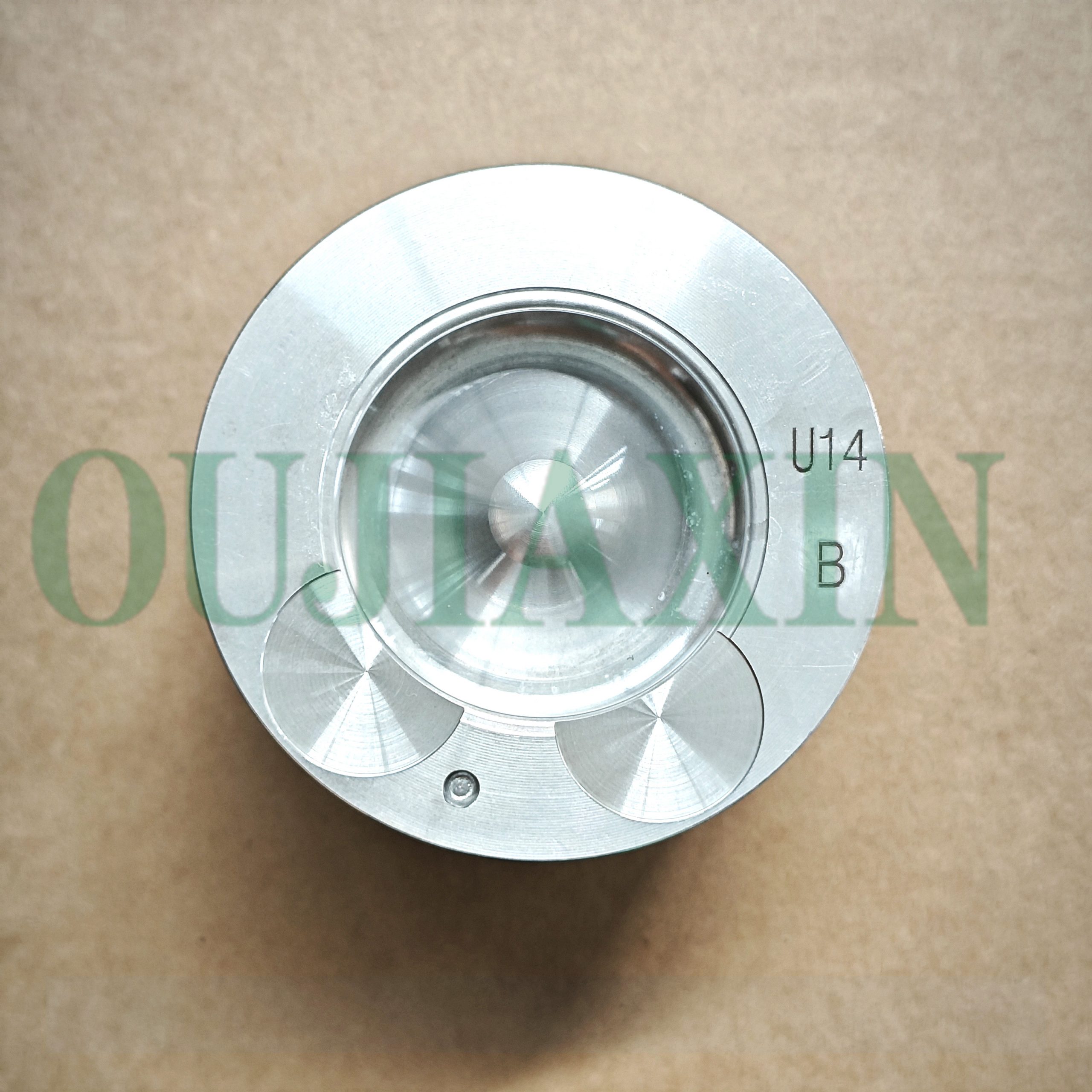

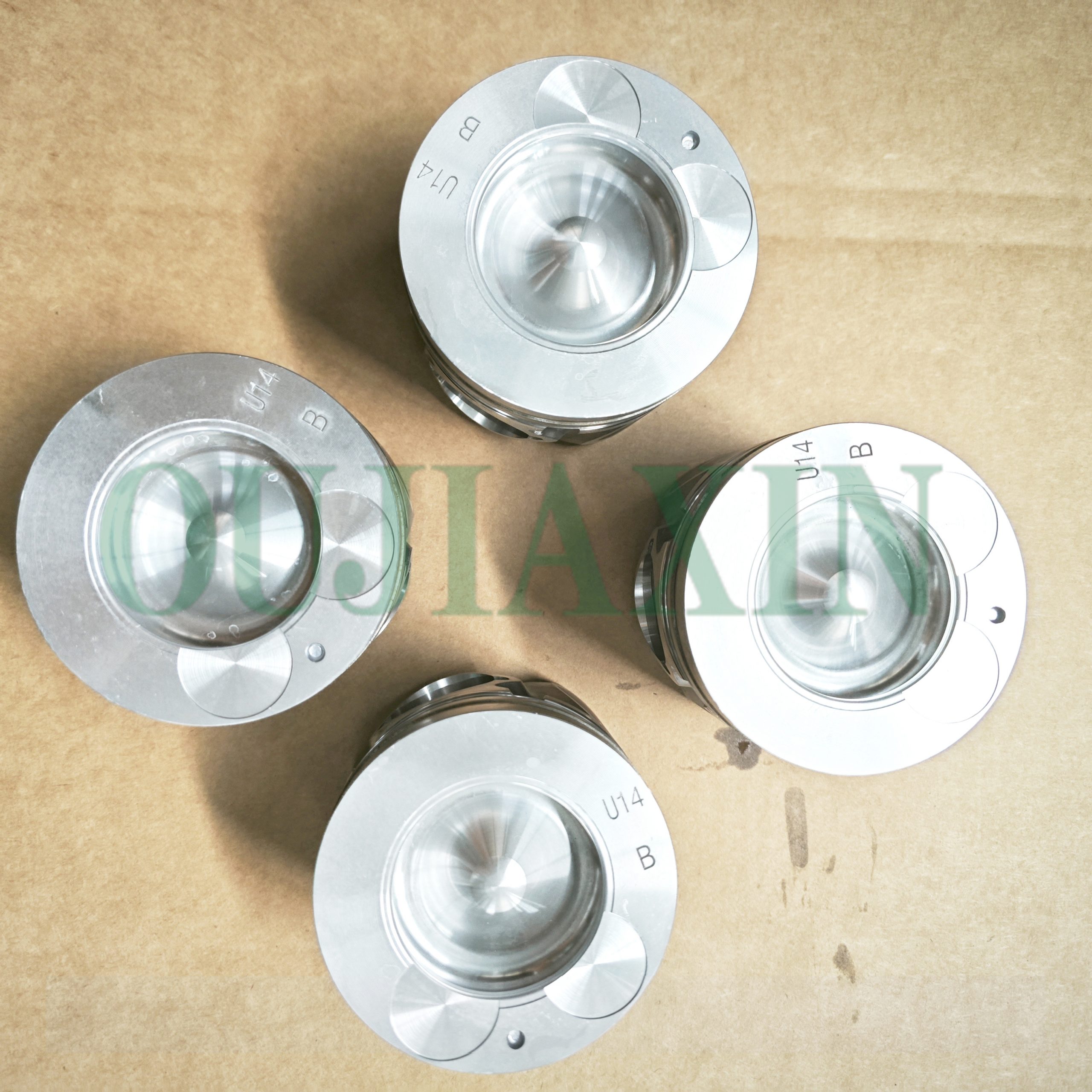

Piston MV for Hyundai i20 i30 ix20 Kia Ceed Pro Cee’d 1.4 CRDi D4FC 75mm STD

The D4FC piston (OEM part number 23410-2A950) is a standard-size (STD) aluminum alloy piston designed for the 1.4L CRDi (U2 series) diesel engines found in Hyundai and Kia models. In the automotive aftermarket, it is widely known as the “U14 piston.”

Category: Tag:

Description

Key Specifications
Engine Type: 1.4L CRDi Diesel Engine (D4FC)
Bore: 75.00 mm
Total Piston Height: 68.40 mm
Compression Height: 44.70 mm
Piston Pin Diameter: 28.00 mm
Piston Pin Length: 62.00 mm

Piston Ring Configuration
1st Ring Groove: 1.75 mm 2nd Ring Groove: 1.75 mm
Oil Ring Groove: 3.00 mm
