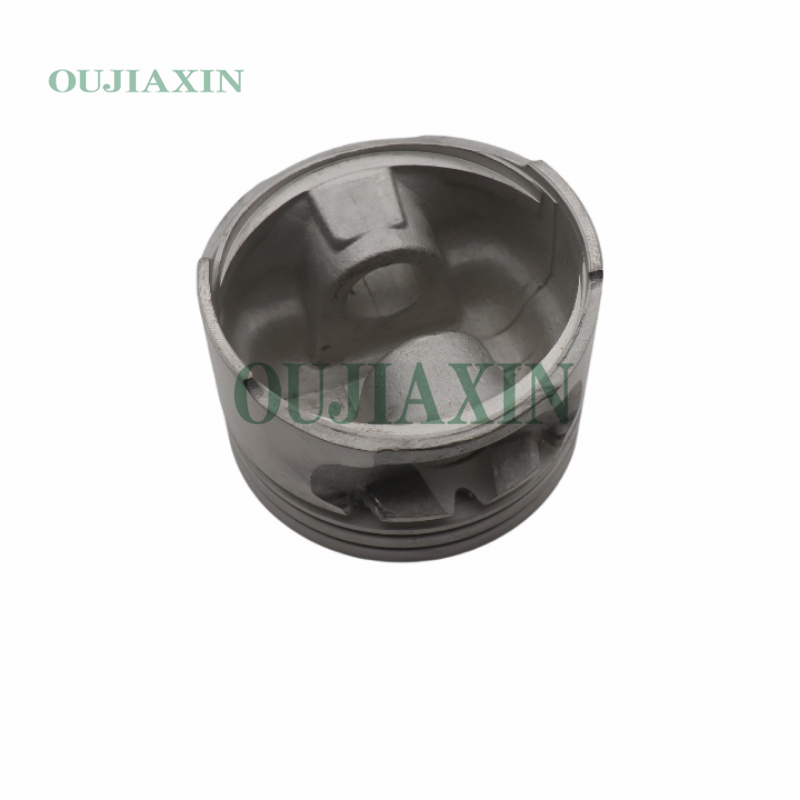

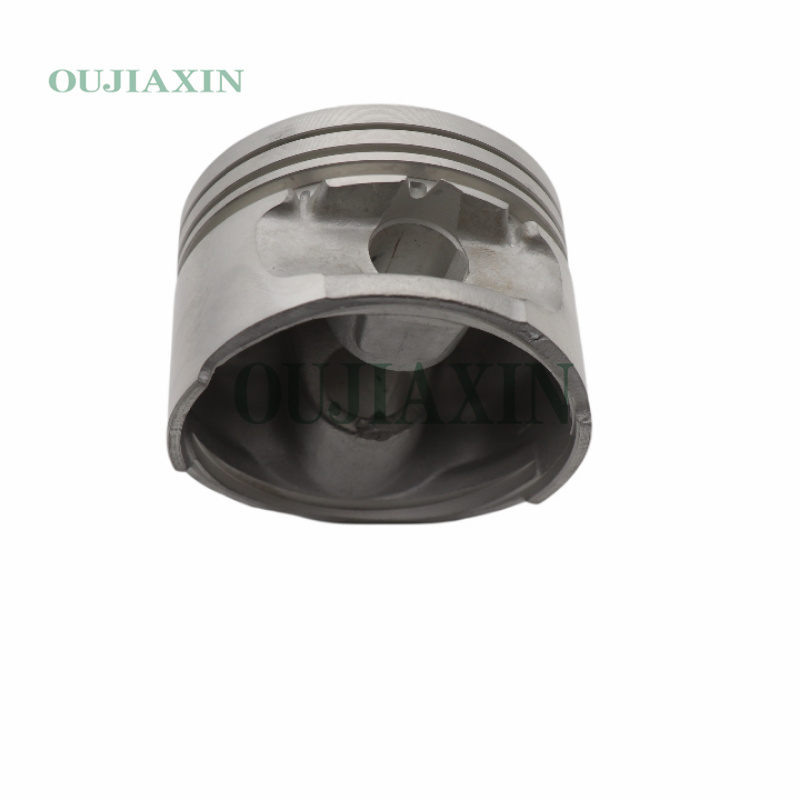

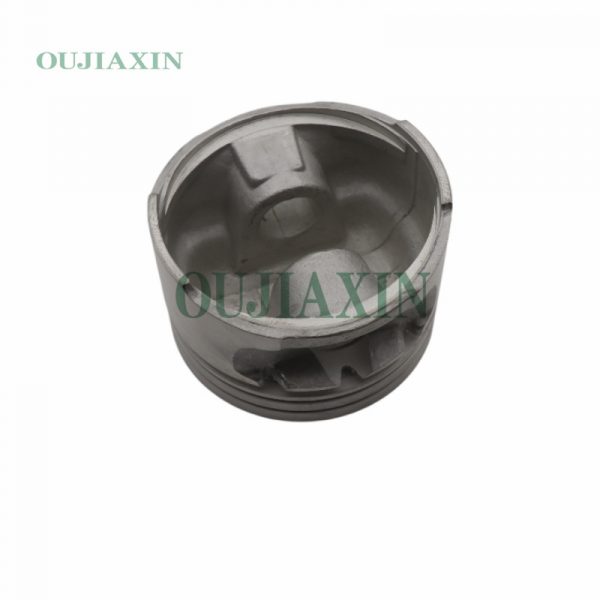

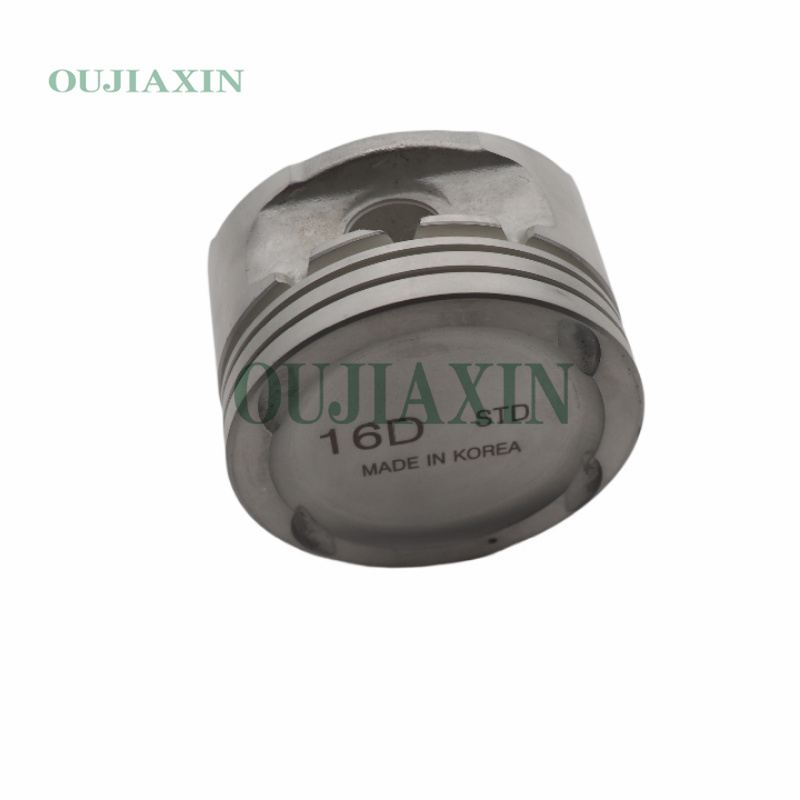

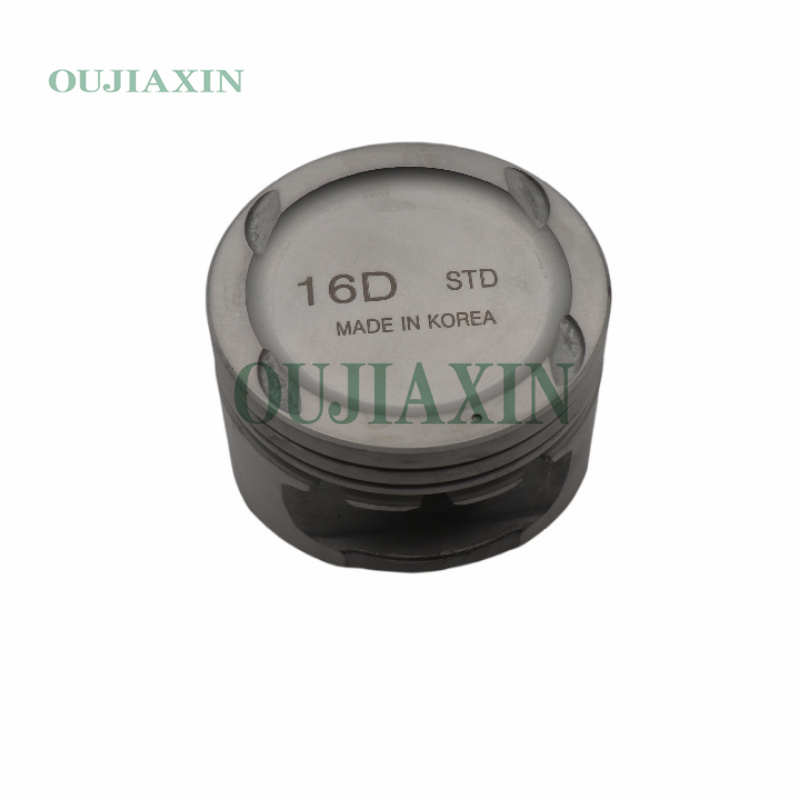

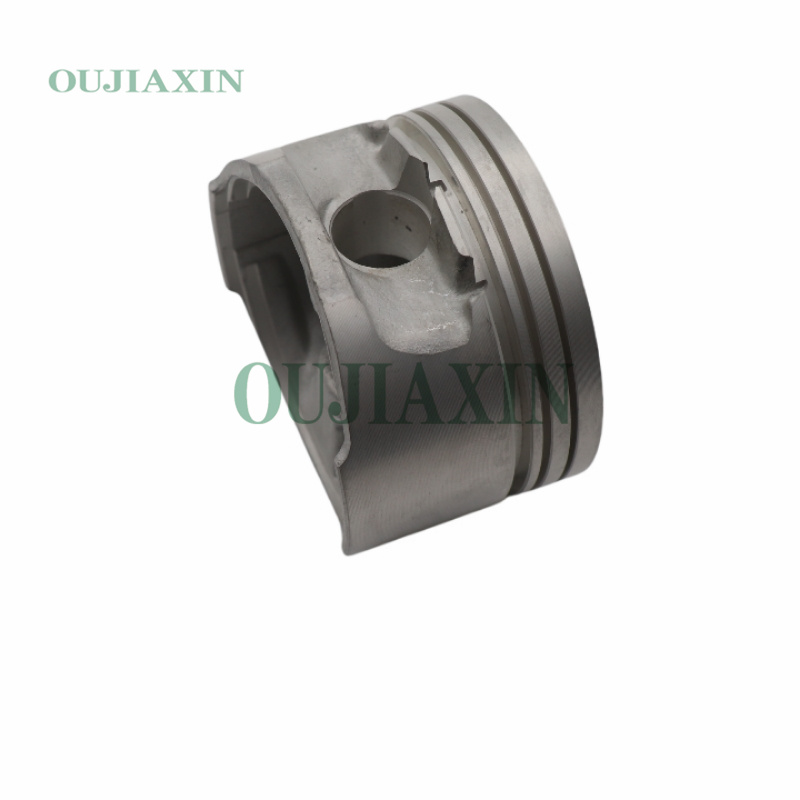

Piston Kit 96182846 for Daewoo A16DM Engine 1.6
The piston assembly for the Daewoo/Chevrolet A16DMS 1.6L DOHC engine features a standard bore ranging from 79.00 mm to 79.5 mm, typically paired with a compression height of 28.3 mm to 28.4 mm and a piston pin diameter of 18 mm. The standard piston ring dimensions utilized in this four-cylinder, 16-valve engine are 1.2 mm / 1.5 mm / 3.0 mm.
Description
A16DMS Piston Assembly Specifications:
Engine Model: 1.6L 4-Cylinder DOHC (16-Valve)
Standard Bore: 79.00 mm
Oversize Options: Typically available in +0.20 mm, +0.40 mm, or +0.50 mm sizes
Compression Height: 28.3 mm – 28.4 mm
Piston Pin Diameter: 18.00 mm
Piston Ring Heights: 1.2 mm (Top Ring), 1.5 mm (Second Ring), 3.0 mm (Oil Ring)
Recess Depth: 3.0 mm
Common Part Number References: 2320, 96182846
