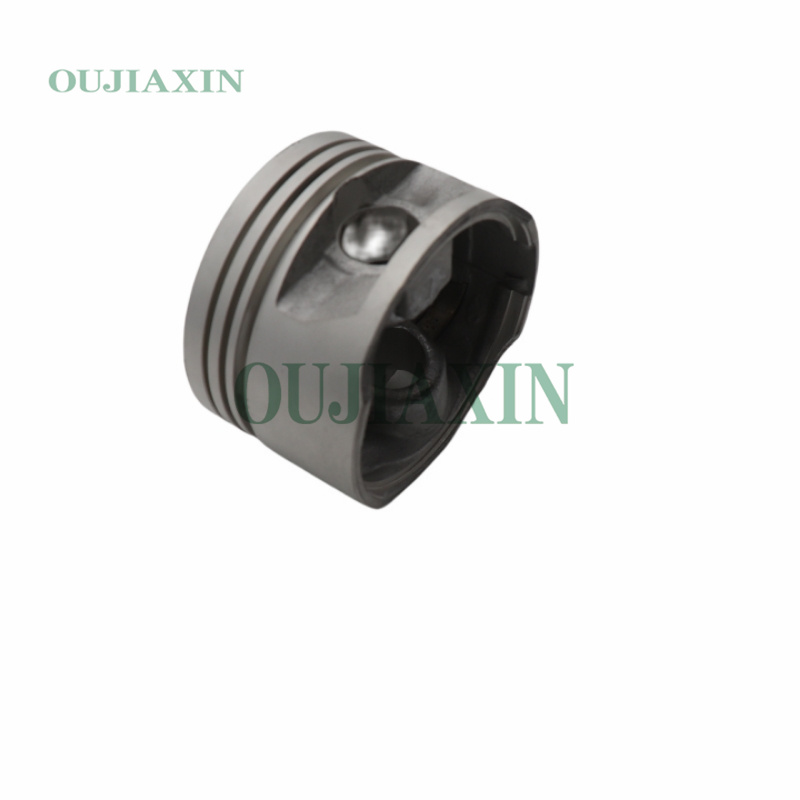

Piston Kit 96143171 for Daewoo G15MF 1.5L Engine

The piston assembly for the Daewoo G15MF 1.5L SOHC engine features a standard bore of 76.50 mm, and the pistons are typically manufactured from aluminum alloy. Its key technical specifications include a compression height of 27.95 mm (-3.35 mm); furthermore, this assembly commonly utilizes the RS4680 piston ring set—or a similar equivalent—with dimensions of 1.5 mm / 1.5 mm / 3 mm.

Category: Tag:

Description

Piston Assembly Key Specifications (G15MF 1.5L SOHC): Engine Model: Daewoo G15MF (1.5L, 4-Cylinder, 8-Valve SOHC)
Bore (Standard): 76.50 mm
Compression Height: 27.95 mm (-3.35 mm)
Material: ZL109 Aluminum Alloy
Piston Ring Dimensions: Typically 1.5 mm / 1.5 mm / 3.0 mm
Piston Ring Type: Cast Iron or Chrome-Plated
Applicable Models: Daewoo Cielo (1995–1998 models), Lanos, Nexia 1.5i; Oversizes: Typically available in +0.020″ (0.50 mm) and +0.040″ (1.00 mm) specifications
