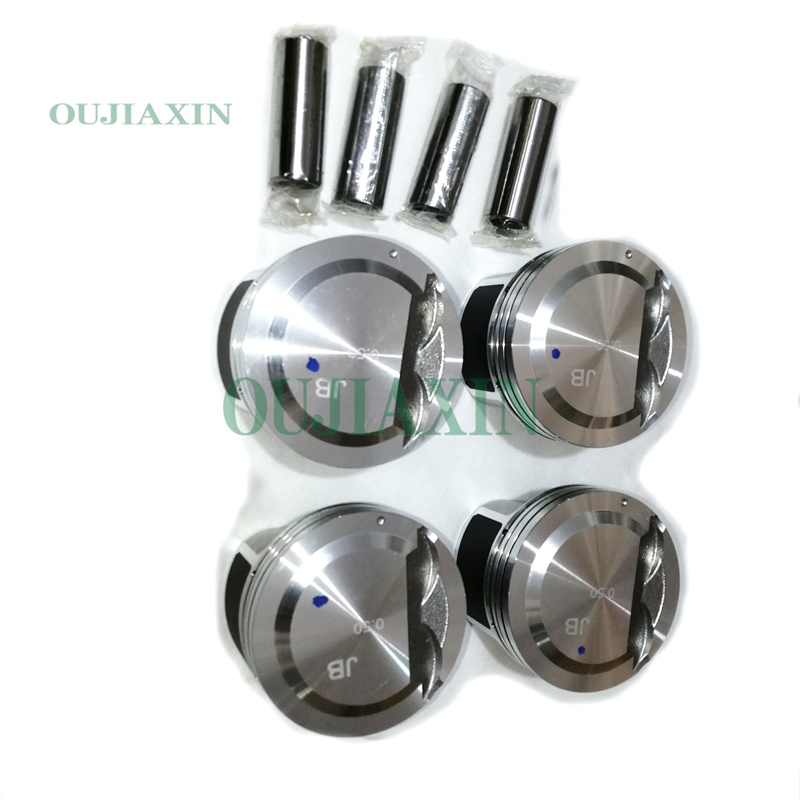

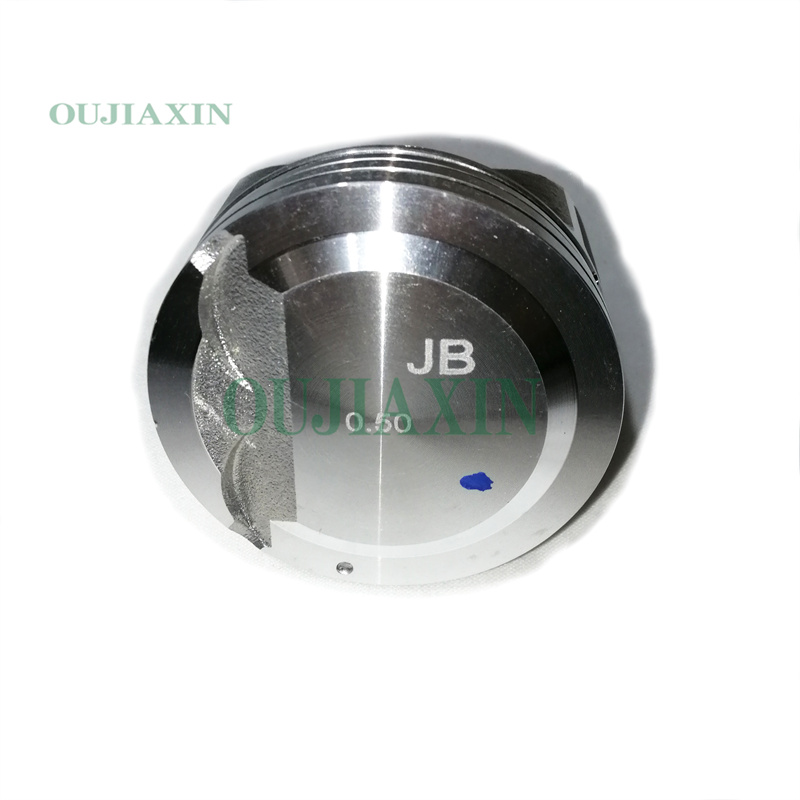

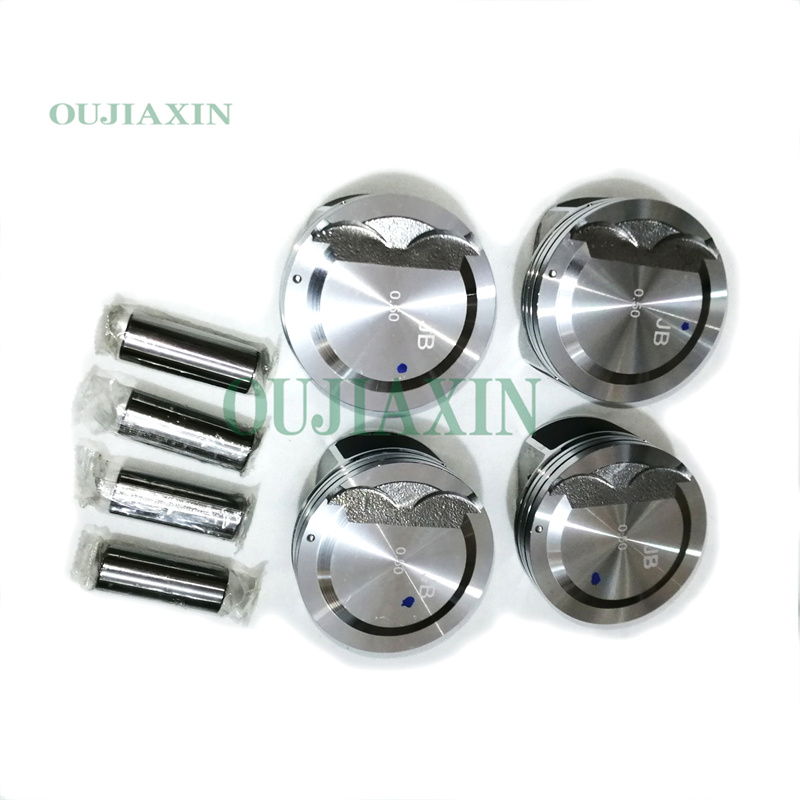

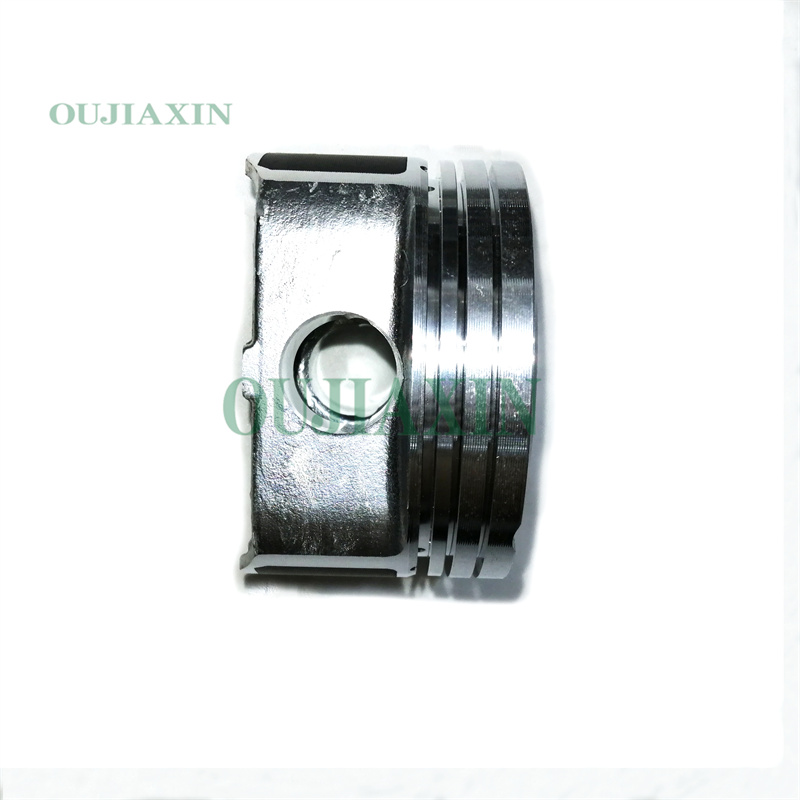

Piston Kit (1.4L, 75.5mm) for Hyundai/Kia Engine G4EE (23410-26410)

Description

The G4EE +0.50mm oversize piston and piston ring kit features the following technical specifications:

Piston specifications: Standard bore: 75.50 mm;
Oversize: +0.50 mm (total 76.00 mm);
Compression height: 28.70 – 28.80 mm;
Pin diameter: 18.00 mm;
Pin length: 46.00 – 48.00 mm;
Piston crown dome/height: 2.20 mm;
Skirt treatment: Typically features a molybdenum disulfide (MoS2) coating to reduce cold-start wear.

Piston Ring Specifications (Piston Ring Set)
Piston ring thickness: 1st ring: 1.20 mm
2nd ring: 1.20 mm
Oil ring: 2.00 mm
