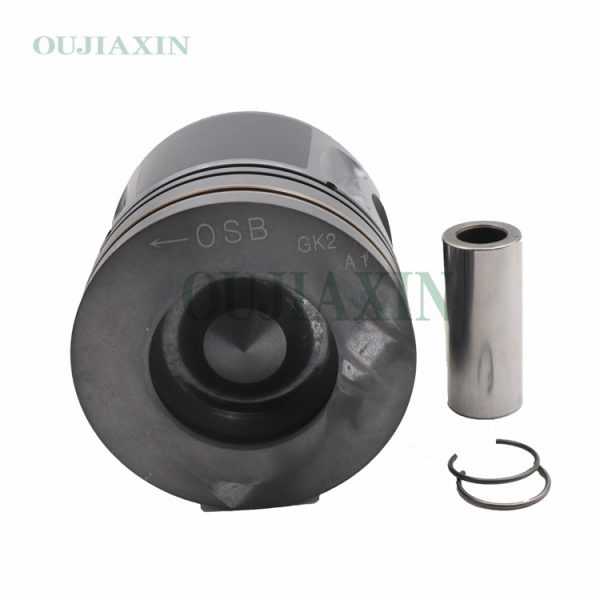

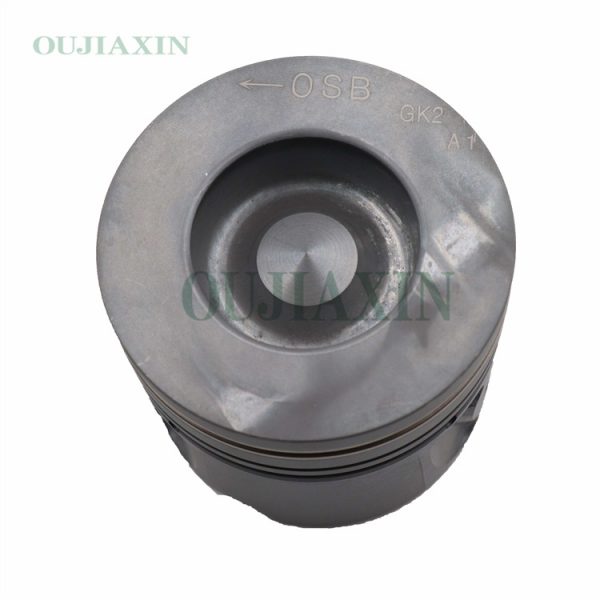

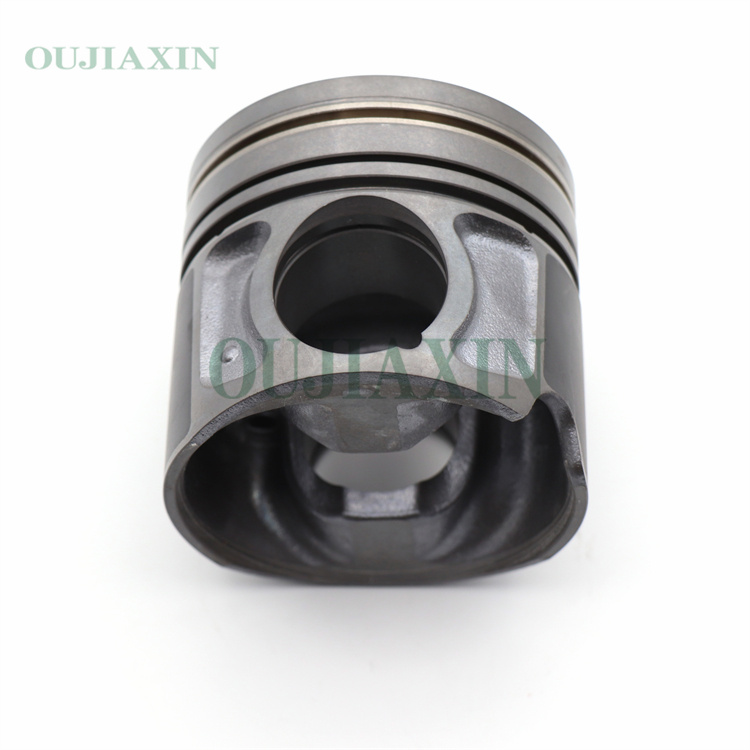

Piston Assembly for Kia D4HA Engine (234102F901)

The standard bore of the piston assembly for the Hyundai D4HA 2.0L diesel engine is 84.00 mm, with a compression height of approximately 48.9 mm. This piston features an Alfin-type design with a bowl depth of 15.7 mm and utilizes a piston pin with a diameter of approximately 34 mm. The piston ring set used in this assembly has typical thicknesses of 2.43 mm (top ring), 2.0 mm (second ring), and 3.0 mm (oil ring).
