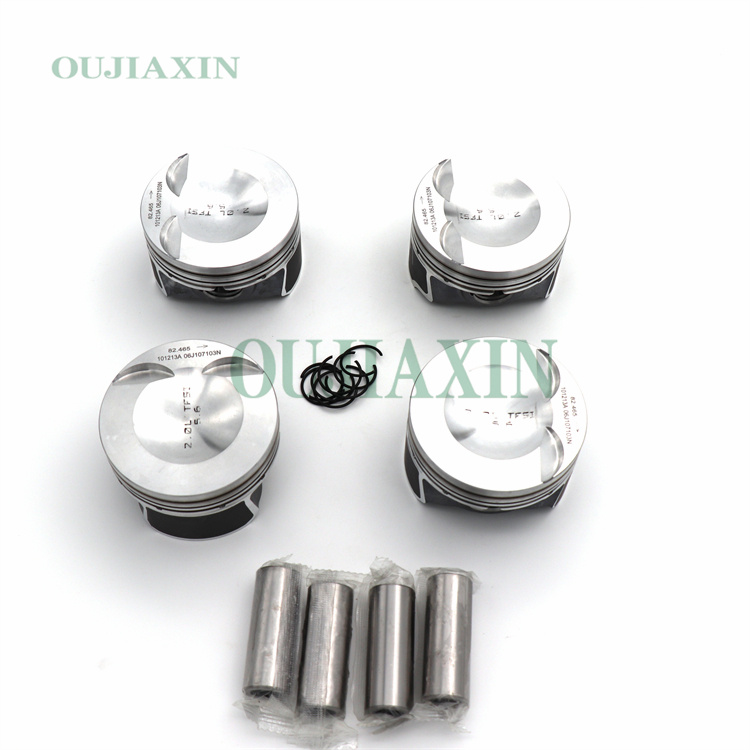

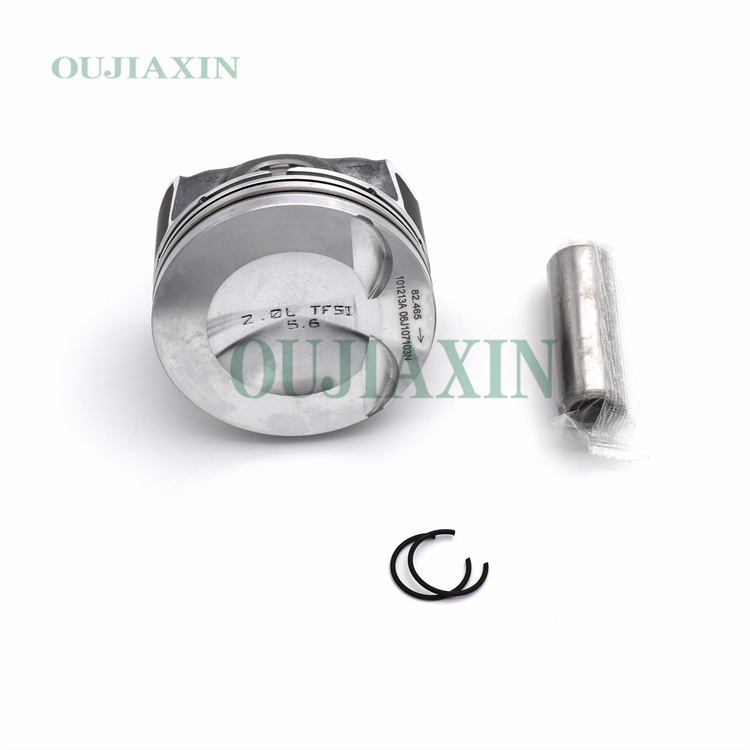

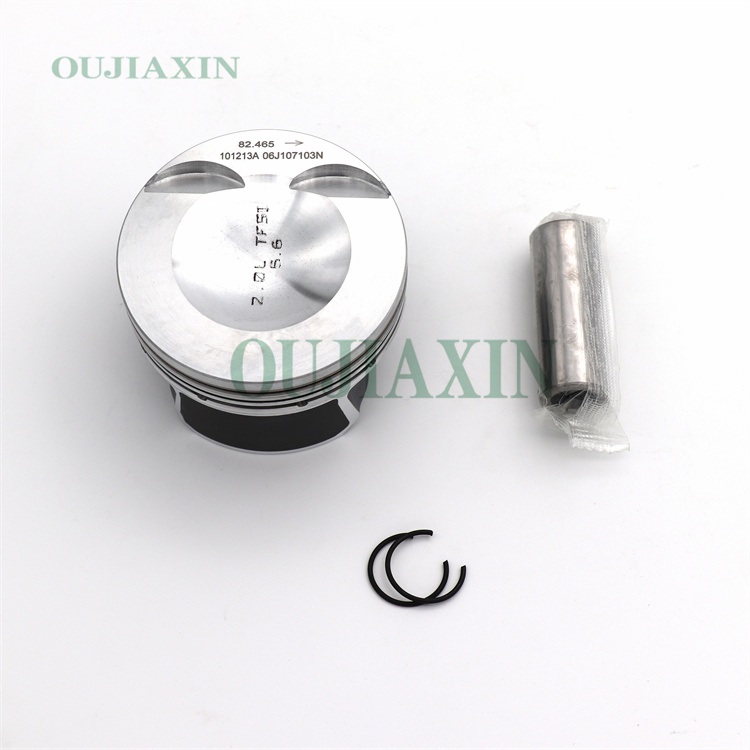

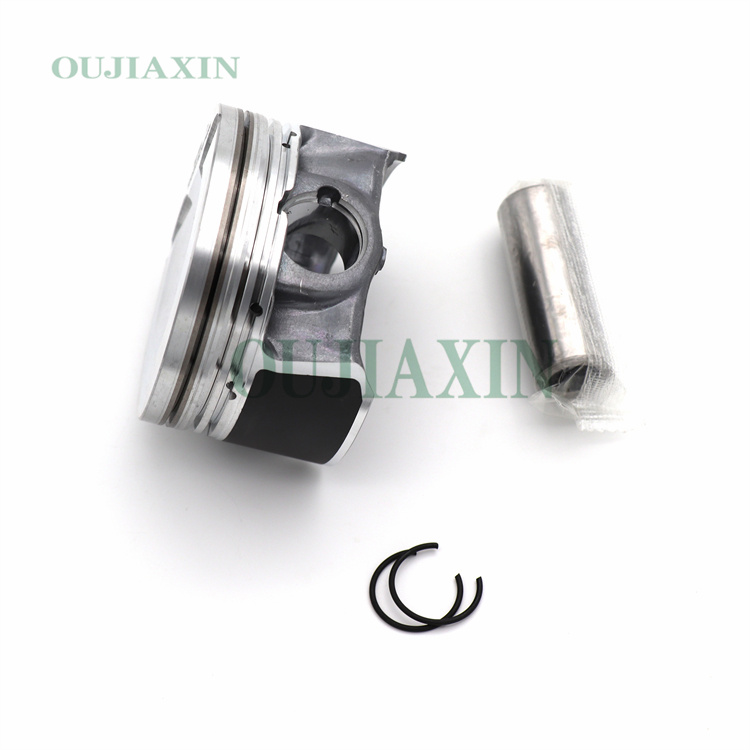

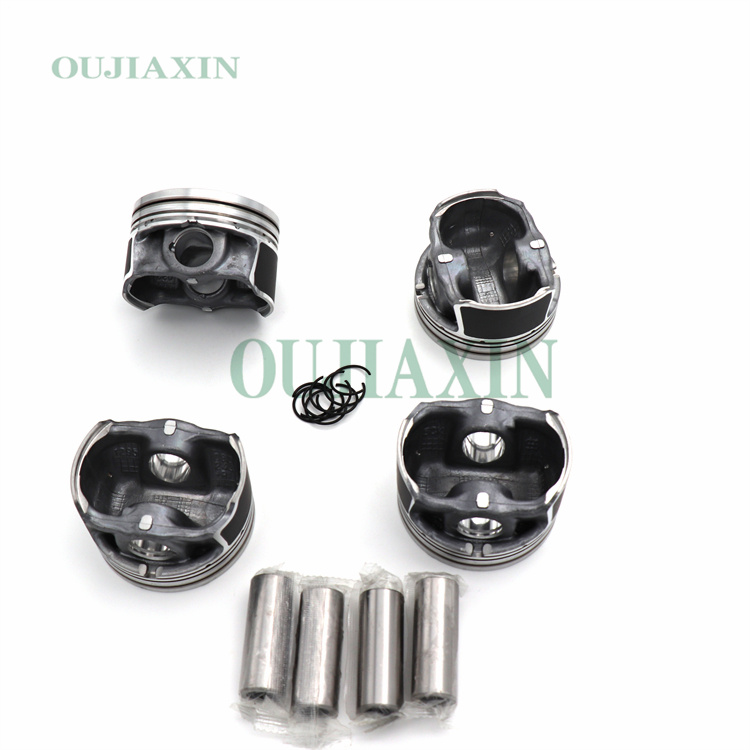

Piston Assembly 06H107099AM — Compatible with Volkswagen Jetta; Audi Q5, A5, A4, A3 (2.0T)

The piston assembly suitable for Audi Q5 2.0T (CAEB/CDNC) models features typical specifications including: a standard bore of 82.51 mm (commonly designated as 82.5 mm), a piston pin diameter of 23 mm, and standard compression rings with dimensions of 1.2 mm, 1.5 mm, and 2.0 mm, respectively.

Category: Tag:

Description

Engine Codes: CAEB, CDNC, CDNB, CPMA, CPMB (2nd Generation EA888)
Bore Size: The standard size is 82.51 mm (nominal size: 82.5 mm).
Piston Pin Diameter: For pistons upgraded to address oil consumption issues, the standard diameter is 23 mm; however, earlier models sometimes utilized a 21 mm specification.
Piston Ring Dimensions: Typically 1.2 mm × 1.5 mm × 2.0 mm.
Common Part Numbers: 06H 107 065 DM, 06H 107 065 DN, 06H107099AM.
