Piston assemblies for Mercedes-Benz CE-Class 1.8L M271.820 M271.860 861 STD

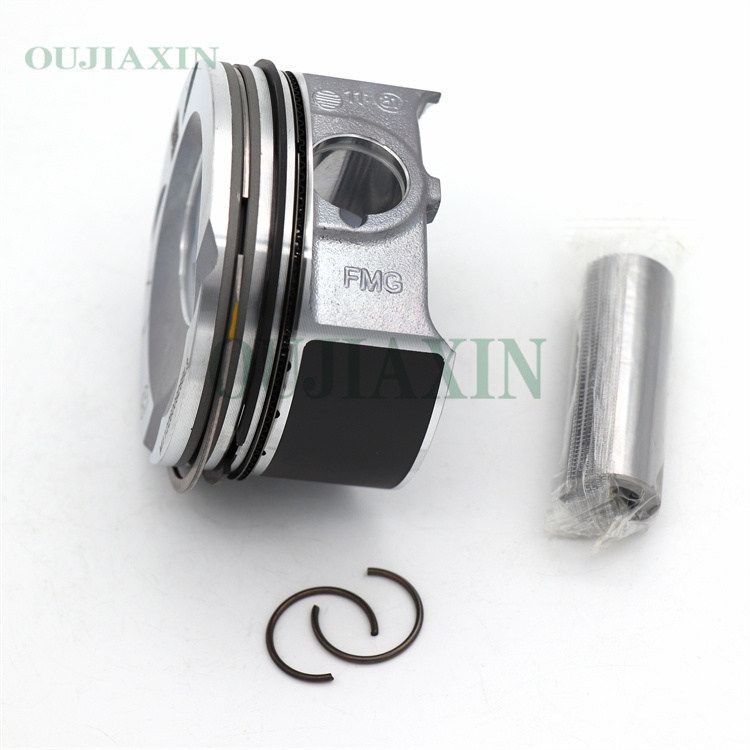

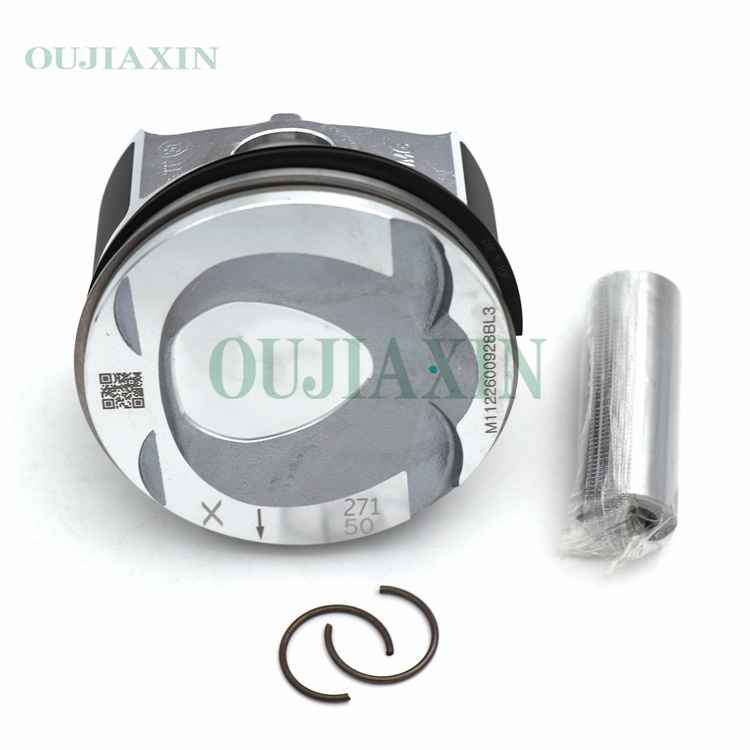

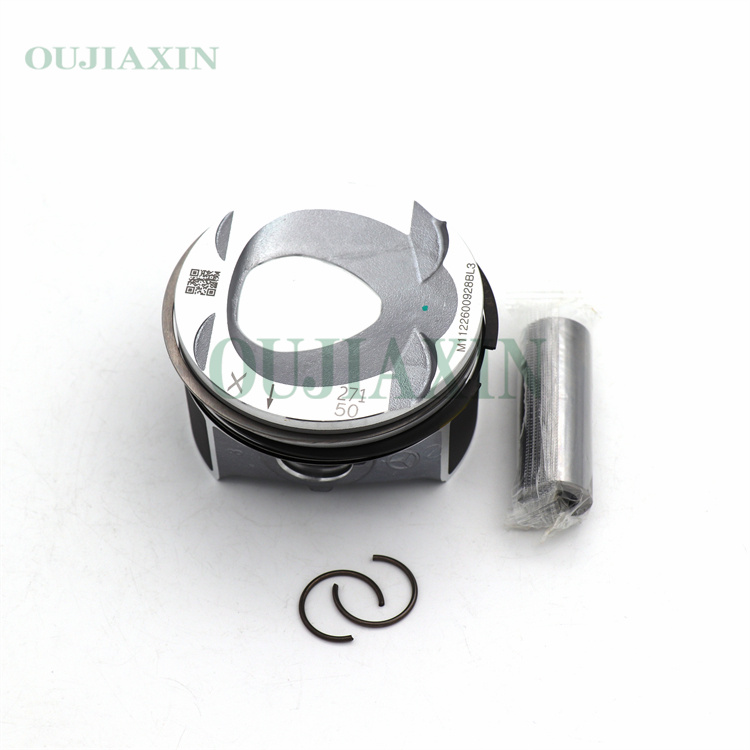

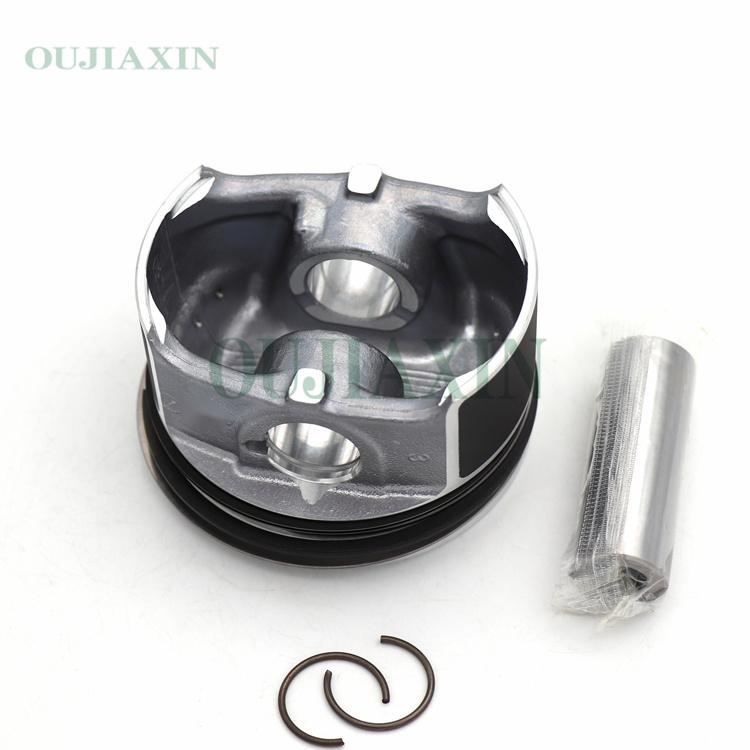

An STD (Standard Specification) piston kit designed specifically for Mercedes-Benz M271.820 and M271.860 1.8L CGI engines. It is suitable for cylinders with an 82.00mm bore, features a 20mm piston pin diameter, and utilizes piston rings with thickness specifications of 1.2mm, 1.5mm, and 2.0mm. This type of kit typically includes the pistons, piston rings, and piston pins.
Description
Main Specifications (M271.820 / M271.860):
Engine Model: M271.820, M271.860 (1.8L CGI Turbocharged)
Cylinder Bore: 82.00 mm (Standard Size)
Piston Pin Diameter: 20 mm
Piston Pin Length: 56 mm
Compression Height: 30 mm
Piston Ring Thickness: 1.2 mm / 1.5 mm / 2.0 mm
Valve Recess Depth: -3.4 mm and 0.6 mm
Recess Diameter: -60.3 mm
Common OEM Part Numbers and Compatibility:
OEM Part Numbers: A2710305117, A2710305017, A2710306317.
Applicable Models: Mercedes-Benz C-Class (W204, C204), E-Class (W212, C207), and SLK (R172) 200/250 CGI models.
