Piston for Toyota Camry V5 2.0L 6AR Engine

Piston 13251-0H040-C0 for Toyota Camry V5 2.0L (6AR Engine)

The Toyota 6AR-FSE (2.0L) Standard (STD) piston assembly typically features an 86.0 mm bore and is designed specifically for the 4-cylinder AR-series engines (2014 models and later). This assembly—which typically corresponds to OEM part numbers 13101-0V080 or 13211-0V080—is manufactured from ZL109 aluminum alloy and features a compression ratio of 10.0:1 with an 86 mm piston stroke; the product is sold as a sub-assembly that includes both the piston pin and piston rings.

Description

6AR Standard Piston Assembly Specifications:
Engine Code: 6AR-FSE.
Engine Type: 4-cylinder, 4-stroke, gasoline engine (2.0L).
Bore: 86.0 mm (Standard Size).
Piston Stroke: 86.0 mm.
Material: Aluminum alloy (typically designated as ZL109).
Compression Ratio: 10.0:1.

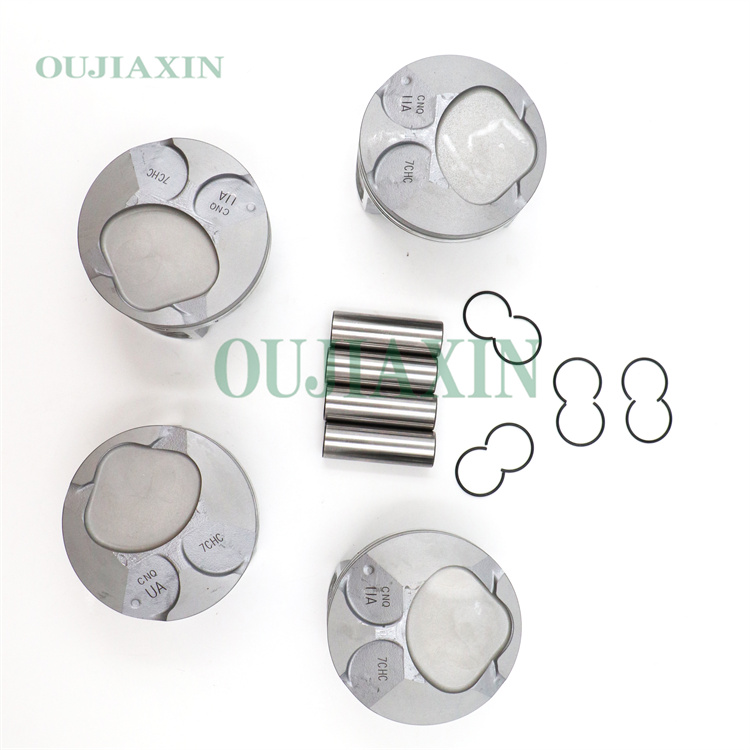

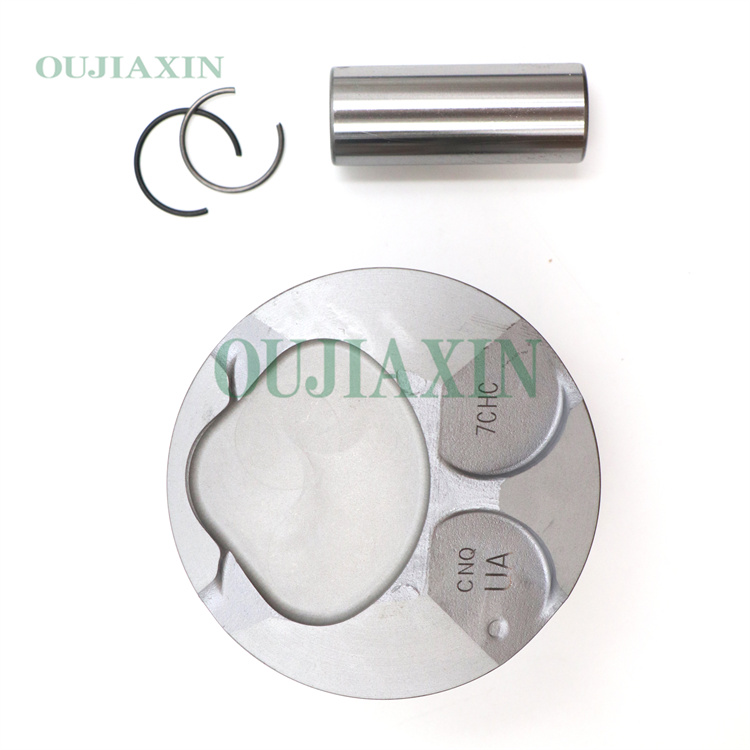

Assembly Contents: Piston, piston pin; typically also includes the piston ring set.
Applicable Engines: 6AR-FSE (2.0L), 6AR-FSE-CN (China Market Version).
Compatibility: Commonly found in the GAC Toyota Camry 2.0L and other vehicle models equipped with the 6AR-FSE engine.
