Isuzu 4ZD1 crankshaft
Isuzu 4ZD1 crankshaft
  1. Isuzu 4ZD1 crankshaft
  2. Isuzu 4ZD1 crankshaft

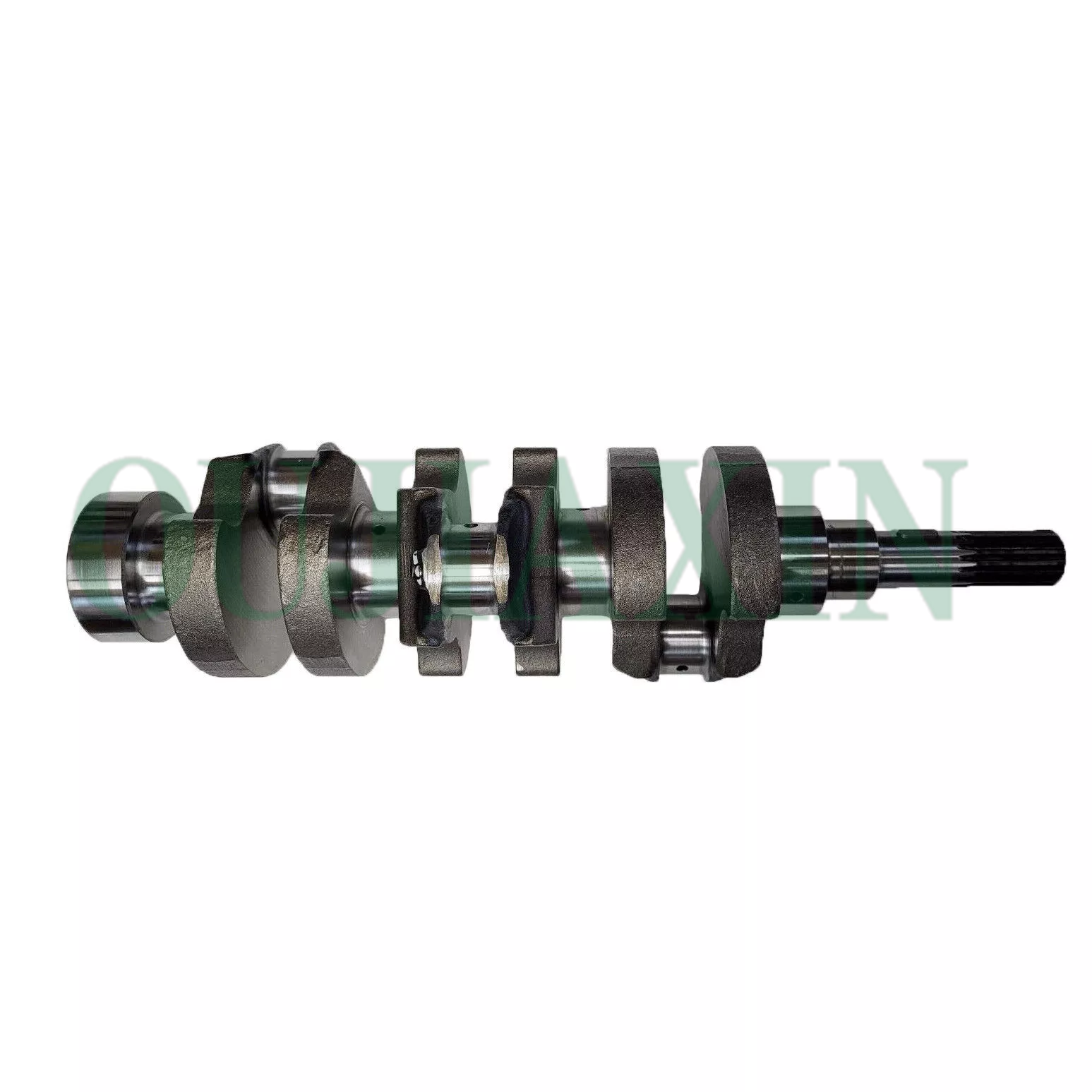

New Crankshaft 8-94136-164-0 894136164 Compatible with Isuzu 4ZD1

The Isuzu 4ZD1 2.3L engine crankshaft has a stroke of 90 mm, a main journal diameter of 56 mm, a connecting rod journal diameter of 49 mm, and 8 flywheel bolt holes. Key specifications include: axial clearance of 0.004–0.010 inches (0.10–0.25 mm), main bearing clearance of 0.0008–0.0024 inches (0.02–0.06 mm), and flywheel bolt torque of 72–79 ft-lbs (98–107 Nm).

Category: Tag:

Description

Isuzu 4ZD1 Engine Crankshaft Main Specifications:

Stroke: 90 mm

Main Journal Diameter: 56 mm

Connecting Rod Journal Diameter: 49 mm

Rear Oil Seal Diameter: 95 mm

Front Oil Seal Diameter: 40 mm

Overall Length: 507 mm

Flywheel Hole Count: 8

Crankshaft Axial Clearance: 0.10–0.25 mm (0.004–0.010 inches)

Main Bearing Clearance: 0.02–0.06 mm (0.0008–0.0024 inches)

Flywheel Bolt Torque: 98–107 Nm (72–79 ft-lbs)

Engine Type: 4-cylinder, 8-valve, 2260 ml
