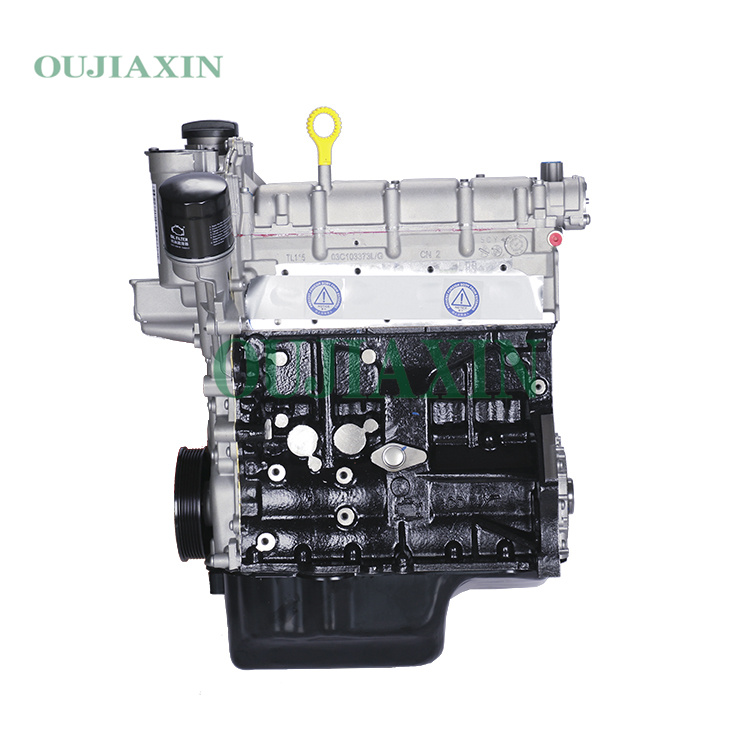

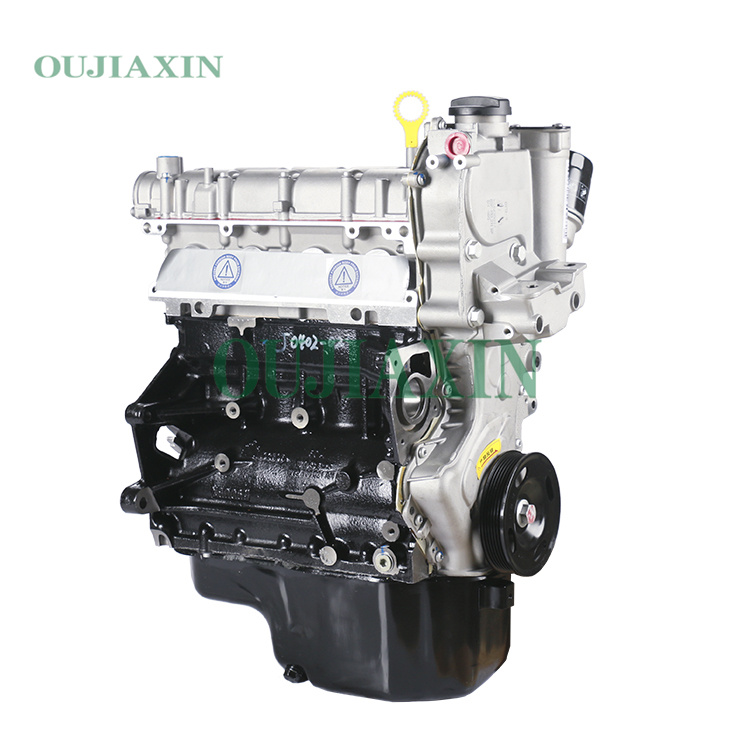

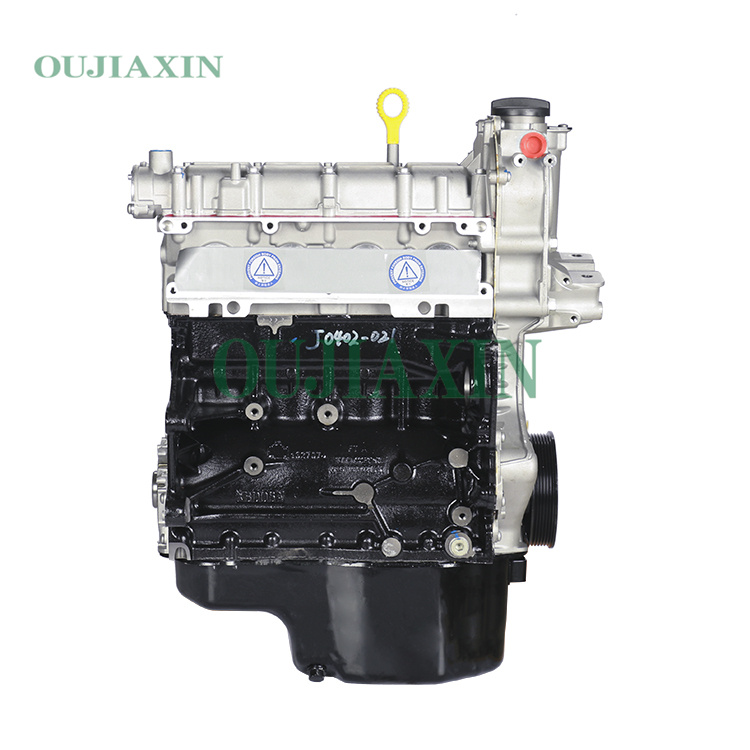

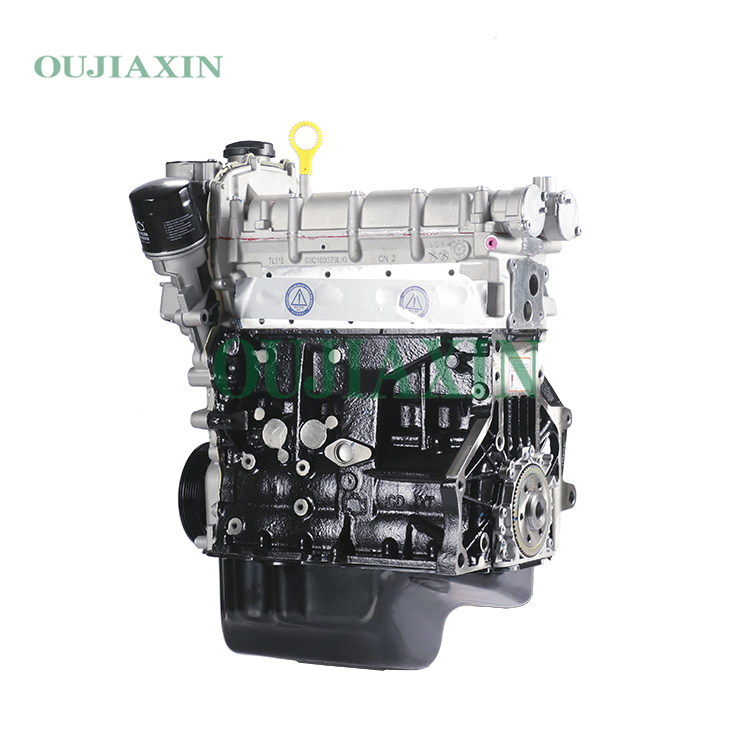

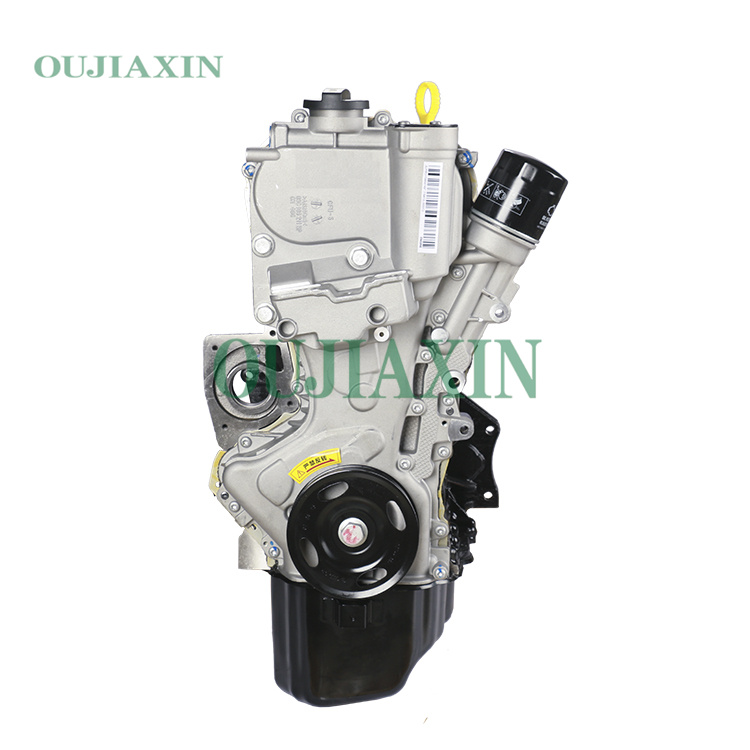

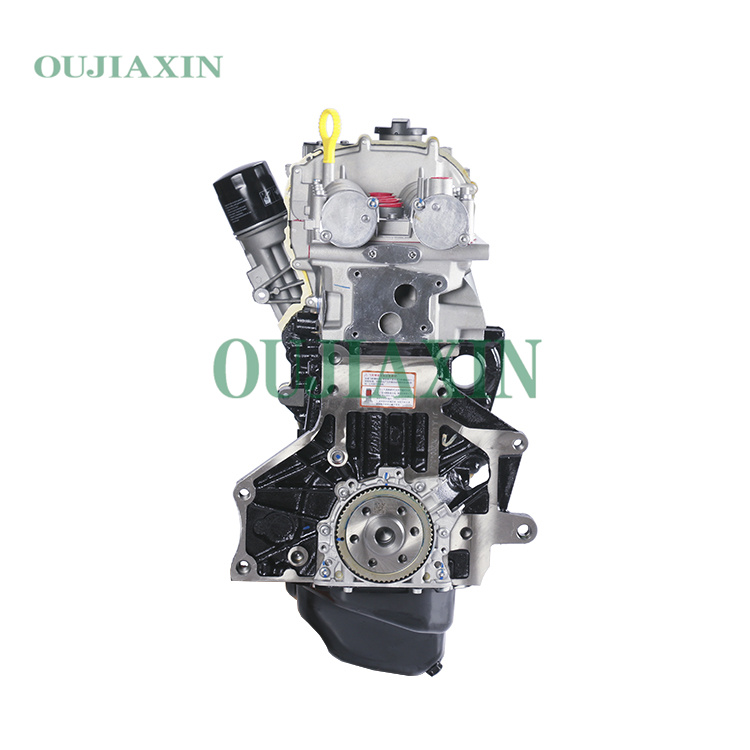

Long Engine Block Assembly For Volkswagen Jetta Bora Golf Tiguan EA111 1.4L 1.6L (For: Volkswagen 1.6L)
The Volkswagen EA111 1.6L engine is a four-cylinder, naturally aspirated gasoline engine (utilizing MPI or FSI technology) commonly found in models such as the Polo, Golf, and Jetta. This engine features a cast-iron cylinder block, an aluminum alloy cylinder head, and a 16-valve design; its maximum power output is approximately 77–81 kW (103–110 hp), with a peak torque of approximately 153 N·m. The compression ratio is 10.5:1.
Description
EA111 1.6L Engine Key Specifications (e.g., 16-Valve CFN / Common Models):
Engine Code: EA111 / CFNA (Common 16-valve model)
Displacement: 1598 cc / 1.6 Liters
Configuration: Inline-4, Naturally Aspirated
Valve Mechanism: DOHC (Dual Overhead Camshaft), 16-valve
Fuel System: Multi-Point Injection (MPI) or FSI
Block Material: Cast Iron
Cylinder Head Material: Aluminum Alloy
Max Power: Approx. 81 kW (105–110 hp) at 5600–6000 rpm
Max Torque: Approx. 153–155 N·m at 3500–4000 rpm
Valvetrain Drive: Timing Chain
Compression Ratio: 10.5:1
