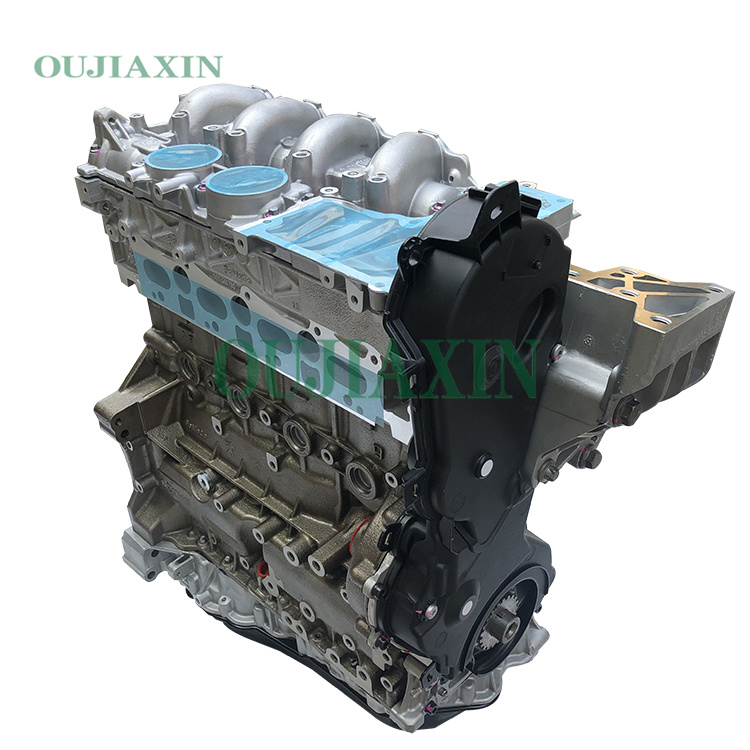

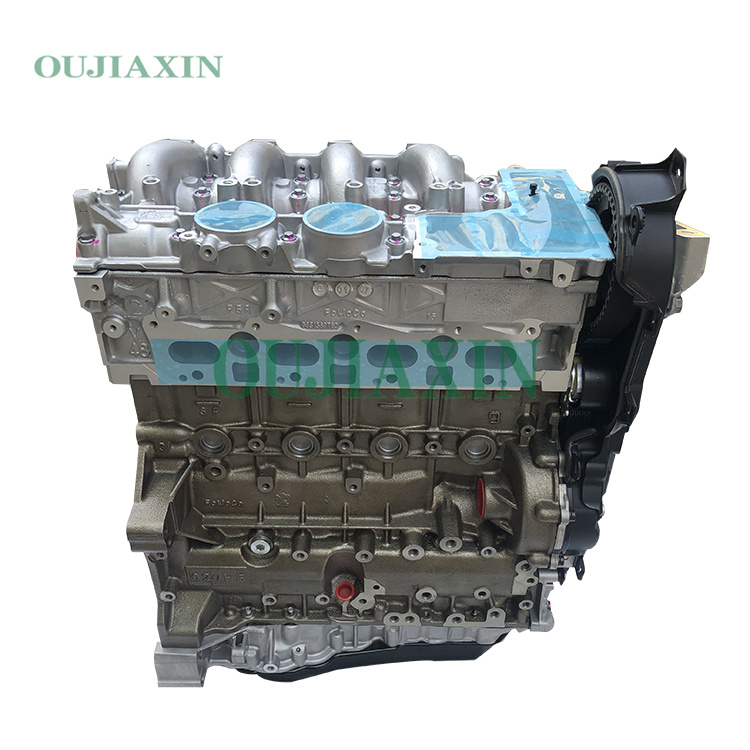

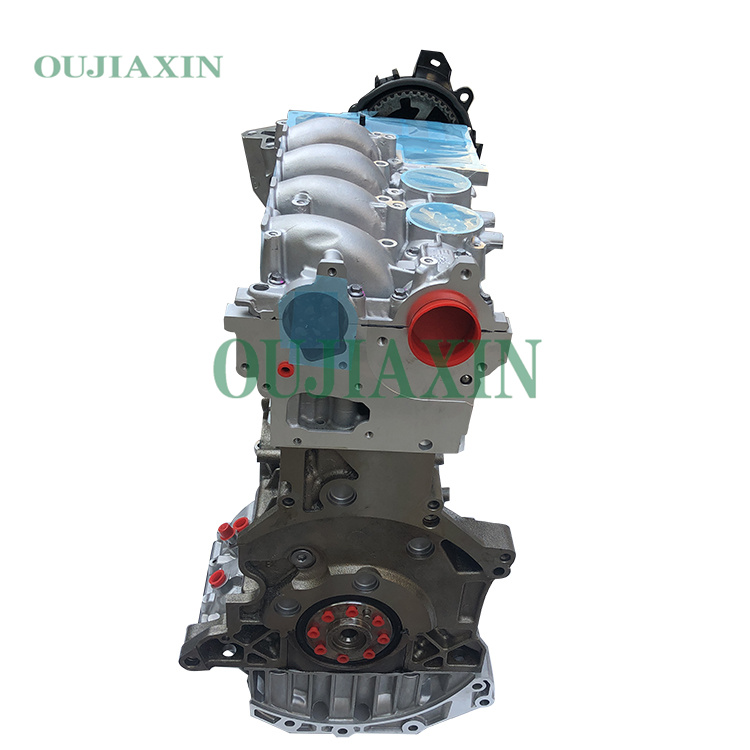

Long Block Engine Assy For 05-16 Land Rover DISCOVERY 224DT 2.2T 4×4 Cylinder (For: Land Rover 2.2L)

The Land Rover 224DT is a 2.2-liter (2,179 cc) inline-four turbocharged diesel engine produced between 2006 and 2016. Renowned for its durability, the engine features a construction comprising a cast-iron block and an aluminum alloy cylinder head, with a compression ratio of 16.6:1. Its power output typically ranges from 150 to 190 horsepower (110 to 140 kW), with a peak torque of 400 to 420 Nm.

Category: Tag:

Description

Key Technical Specifications
Engine Code: 224DT (Commonly used in TD4 and SD4 models)
Displacement: 2.2 Liters (2179 cm³)
Cylinder Configuration: Inline-4
Fuel Type: Diesel (Direct Injection)
Power Output: 150 hp (110 kW) to 190 hp (140 kW)
Torque: 400–420 Nm  2000 rpm
Bore / Stroke: 85 mm / 96 mm
Valve Train: 16-Valve (DOHC)
Emission Standard: Euro 5

Key Features and Applications
Structure: Cast iron cylinder block, aluminum alloy cylinder head
Common Applications: Land Rover Freelander 2 (TD4), Range Rover Evoque (SD4), Discovery Sport (TD4)
