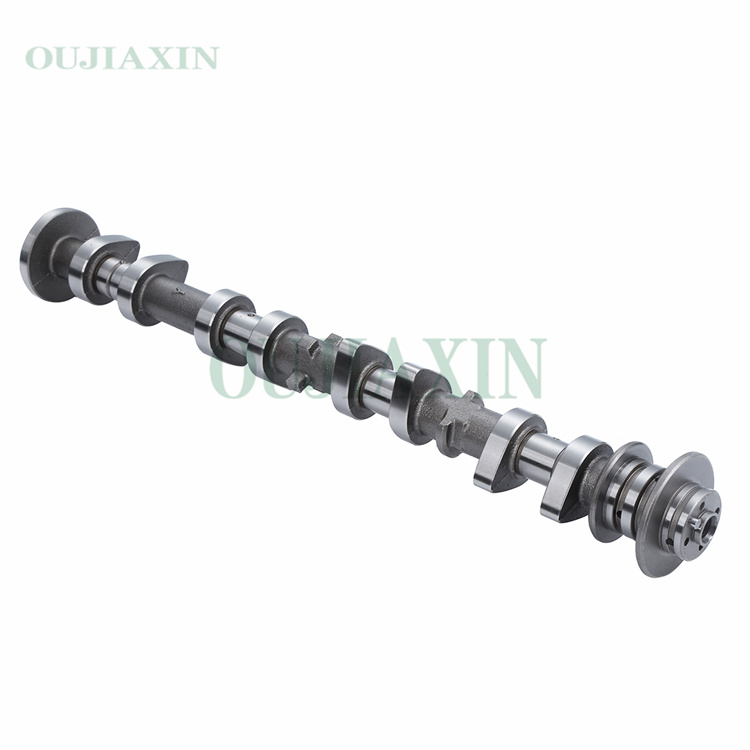

Intake Camshaft 13501-28060 for Toyota/Lexus 2AZ-FE/FSE 2.4L Engines

Description

Profile Specifications
Cam Lobe Height: Standard value is 47.306 to 47.406 mm (1.8624 to 1.8664 in); minimum service limit is 47.196 mm (1.8581 in).
Base Circle Runout: 0.03 mm (0.0012 in).
Duration: 236° (pre-2006 models) and 248° (2006 and later upgraded engine versions).
Valve Lift (Nominal): Varies depending on specific aftermarket modifications or original factory design; typically 9.35 mm (0.368 in).

Journal and Clearance Specifications
Journal No. 1 Diameter: 35.971 to 35.985 mm (1.4162 to 1.4167 in).
Other Journals (Nos. 2 to 5): 22.959 to 22.975 mm (0.9039 to 0.9045 in).
Journal Oil Clearance: Standard value: 0.007 to 0.038 mm (0.0003 to 0.0015 in); Maximum value: 0.07 mm (0.0028 in).
Standard Intake Valve Clearance (Cold): 0.19 to 0.29 mm (0.0075 to 0.0114 in).
