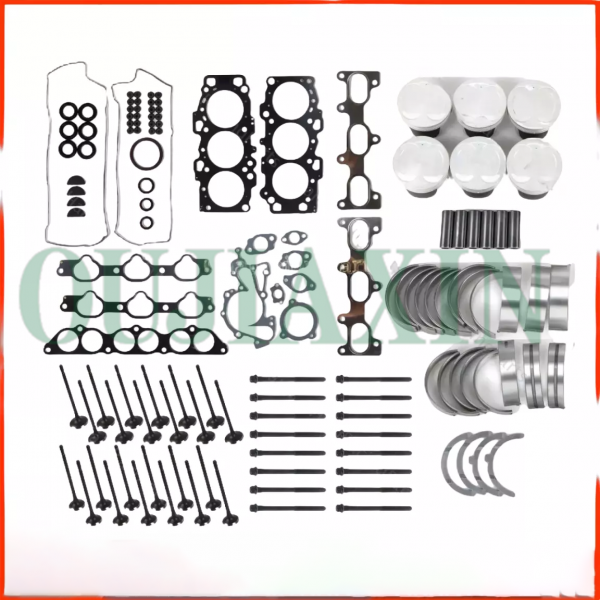

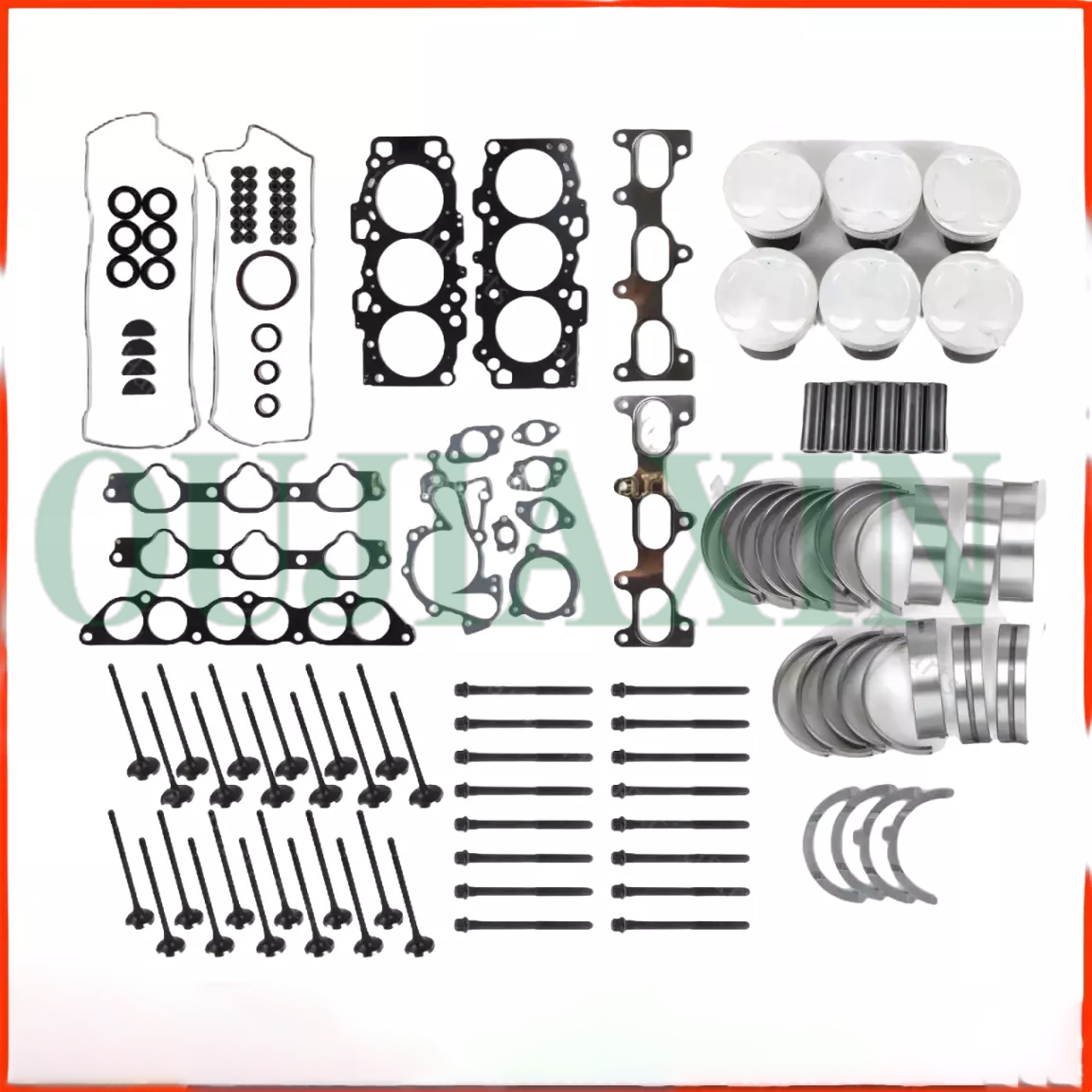

G6BA 2.7L Engine Rebuild Overhaul Kit For HYUNDAI KIA Piston / Gasket/ Bearings

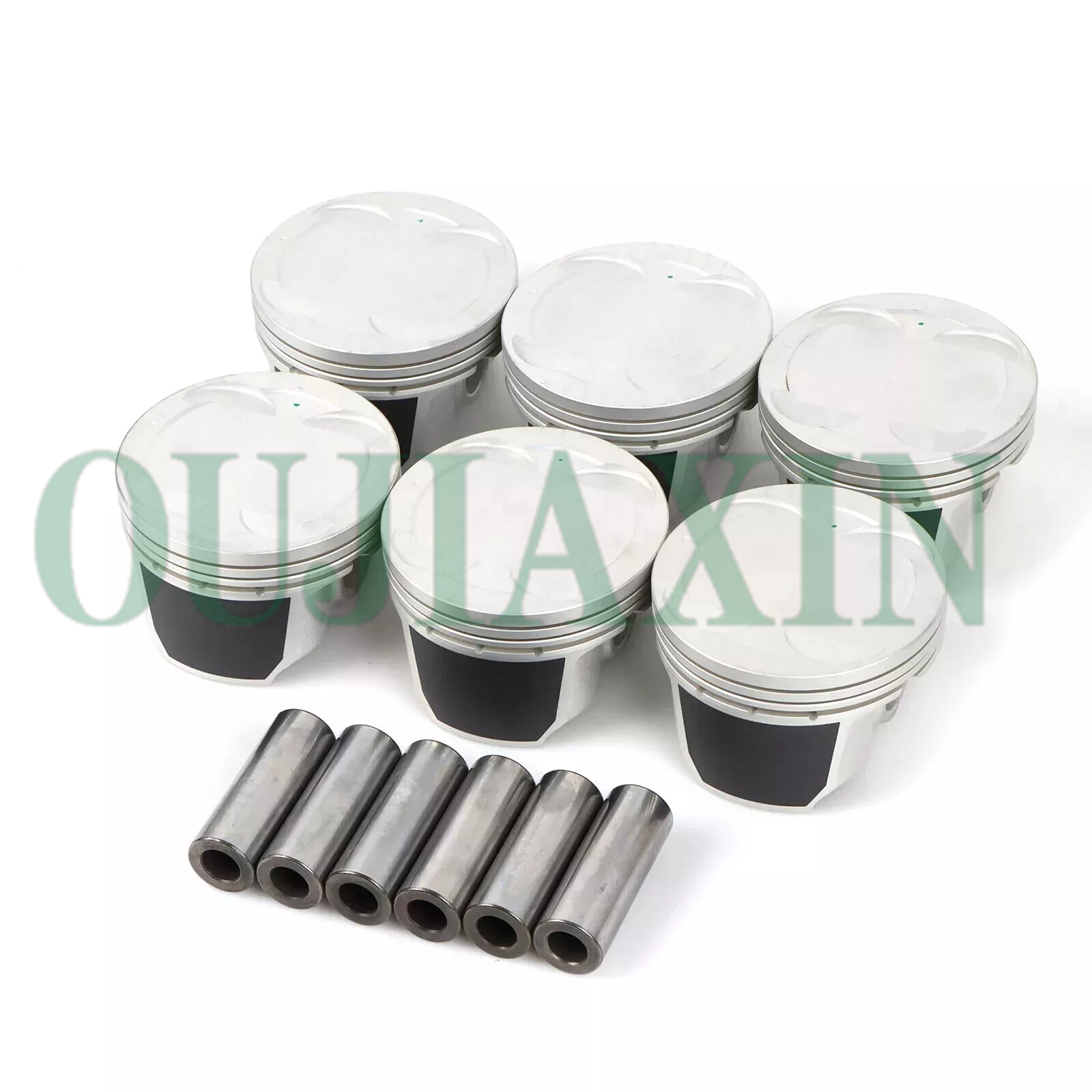

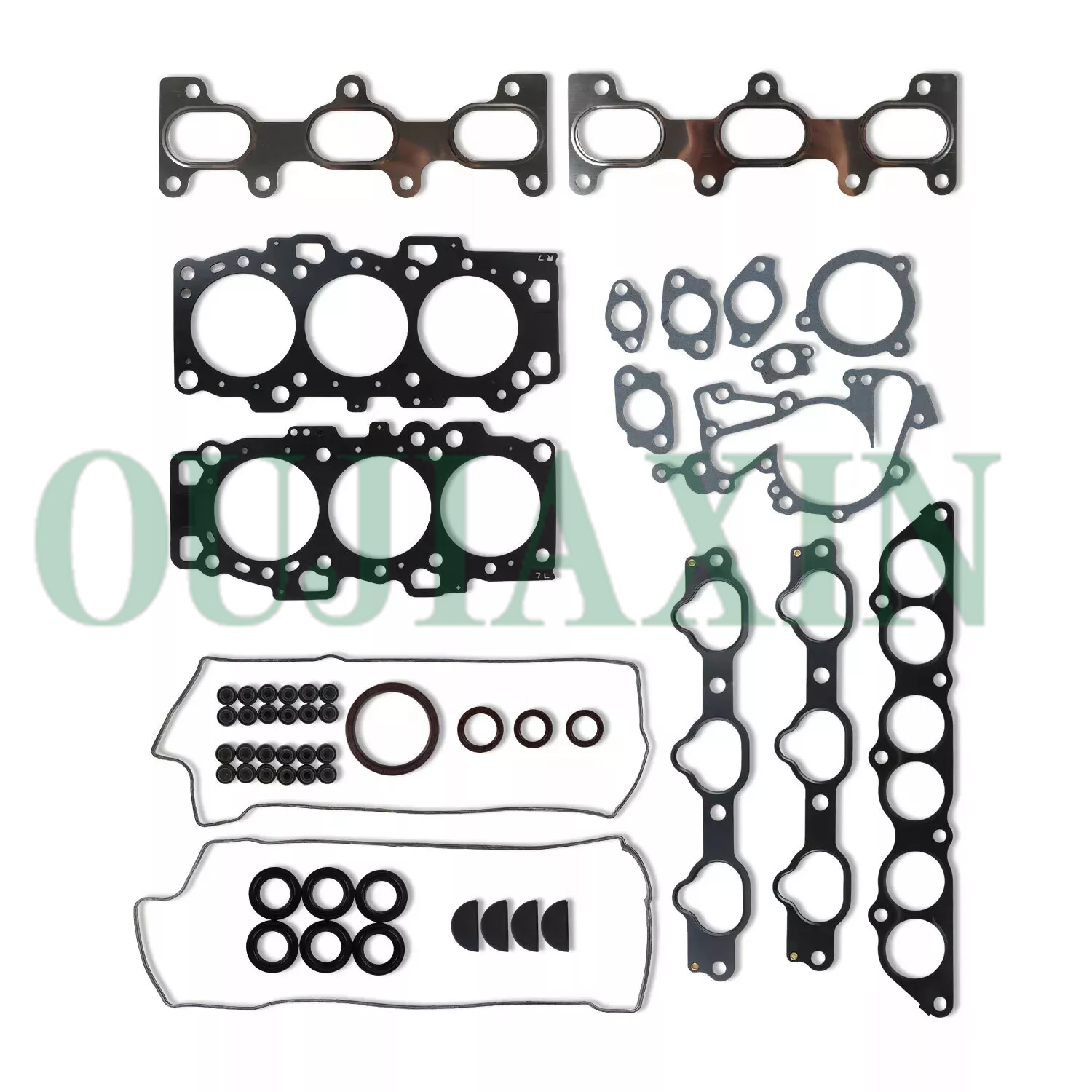

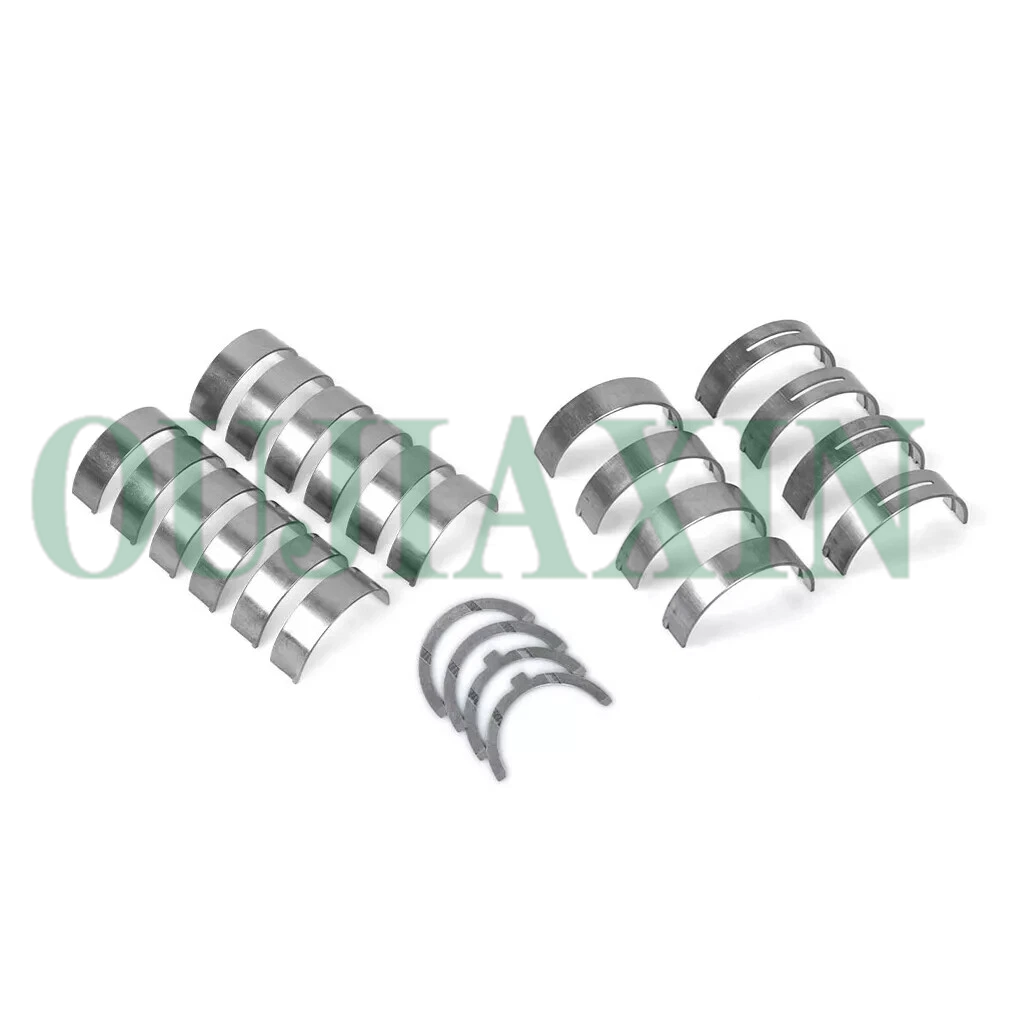

The Hyundai-Kia G6BA (2.7L V6 DOHC) engine overhaul kit is commonly used in model years ranging from 2001 to 2010 (such as the Santa Fe and Tiburon). It typically includes a complete set of gaskets (usually featuring an MLS—Multi-Layer Steel—cylinder head gasket), six pistons with piston rings (standard bore: 86.70mm), main and connecting rod bearings, and thrust washers.
Description
Engine Code: G6BA (2.7L V6 DOHC 24-Valve).
Cylinder Head Gasket Type: Multi-Layer Steel (MLS).
Piston Dimensions: Standard Bore 86.70 mm.
Piston Ring Dimensions: Top Ring: 1.20 mm;
Second Ring: 1.20 mm; Oil Ring: 2.50 mm.
Main Bearing Clearance: 0.004 – 0.022 mm (0.0002 – 0.0009 in).
Connecting Rod Bearing Clearance: 0.018 – 0.036 mm (0.0007 – 0.0014 in).
Piston Ring End Gap: Top Ring: 0.20 – 0.35 mm;
Second Ring: 0.37 – 0.52 mm.
Optional Kit Components: Typically includes timing belt (207 teeth) and tensioner pulley.
Common Applicable Models:
Hyundai: Santa Fe (2001-2006), Sonata (2003-2005), Tiburon (2003-2006), Tucson (2005-2006).
Kia: Optima (2002-2006), Sportage (2005-2006), Magentis.
OE Number: 20910-37C00
