G4FD 1.6L Crankshaft Assy 23110-2B610 for Hyundai Accent Veloster Kia Rio Soul (For: Hyundai)

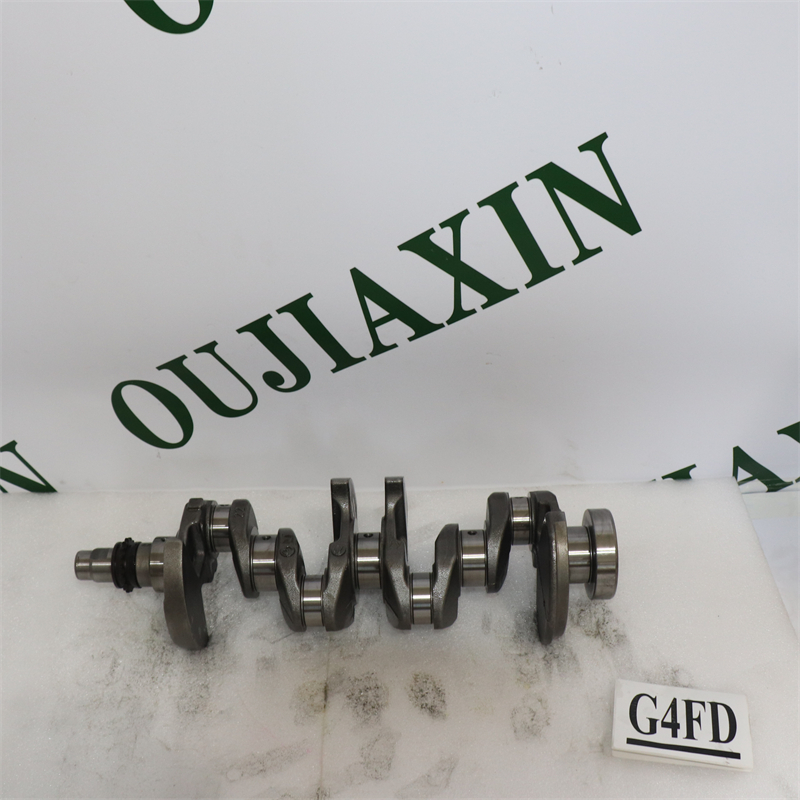

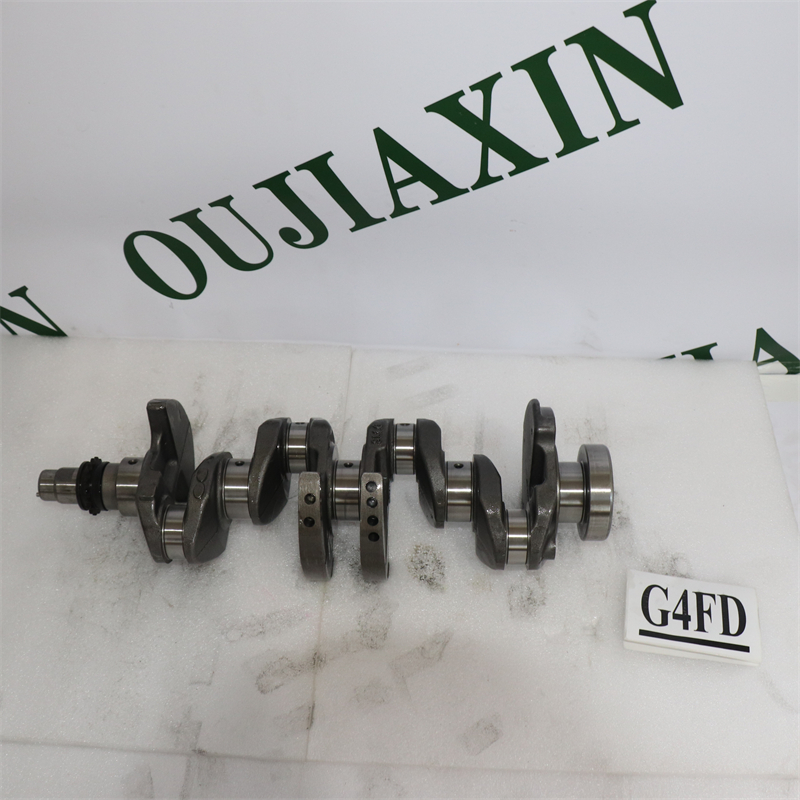

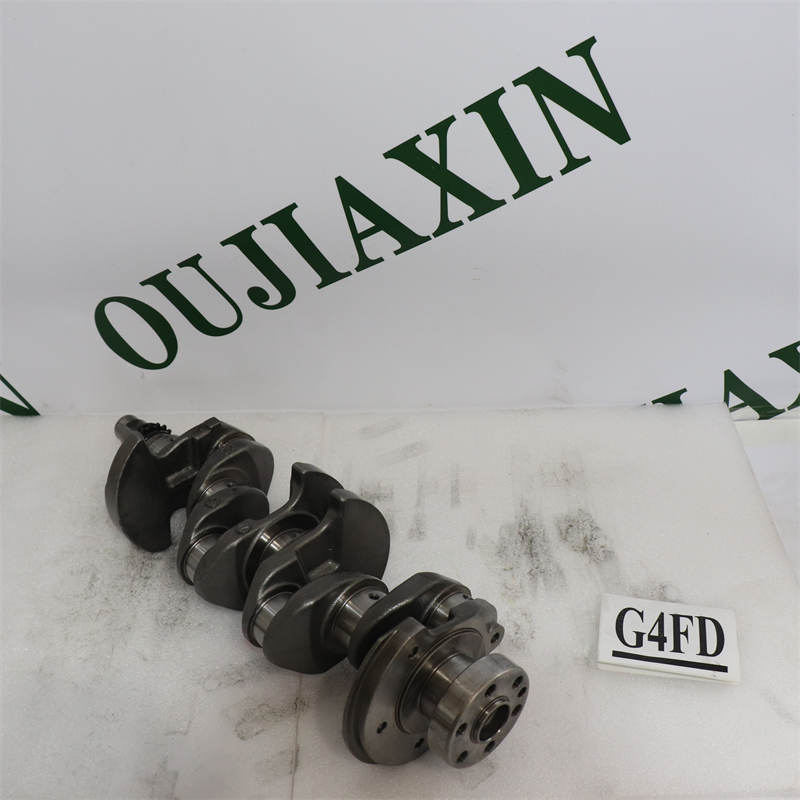

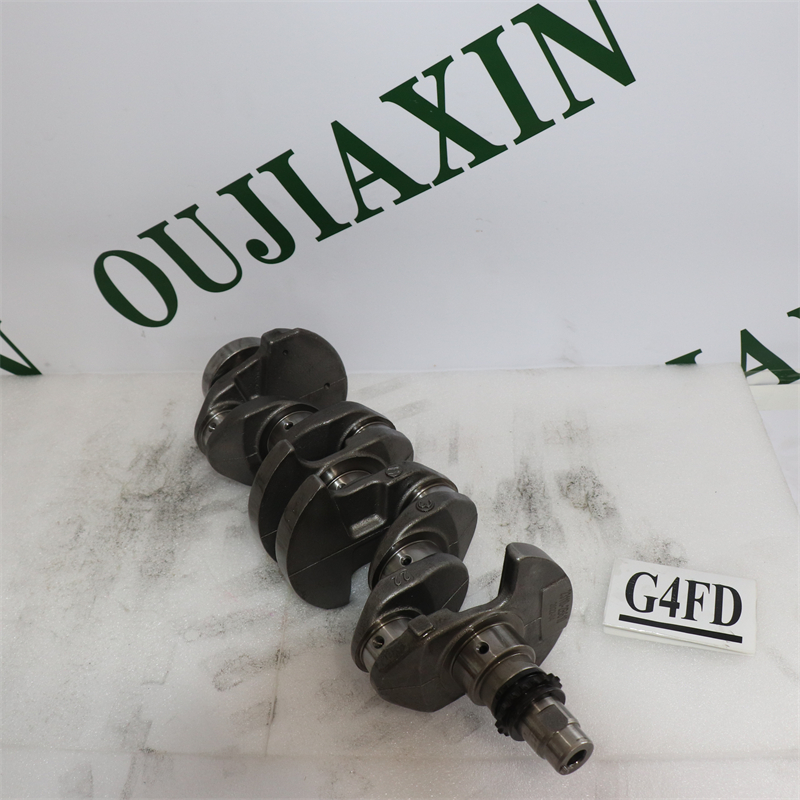

The Hyundai G4FD crankshaft (Part Number 23110-2B610) is a component specifically designed for Hyundai and Kia models equipped with the 1.6L Gamma engine (model years 2012–2019), featuring a stroke of approximately 85 mm. This crankshaft has a main journal diameter of 48 mm and a connecting rod journal diameter of 42 mm, and is typically manufactured from high-strength forged steel or ductile cast iron.

Category: Tag:

Description

Key Specifications:
Part Number: 23110-2B610 (Interchange Numbers: 231102B610, 603N6-2BU00)
Engine Model: 1.6L G4FD Gamma 14 DOHC
Stroke: 85mm (Listed as 85.4mm in some product listings)
Main Journal Diameter: 48mm
Rod Journal Diameter: 42mm
Overall Length: Approx. 452mm
Material: High-Quality Steel or Ductile Iron (QT800-3)
Weight: Approx. 11–13 kg (Approx. 24–30 lbs)

Compatibility:
Fits 2012-2019 Hyundai Accent, Veloster, Kia Rio, and Kia Soul (1.6L Non-Turbo).
