Full Engine Rebuild Gasket Set For NISSAN LATIO 16V 1.6 110 HR16DE 12/09-6/11
The Nissan HR16DE complete gasket set (common part number 10101-EE027) is designed for the 1.6-liter 16-valve DOHC engine (2005 and later models) and is suitable for models such as the Micra, Note, and Tiida. This kit typically includes a multi-layer steel (MLS) cylinder head gasket with a thickness of approximately 0.4 mm, a valve cover gasket, manifold gaskets, and fluororubber valve stem seals. These gasket sets are generally heat-resistant and perfectly matched to engines with a 78 mm bore.
Description
Engine model: HR16DE (1.6 liter, 1598 cc, 16-valve double overhead camshaft, 4-cylinder). Cylinder head gasket material: Metal (multi-layer steel). Cylinder head gasket thickness: Approximately 0.4 mm. Rear crankshaft oil seal dimensions: \(84\times 117.5\times 8.3\) mm. Front crankshaft oil seal dimensions: \(40\times 52\times 7\) mm. Valve stem oil seal material: FKM (fluororubber). Main part numbers: 10101-EE027, 10101-EE026, 11044-BC20A (cylinder head gasket).

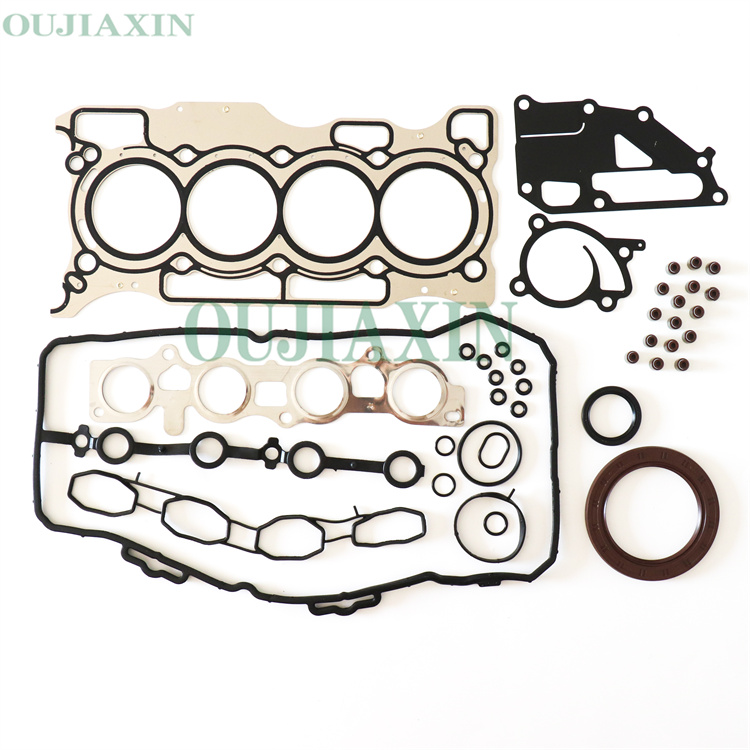

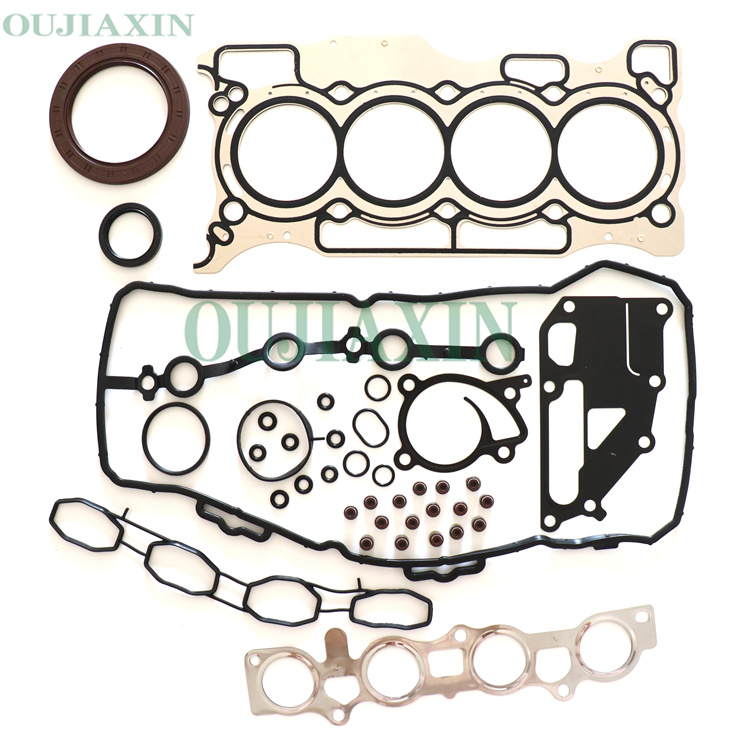

The complete gasket kit includes the following components:

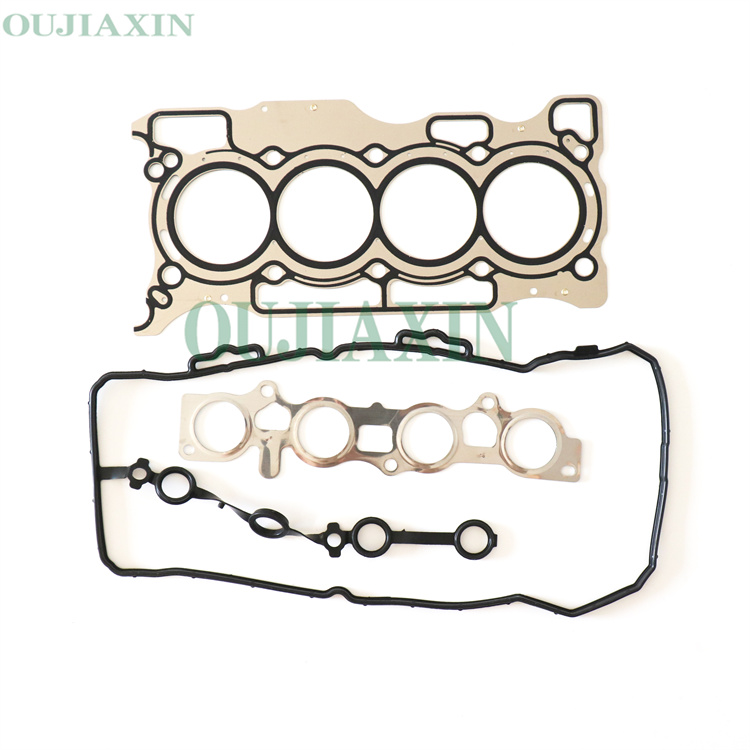

Cylinder head gasket (metal material).

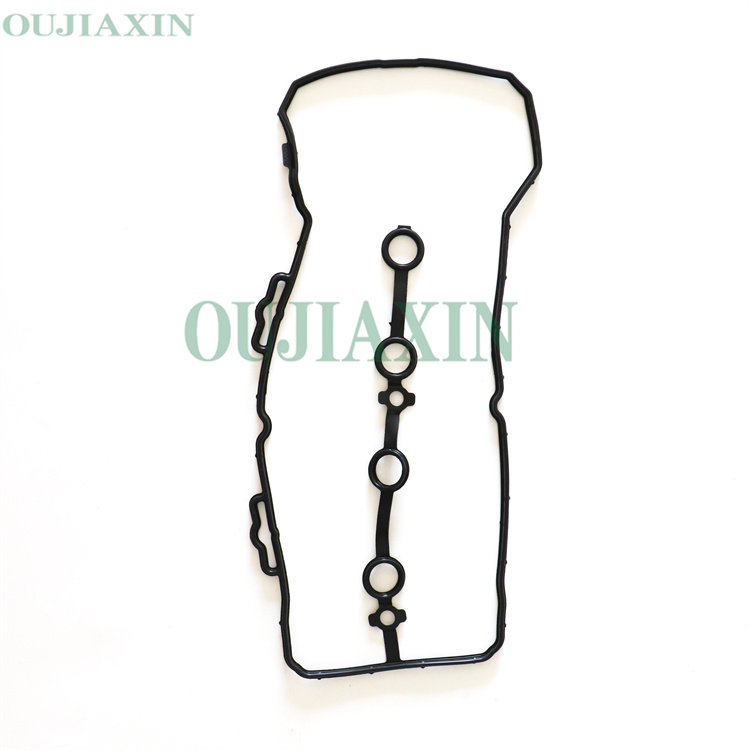

Rocker arm/valve cover gasket.
Intake and exhaust manifold gaskets.
Front and rear crankshaft oil seals.

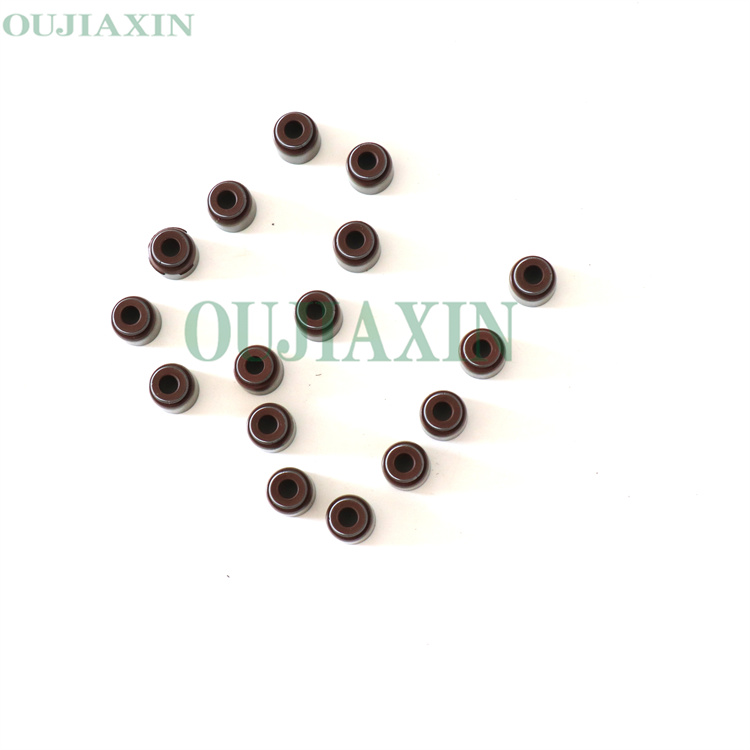

Valve stem oil seals.
Various other seals (water pump, oil pump, etc.).
Engine specifications related to sealing:
Bore: 78 mm
Stroke: 83.6 mm
Compression ratio: 16-valve double overhead camshaft (DOHC) design, requiring precise sealing for high efficiency.
