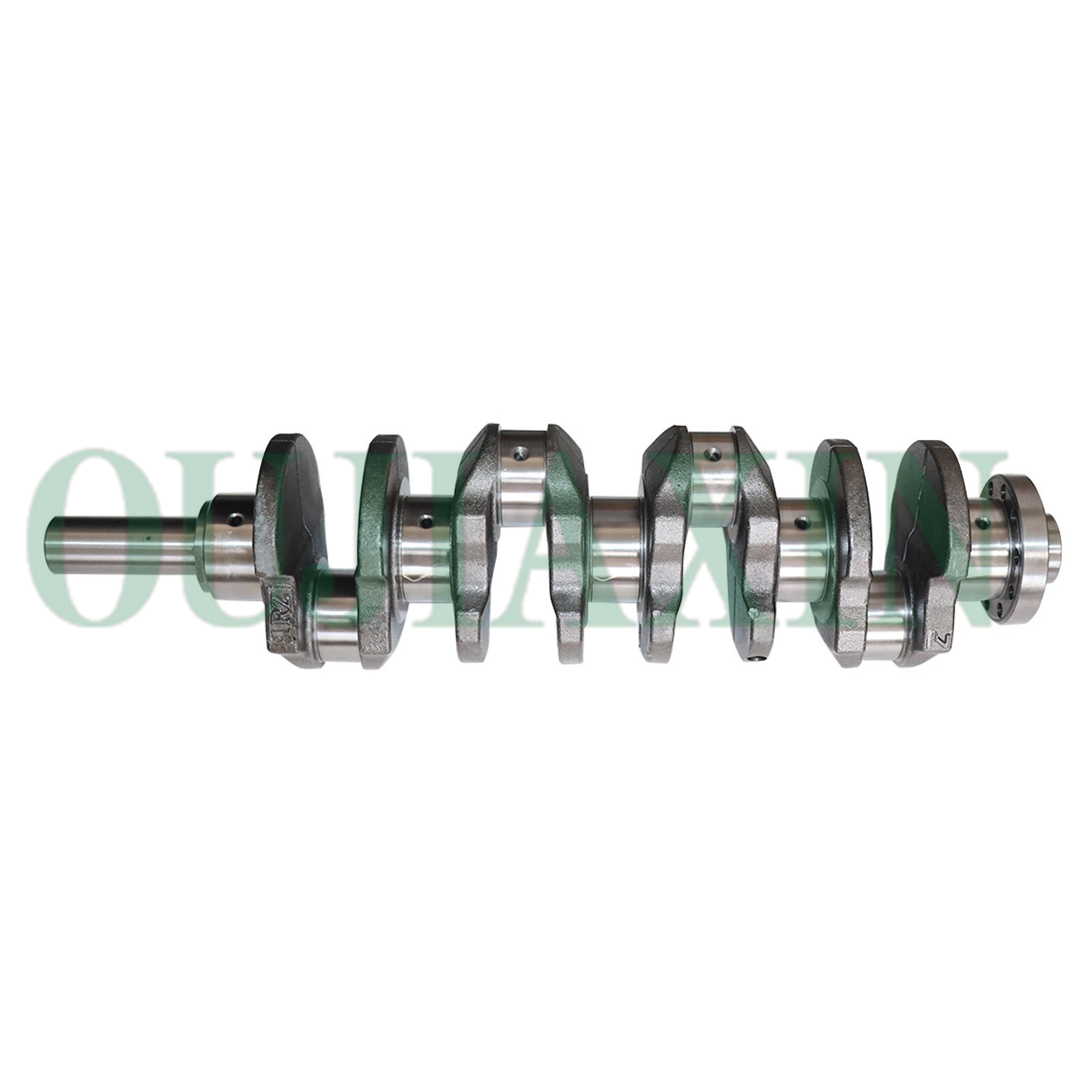

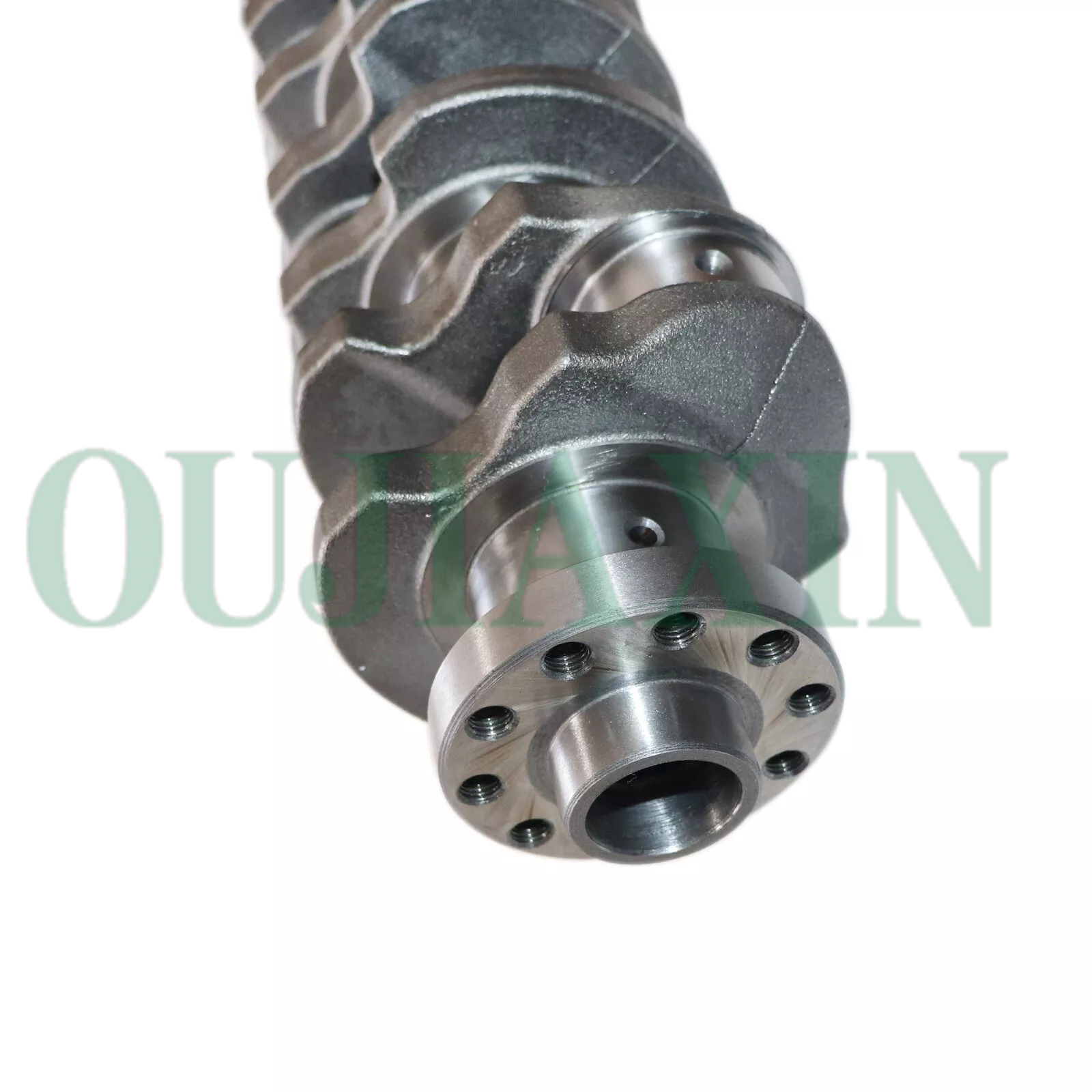

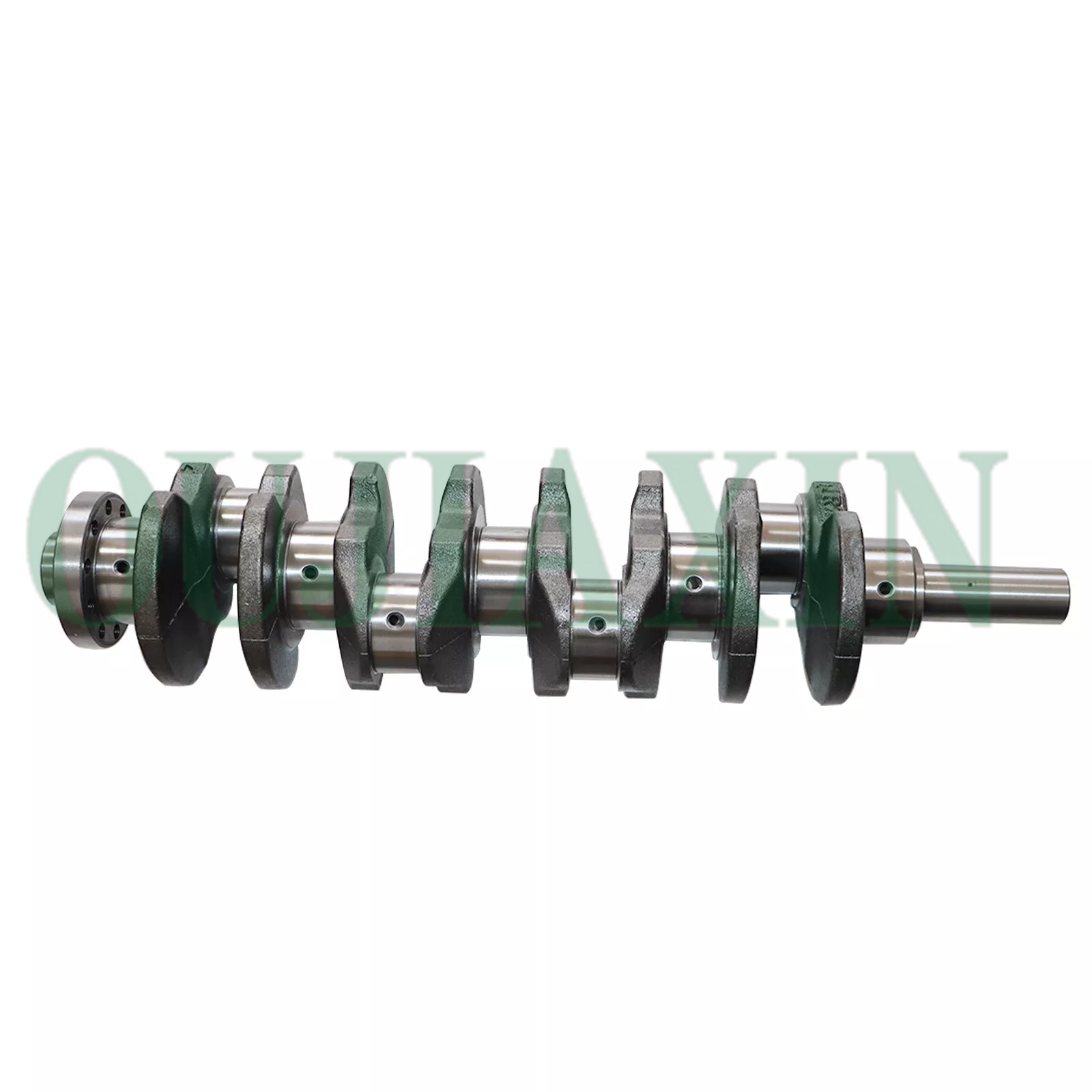

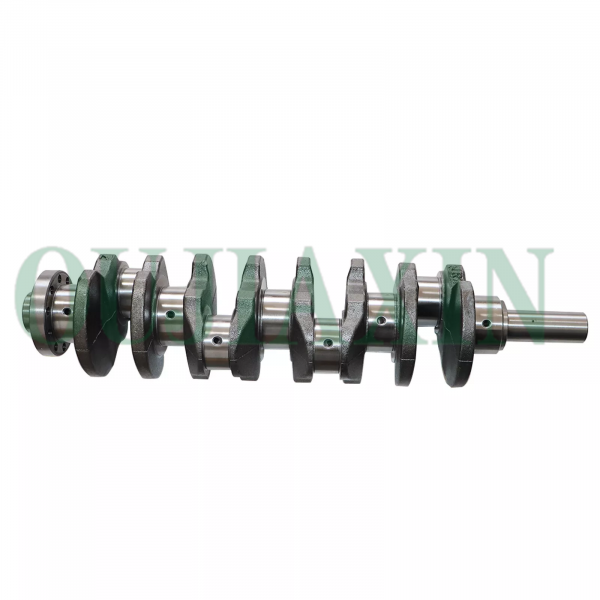

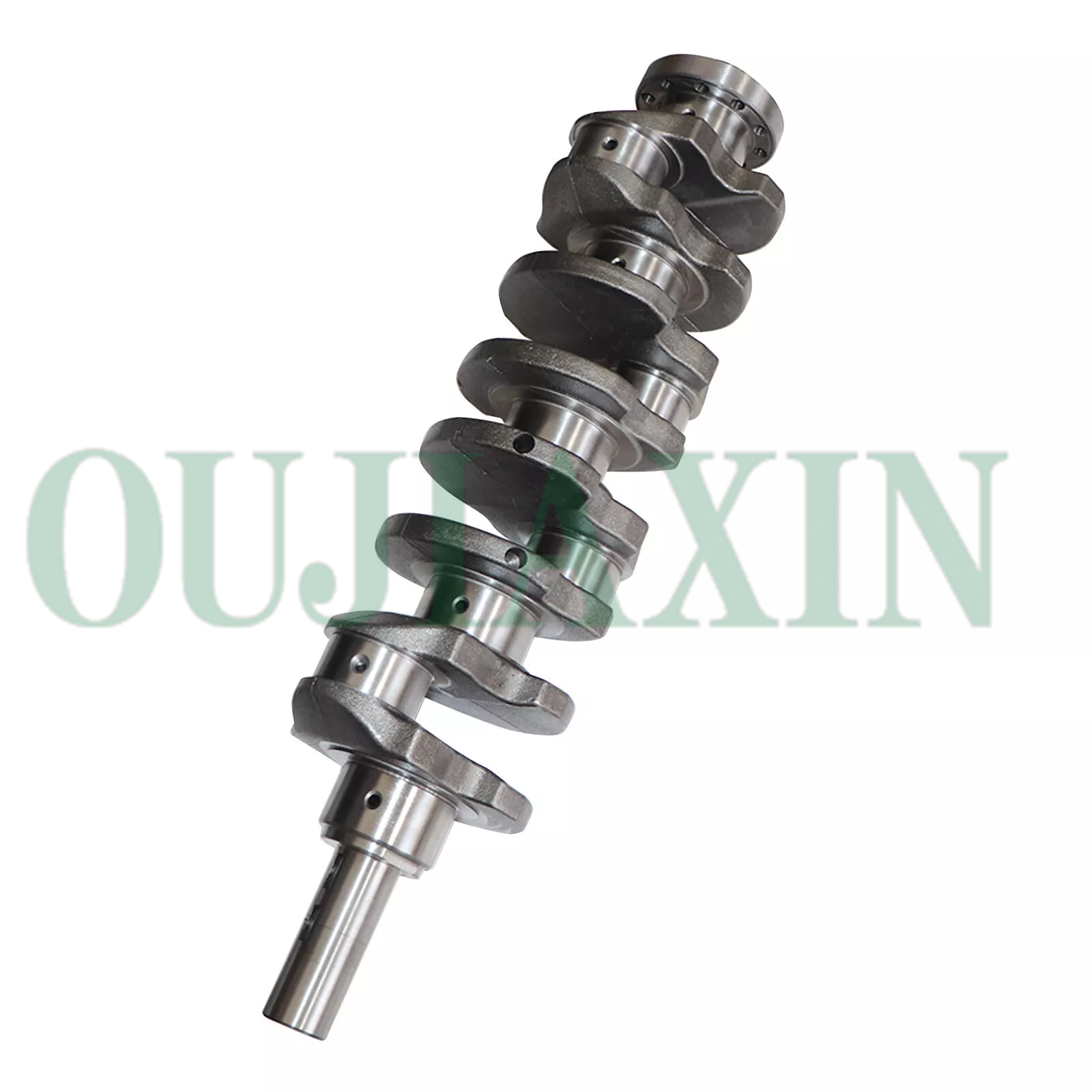

Front Metal Crankshaft for Toyota Tacoma 2RZ-FE 2RZ 1995-2004 13411-75900

The Toyota 2RZ (2.4L) engine crankshaft is an exceptionally robust, fully balanced cast-iron component featuring an 86.0 mm stroke and an overall length of 571 mm. This crankshaft is widely used in vehicle models such as the Toyota Tacoma, Hilux, and Hiace.

Category: Tag:

Description

Journal Specifications
Main journal diameter: 60.00 mm (standard value)
Crankpin (connecting rod) journal diameter: 53.00 mm (standard value)
Rear oil seal diameter: 88.00 mm

Key Dimensions and Specifications
Stroke: 86.00 mm
Total Length: 571 mm
Flywheel Mounting: 10 bolt holes (no dowel pins)
Material: Cast iron
OE Part Numbers: 13411-75900, 13411-75010
