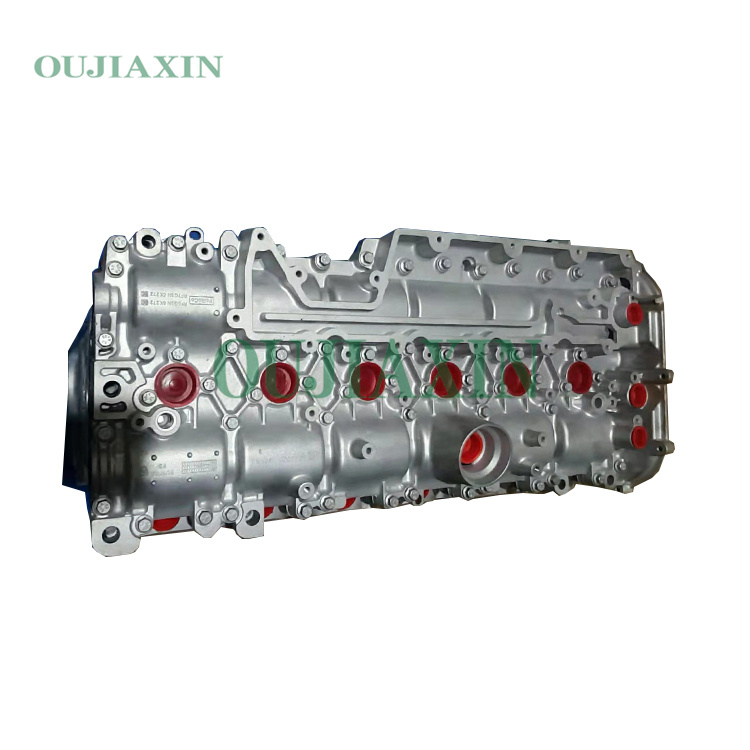

Volvo B6304T4 Gasoline Engine (3.0T)
Volvo B6304T4 Gasoline Engine (3.0T)
Volvo B6304T4 Gasoline Engine (3.0T)
  1. Volvo B6304T4 Gasoline Engine (3.0T)
  2. Volvo B6304T4 Gasoline Engine (3.0T)
  3. Volvo B6304T4 Gasoline Engine (3.0T)

For Volvo S80L V60 XC60 3.0T T6 B6304T4 6A/MT gasoline engine

The Volvo B6304T4 is a 3.0-liter turbocharged inline-six (SI6) gasoline engine, producing a primary output of 304 PS (224 kW; 300 hp) and 440 N·m (325 lb-ft) of torque. This engine is commonly found in 2011 through 2015.5 model year Volvo T6/3.0T vehicles (including the S60, V60, XC60, XC70, and S80). It features a compression ratio of 9.3:1 and utilizes manifold injection technology, and is renowned for its smooth power delivery and strong low-rpm torque performance.

Category: Tag:

Description

B6304T4 Engine Key Specifications:
Engine Type: Inline-6, Turbocharged (T6)
Displacement: 3.0 (2953cc)
Bore x Stroke: 82mm x 93.2mm (3.23 in x 3.67 in)
Max Power: 300 HP (304 PS) @ 5600 RPM
Max Torque: 325 lb-ft (440 N·m) @ 1500–4800 RPM (Up to 480 N·m with Polestar tuning)
Induction: Turbocharged; Standard Boost Pressure: 10.1 PSI (0.7 Bar)
Fuel System: Manifold Injection

Valve Train: DOHC (Dual Overhead Camshaft), 24 Valves
Oil Capacity: 6.8L (7.18 US Quarts)
