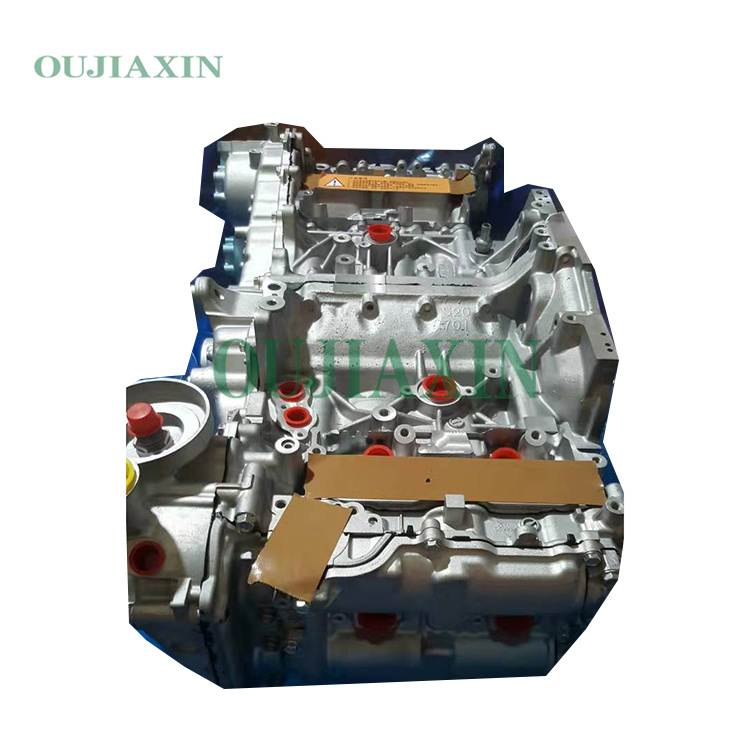

For Subaru FA20D FA20DIT 6A/MT gasoline engine
The 2014 Subaru FA20 engine is available in two primary configurations: the naturally aspirated FA20D (producing 197–205 horsepower), found in the BRZ and Toyota 86 models; and the turbocharged FA20F (also known as the FA20DIT), found in the Forester XT and WRX models (producing 250–268 horsepower). Both engines feature a 2.0-liter displacement (1,998 cc) and utilize direct fuel injection technology; they have compression ratios of 12.5:1 (naturally aspirated version) and 10.6:1 (turbocharged version), and both share identical bore and stroke specifications of 86 mm x 86 mm.
Description
2014 Subaru FA20 Engine Specifications
Engine Type: 2.0L Horizontally Opposed 4-Cylinder (Boxer), DOHC, 16-Valve
Displacement: 1,998 cc
Bore & Stroke: 86 mm × 86 mm (3.39 in × 3.39 in)
Fuel System: Direct Injection
Firing Order: 1-3-2-4
