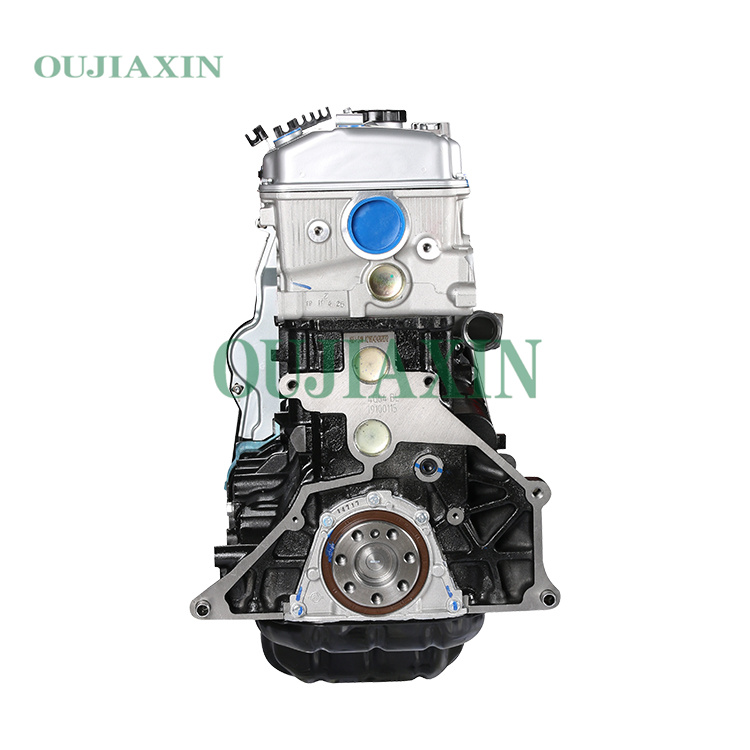

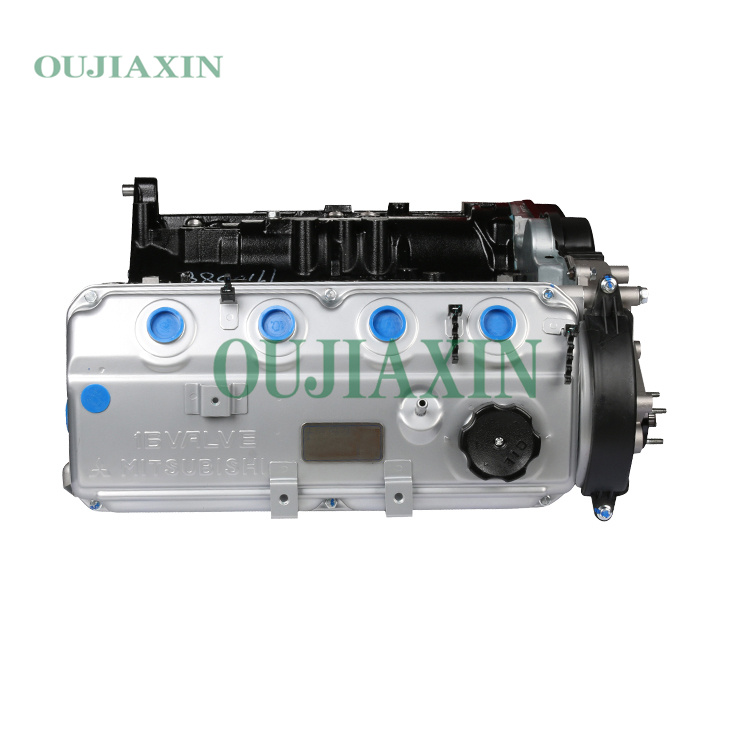

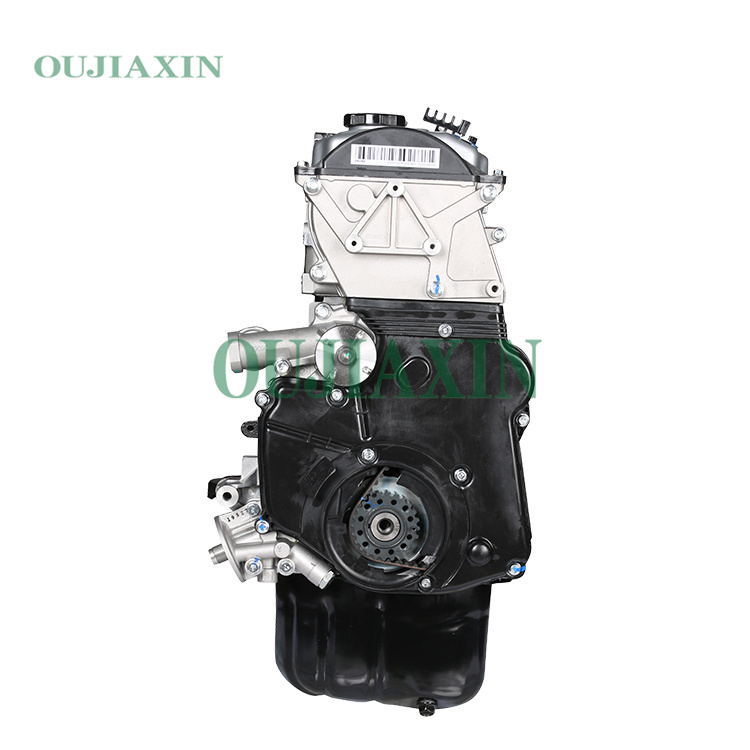

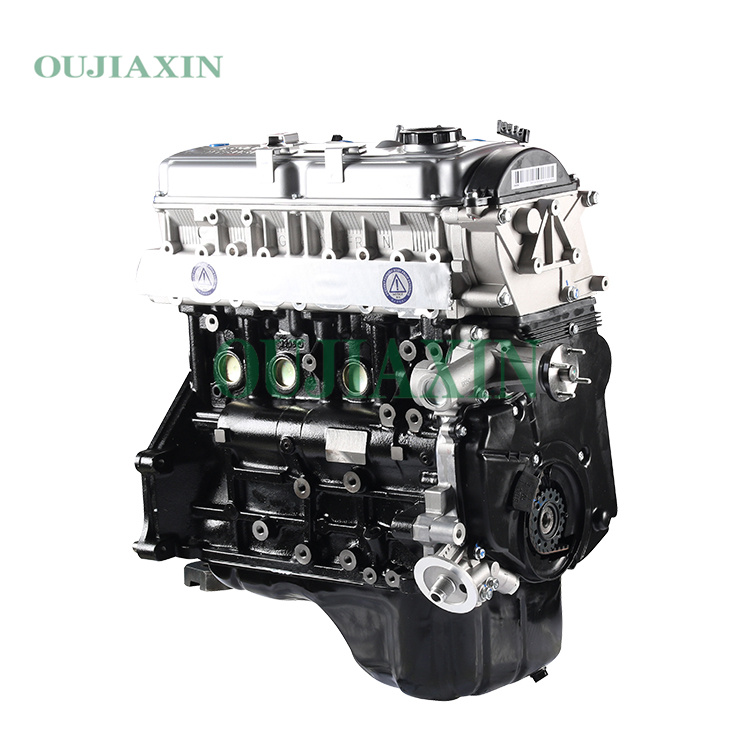

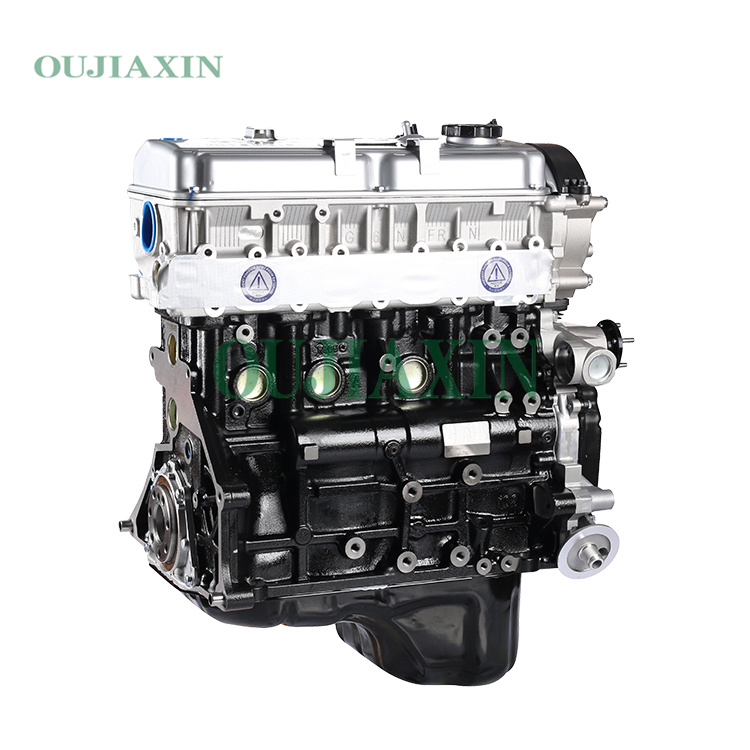

For Mitsubishi SOVERAN 2.4L 4G64S4M 5MT Gasoline Engine
The Mitsubishi 4G64S4M is a naturally aspirated, inline four-cylinder gasoline engine featuring a displacement of 2.4 liters (2351 cc), a 16-valve configuration, and a SOHC (Single Overhead Camshaft) structure. Renowned for its reliability, this engine is widely utilized in the Mitsubishi Galant and L200, as well as in various Chinese-manufactured vehicle models. Its power output typically ranges from approximately 93 to 96 kW (125 to 131 horsepower), with a peak torque of around 170 to 205 Nm.
Description
4G64S4M (SOHC Version) Key Technical Specifications:
Engine Type: Inline-4, 4-stroke gasoline engine
Displacement: 2.4L (2351cc, or between 2350 – 2384cc)
Valve Configuration: SOHC (Single Overhead Camshaft), 16 valves (4 valves per cylinder)
Bore × Stroke: 87mm × 100mm
Power Output: Typically 125–131 hp (93–96 kW) at 5,500–6,000 RPM
Torque: Approx. 170 Nm (125 lb-ft) at 3,500 RPM
Fuel System: Multi-Point Injection (MPI)
Compression Ratio: Typically 8.8:1 or 9.5:1
Common Applications: Mitsubishi: Galant, L200, Pajero iO
Others: Commonly used in the Great Wall Haval H3/H5 and other Chinese-brand vehicle models.
