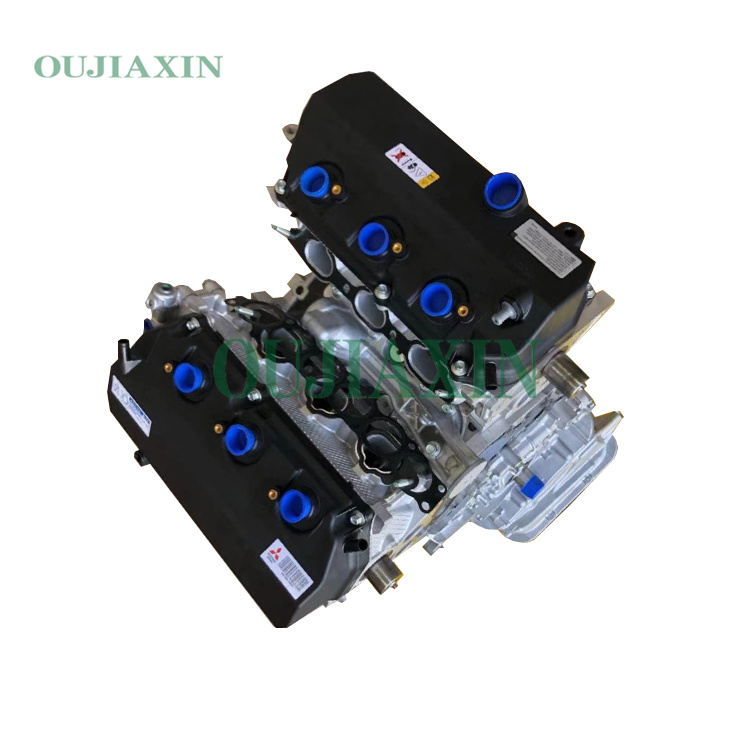

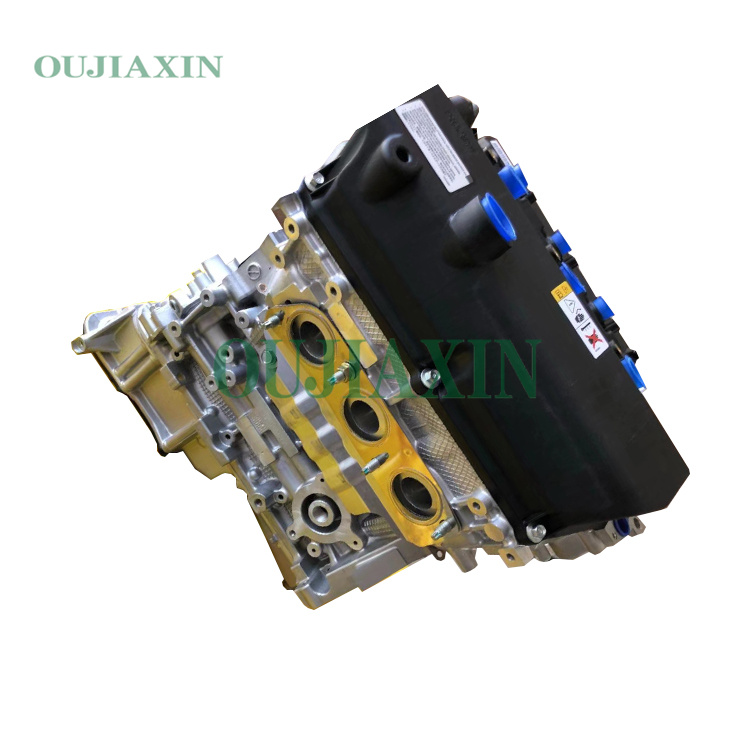

Mitsubishi 6B31 Engine (3.0 L)
Mitsubishi 6B31 Engine (3.0 L)
Mitsubishi 6B31 Engine (3.0 L)
  1. Mitsubishi 6B31 Engine (3.0 L)
  2. Mitsubishi 6B31 Engine (3.0 L)
  3. Mitsubishi 6B31 Engine (3.0 L)

For Mitsubishi Pajero KS5W 6B31 V6 3.0L (MA/MT) Gasoline Engine

The Mitsubishi 6B31 is a 3.0-liter (2,998 cc) V6 engine featuring an aluminum block and cylinder heads, an SOHC 24-valve configuration, and MIVEC variable valve timing technology. Introduced around 2006, this engine produces a maximum output of approximately 220 to 230 horsepower and peak torque of around 204 to 215 lb-ft; it is primarily featured in the Mitsubishi Outlander model.

Category: Tag:

Description

Key Technical Specifications
Engine Code: 6B31
Configuration: 60-degree V6, 24-valve SOHC, MIVEC
Displacement: 3.0 L (2,998 cc)
Bore x Stroke: 87.6 mm x 82.9 mm (3.45 in x 3.26 in)
Compression Ratio: 10.5:1 (2010 and later models), 9.5:1 (Pre-2010 models)
Max Power: 230 PS (169 kW; 227 HP)  6,250 rpm (2010 and later models)
Max Torque: 291 N·m (214.5 ft-lb)  4,000 rpm (2010 and later models)
Fuel System: Multi-Point Electronic Fuel Injection (MPI)
Firing Order: 1-2-3-4-5-6
