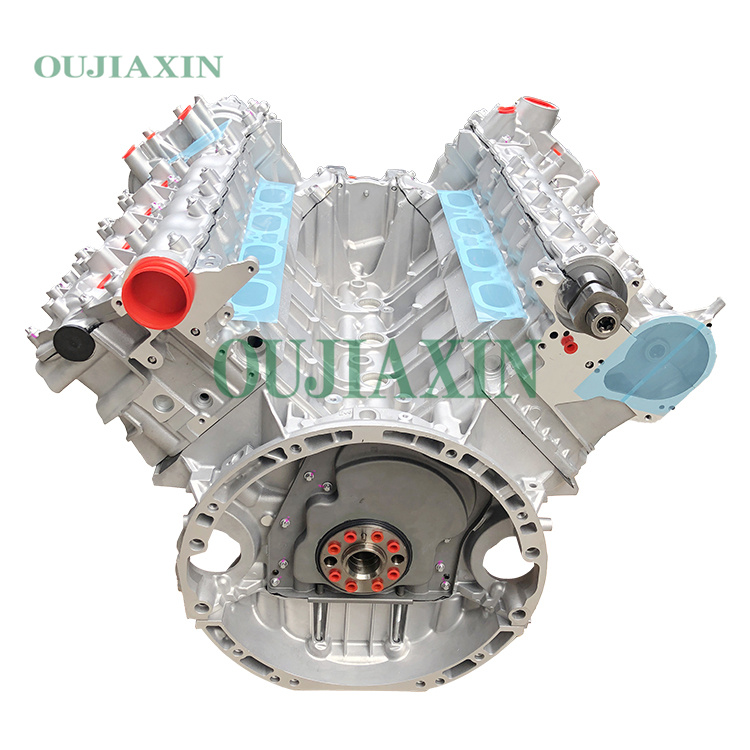

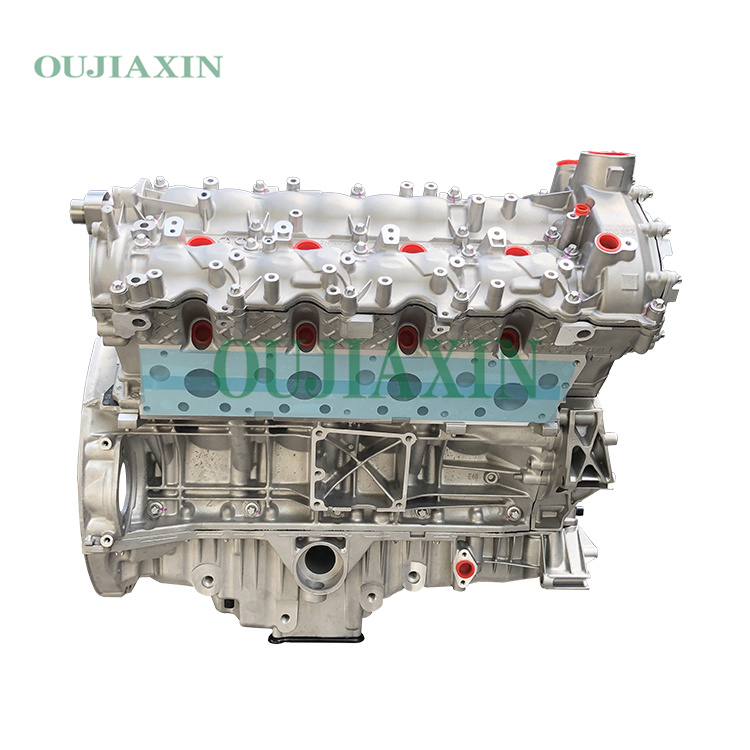

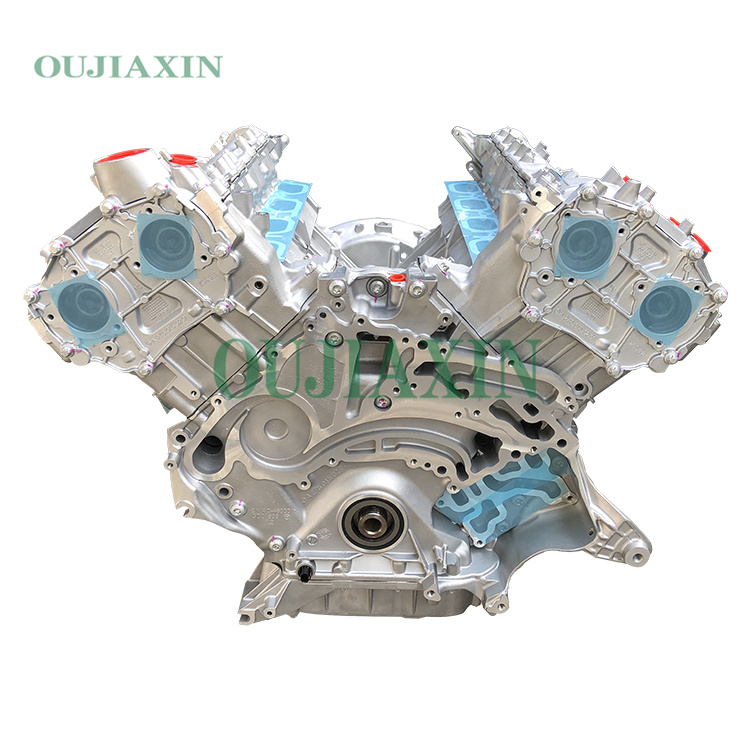

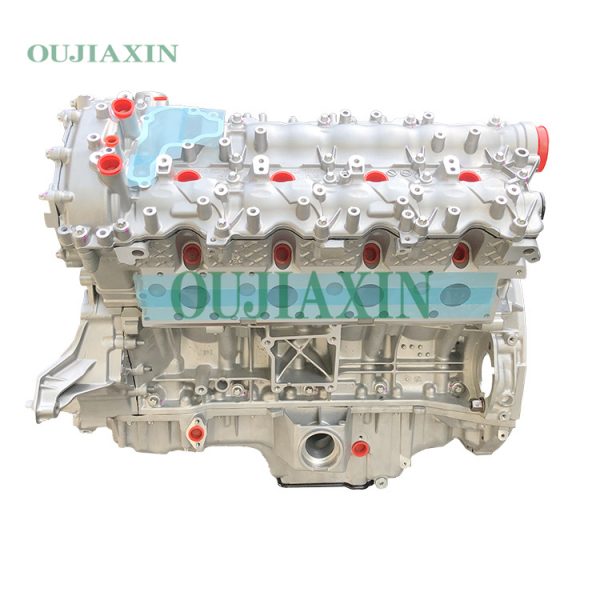

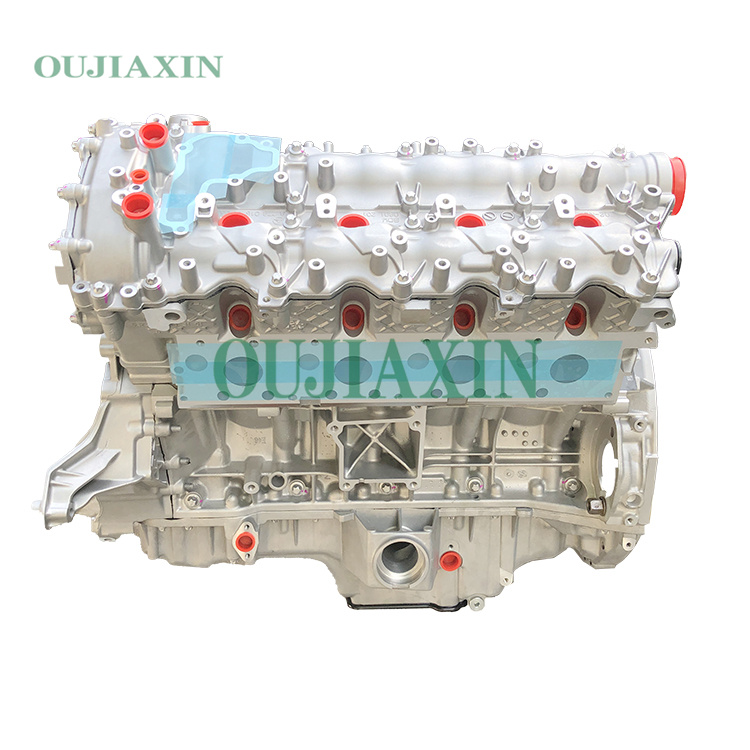

For Mercedes-Benz S-Class W221 S500 S550 4.7T M278 Engine (M278.932)

The Mercedes-Benz M278.932 is a 4.7-liter (4,663 cc) twin-turbocharged V8 engine with a 90-degree bank angle, primarily featured in the 2011 through 2017 S500/S550 (W221/W222) models. This engine utilizes gasoline direct injection (DI), features an aluminum alloy block and cylinder heads, and is equipped with variable valve timing technology; it produces an output of approximately 402 to 449 horsepower, with a peak torque ranging from 443 to 516 lb-ft.

Category: Tag:

Description

Engine Specifications (M278.932):
Engine Type: V8, 90-degree angle, Twin-turbocharged (Biturbo)
Displacement: 4.7 liters (4,663 cc)
Bore × Stroke: 92.9 mm × 86.0 mm
Compression Ratio: 10.5:1
Horsepower: Approx. 402–449 hp (300–335 kW) at 5,250–5,500 rpm
Torque: Approx. 443–516 lb-ft (600–700 Nm) at 1,800–3,500 rpm
Fuel System: Direct Injection
Valve Train: DOHC (Dual Overhead Camshafts), 4 valves per cylinder (32 valves total)
