For Mercedes-Benz M270.910 M274 1.6L Gasoline Engines

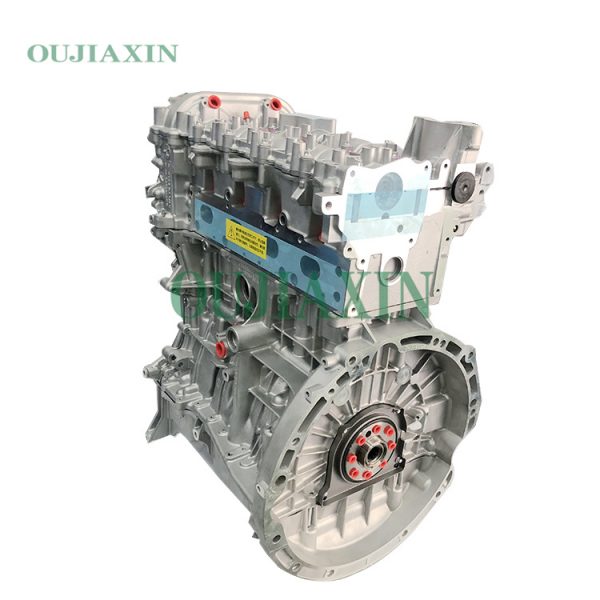

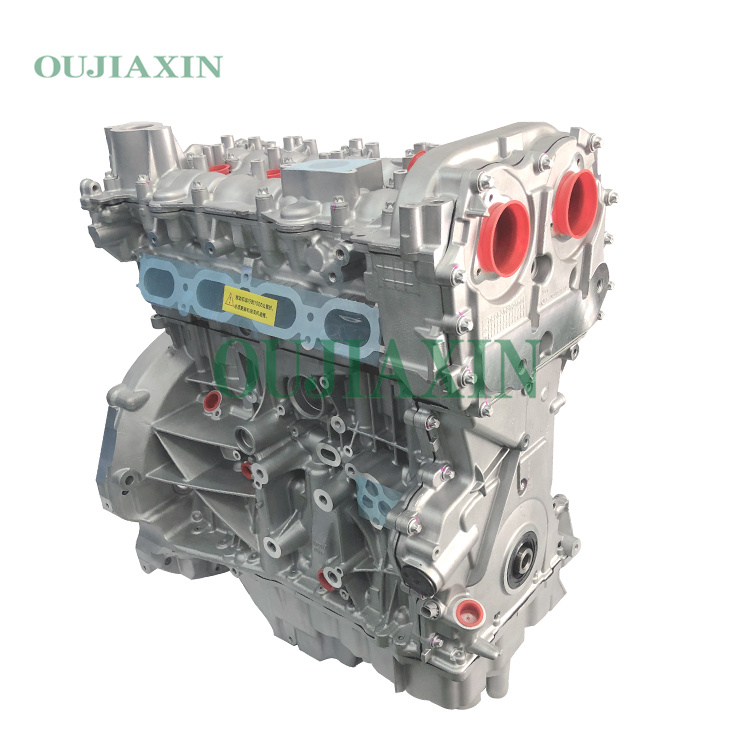

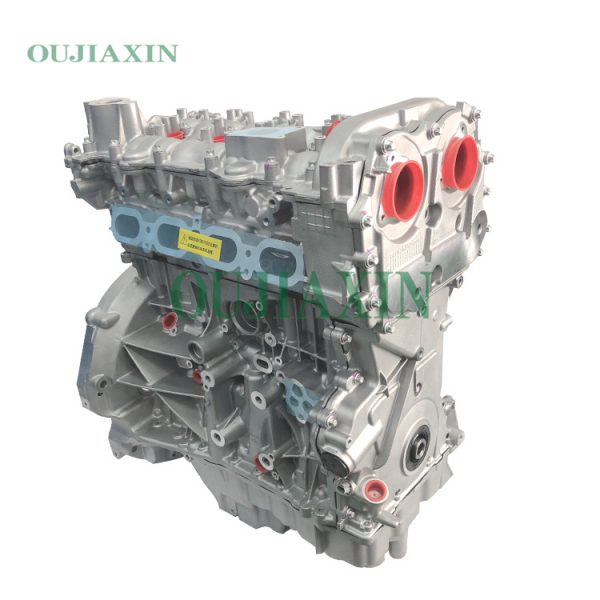

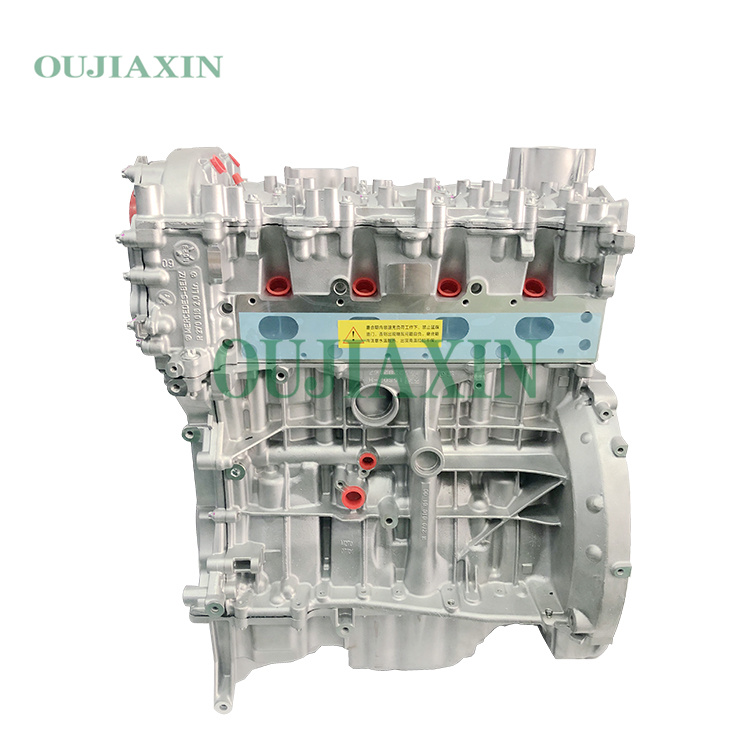

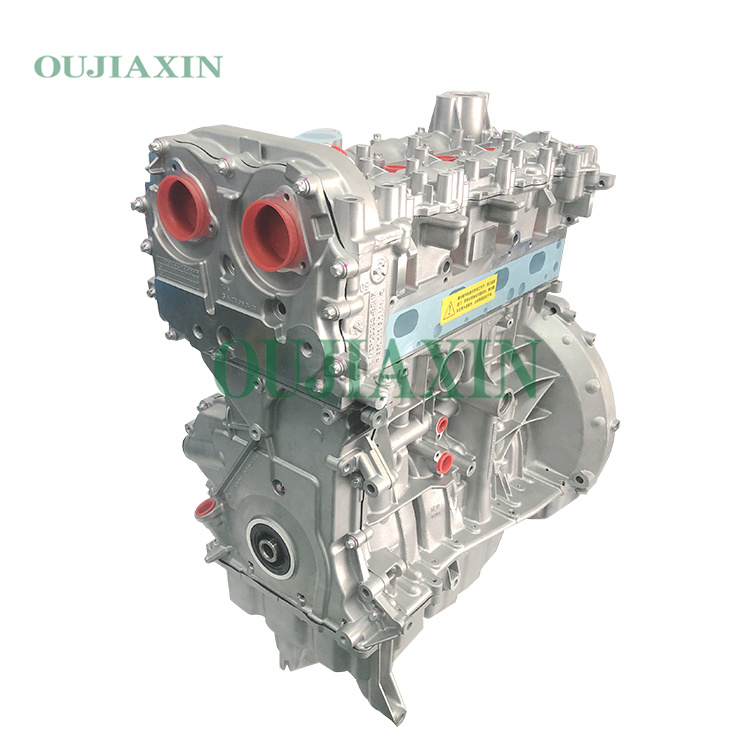

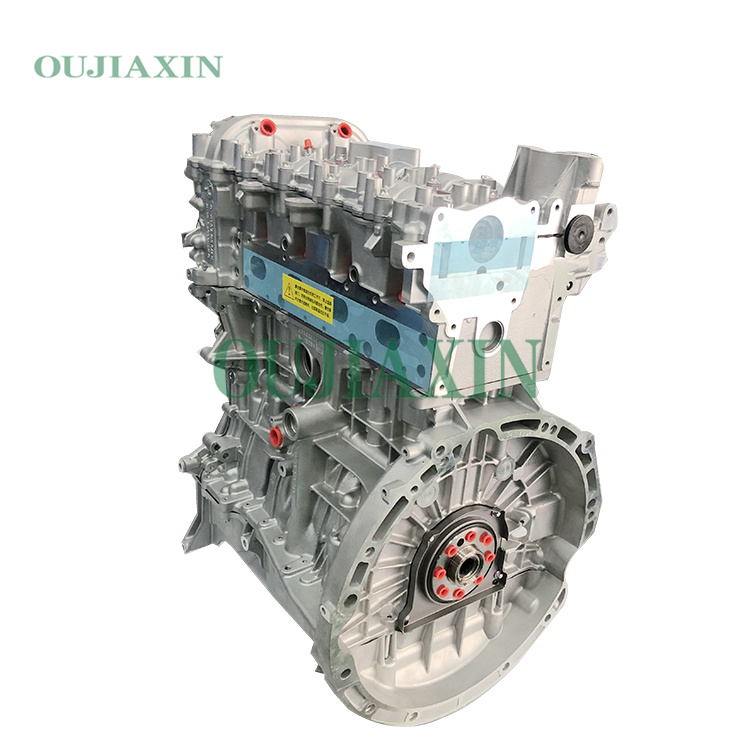

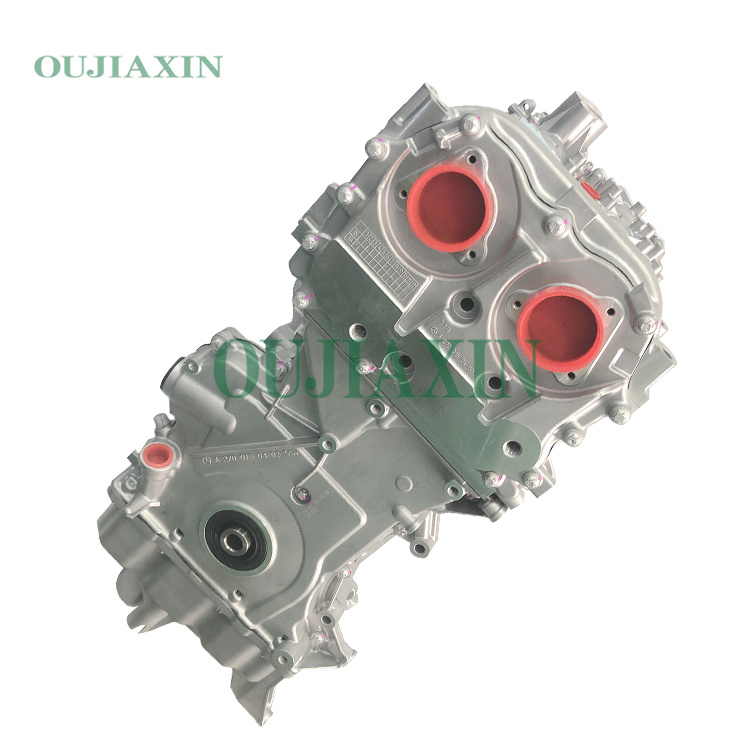

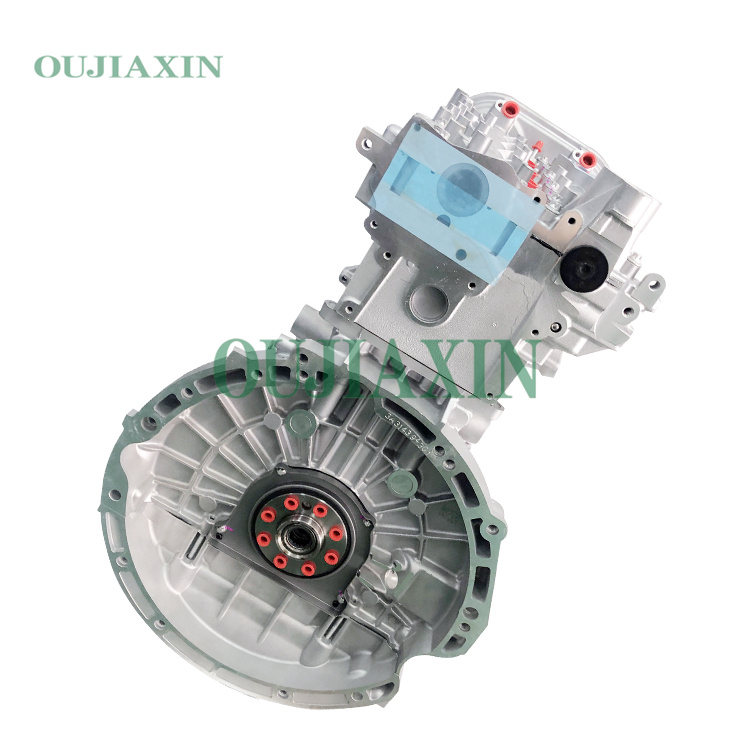

The Mercedes-Benz M270.910 is a 1.6-liter turbocharged inline-four gasoline engine, primarily utilized in front-wheel-drive models featuring a transverse layout (such as the W176 A-Class and W246 B-Class). Introduced in 2011, this engine incorporates technologies such as direct fuel injection, variable valve timing, and an aluminum cylinder block.

Category: Tag:

Description

Core Specifications
Engine Type: Inline-4 Turbocharged Gasoline Engine (M270 DE16 LA)
Displacement: 1,595 cc
Bore: 83 mm
Stroke: 73.7 mm
Compression Ratio: 10.3:1
Valve Train: DOHC (Dual Overhead Camshaft), 16 Valves
Block/Head Material: Aluminum AlloyPower and Torque Output
The M270.910 engine was factory-tuned to three primary specifications:
1. A160 / B160 (Retuned Version):
1. Power: 75 kW (102 PS / 101 hp)  4,500 – 6,000 rpm
2. Torque: 180 Nm @ 1,200 – 3,500 rpm
2. A180 / B180 / CLA180 / GLA180:
1. Power: 90 kW (122 PS / 121 hp)  5,000 rpm
2. Torque: 200 Nm @ 1,250 – 4,000 rpm
3. A200 / B200 / CLA200 / GLA200:
1. Power: 115 kW (156 PS / 154 hp)  5,000 rpm
2. Torque: 250 Nm @ 1,250 – 4,000 rpm
