2.0L Engine for Mazda LF

For Mazda LF 2.0L Engine

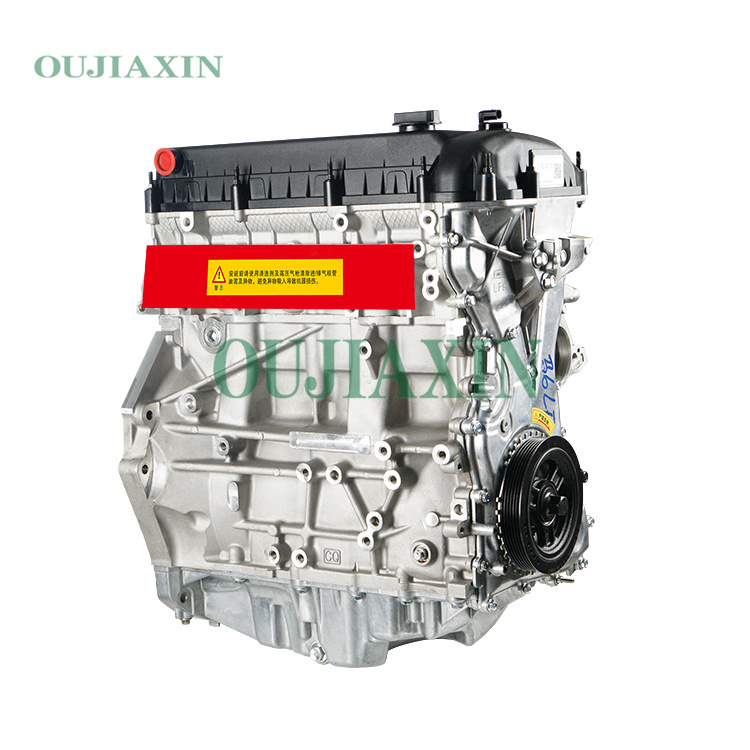

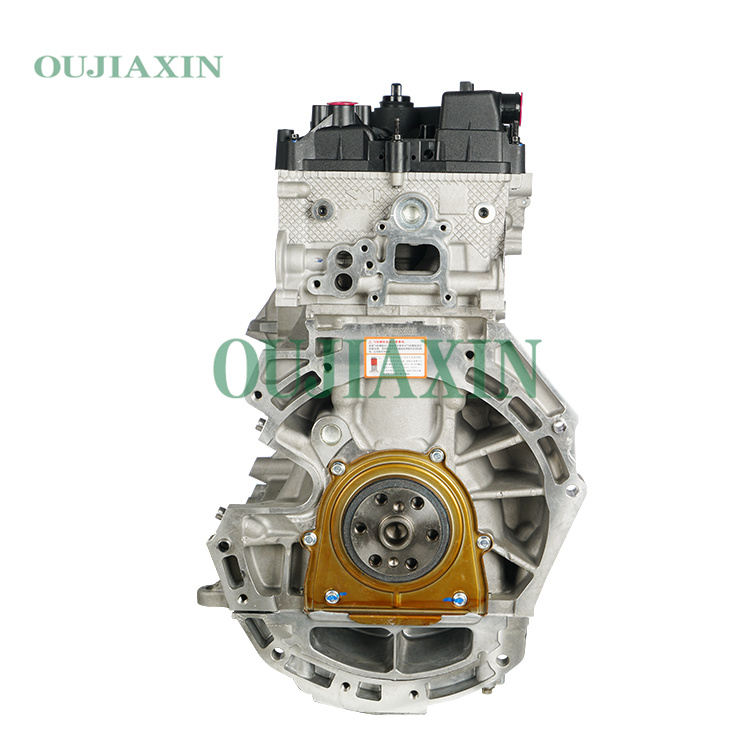

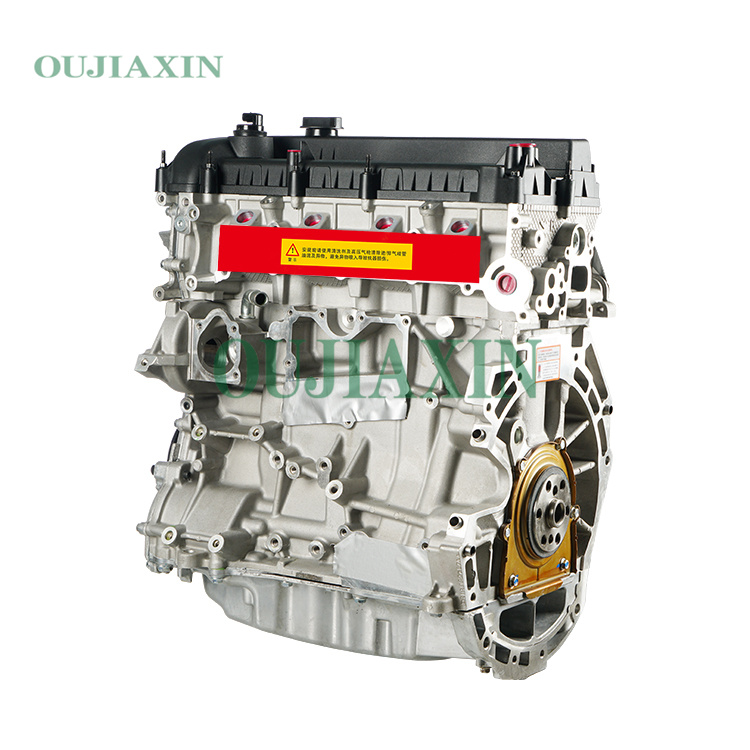

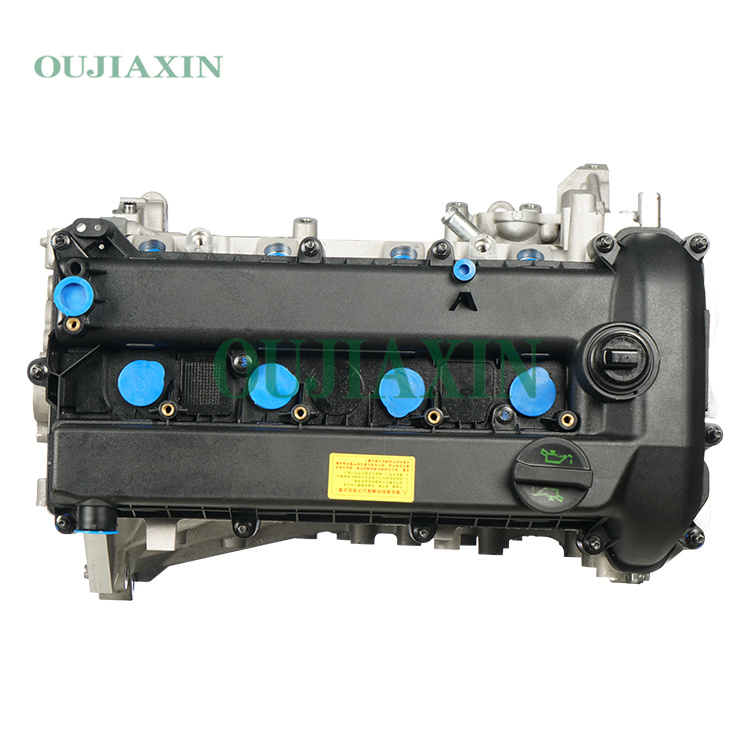

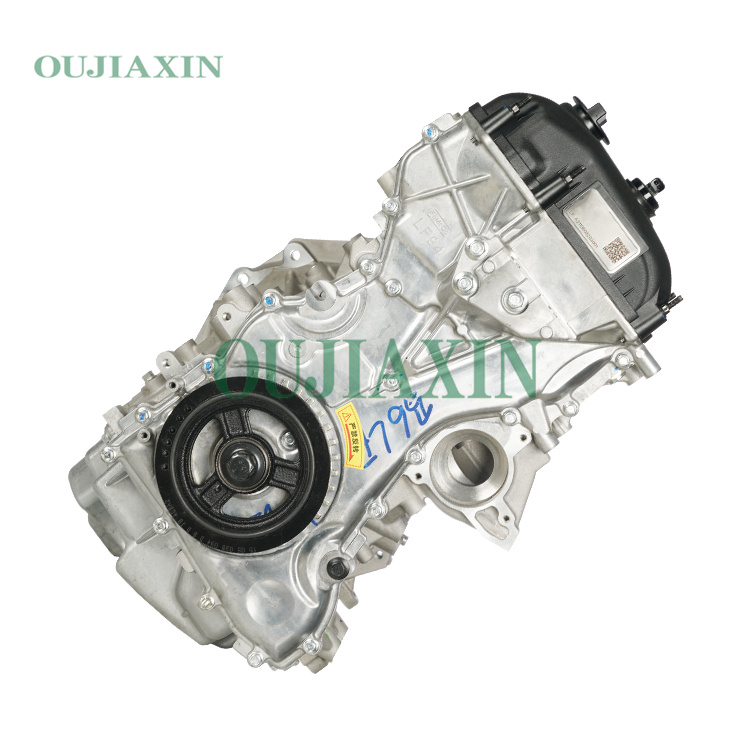

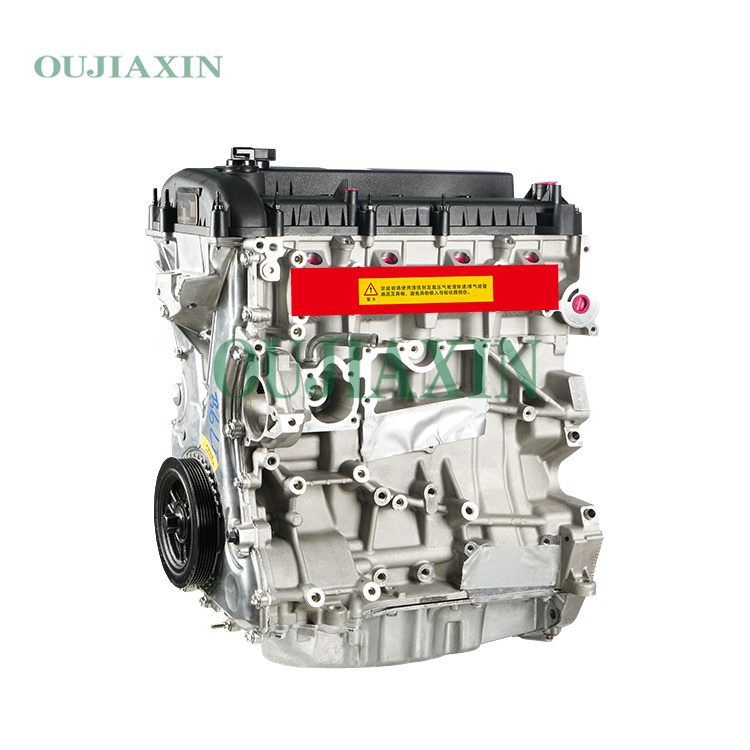

The Mazda LF-DE/LF-VE 2.0L engine belongs to the MZR/L series family and is a 1,999 cc inline-four, naturally aspirated engine. It features a compression ratio of 10:1, a bore of 87.5 mm, and a stroke of 83.1 mm. This engine typically produces 140–145 horsepower and 136 lb-ft (184–185 N·m) of torque.

Description

Key Technical Specifications
Engine Code: LF-DE (Early Version), LF-VE (Variable Valve Timing), LF-VD (Direct Injection)
Displacement: 2.0 L (1,999 cc)
Configuration: Inline-4, DOHC (Double Overhead Camshaft), 16-Valve
Bore × Stroke: 87.5 mm × 83.1 mm (3.44 in × 3.27 in)
Compression Ratio: 10.0:1 (Standard), 10.8:1 (Select Applications), 12.0:1 (Early Skyactiv)
Materials: Aluminum Alloy Block with Cast Iron Liners; Aluminum-Silicon Alloy Cylinder Head
Valve Train: Timing Chain
Firing Order: 1-3-4-2
