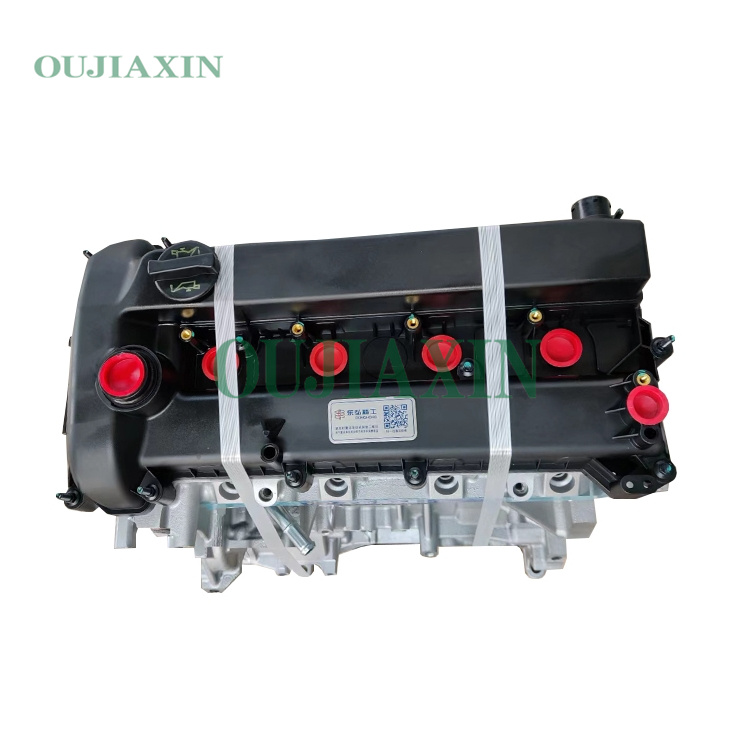

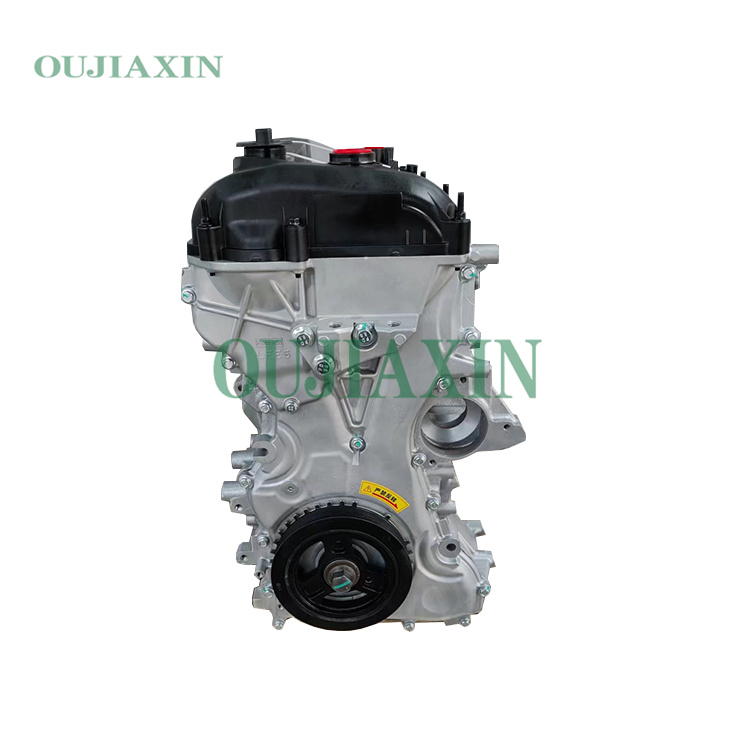

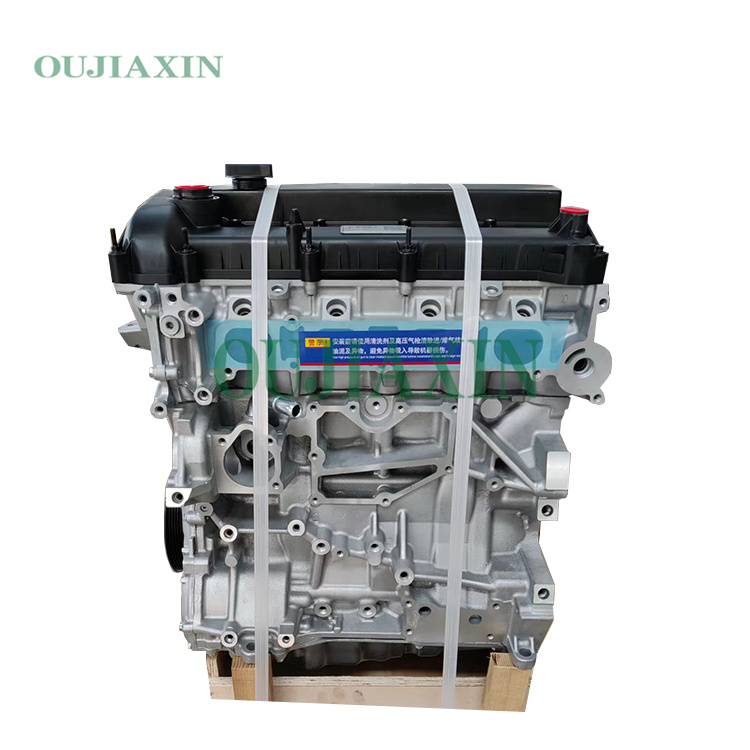

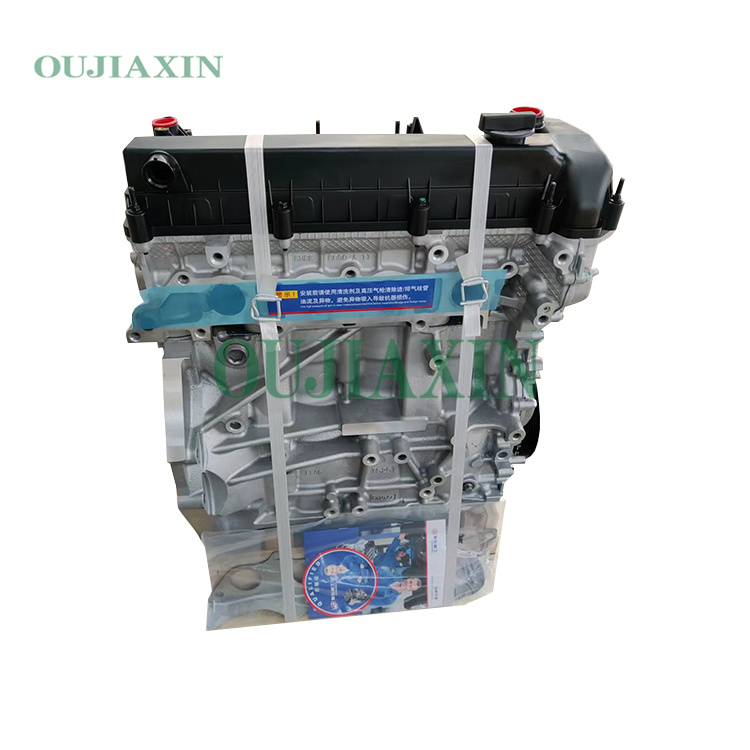

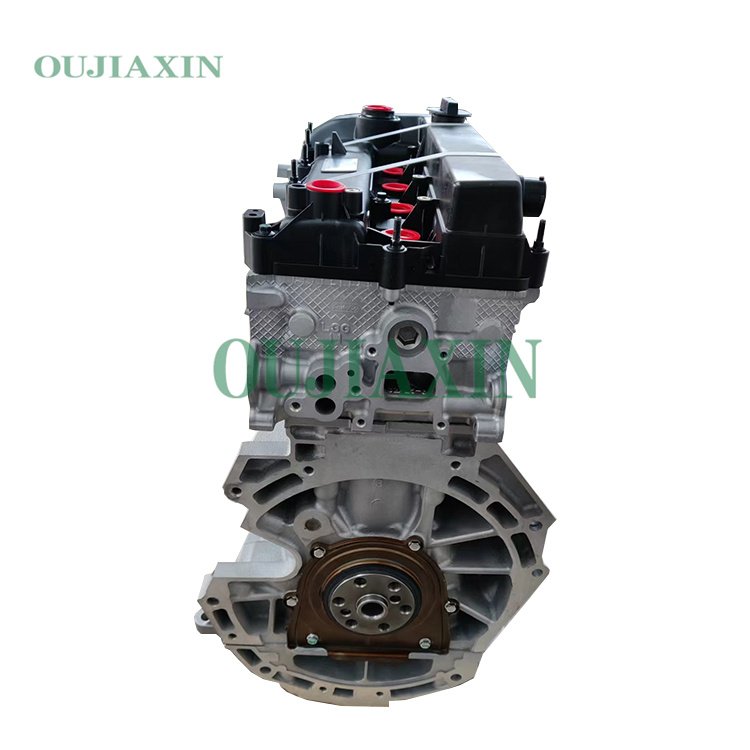

2.3L Engine (Mazda L3)

For Mazda L3 2.3L Engines

The Mazda L3-VE 2.3L engine is a four-cylinder DOHC gasoline engine (produced from 2001 to 2010) featuring an aluminum cylinder block. It generates a maximum power output of 164 horsepower (122 kW) and a peak torque of 154 lb-ft (209 Nm)—these are approximate figures, as specific data varies depending on the vehicle model and year. This engine has a displacement of 2,260 cc and features a compression ratio of either 9.7:1 or 10.6:1.

Description

Core Specifications (L3-VE / Non-Turbocharged Version)
Engine Type: 4-cylinder, DOHC (Dual Overhead Camshaft), 16-valve, Inline-4.
Displacement: 2.3L (2,260 cm³).
Bore x Stroke: 87.5 mm x 94.0 mm (3.44 in x 3.70 in).
Compression Ratio: Approx. 9.7:1 to 10.6:1.
Power: Approx. 150–164 hp 6,000–6,500 rpm.
Torque: Approx. 144–154 lb-ft (195–209 Nm) 4,000–4,500 rpm.
Valve Train: Chain-driven, mechanical bucket tappets (no hydraulic tappets).
Variable Valve Timing: Sequential Valve Timing (S-VT) on the intake side.
