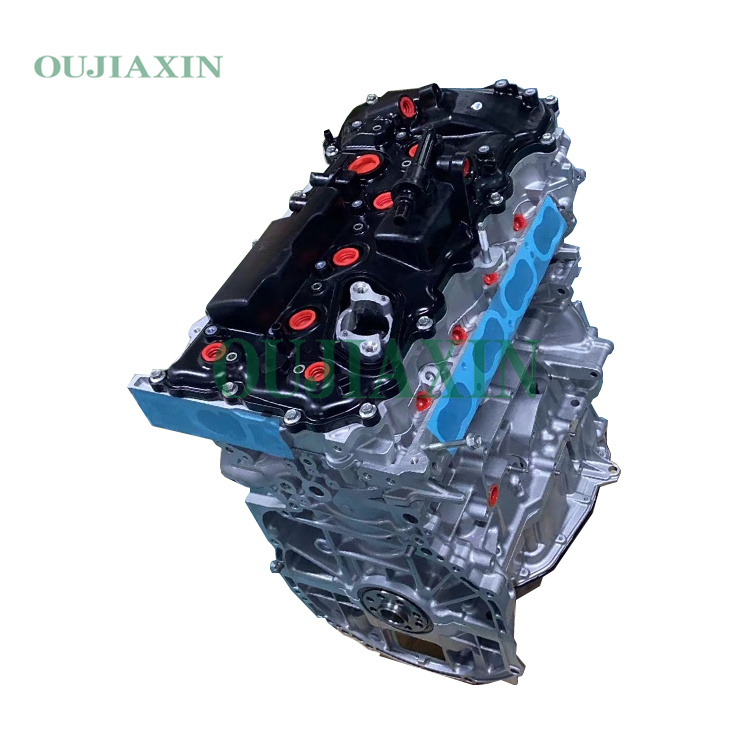

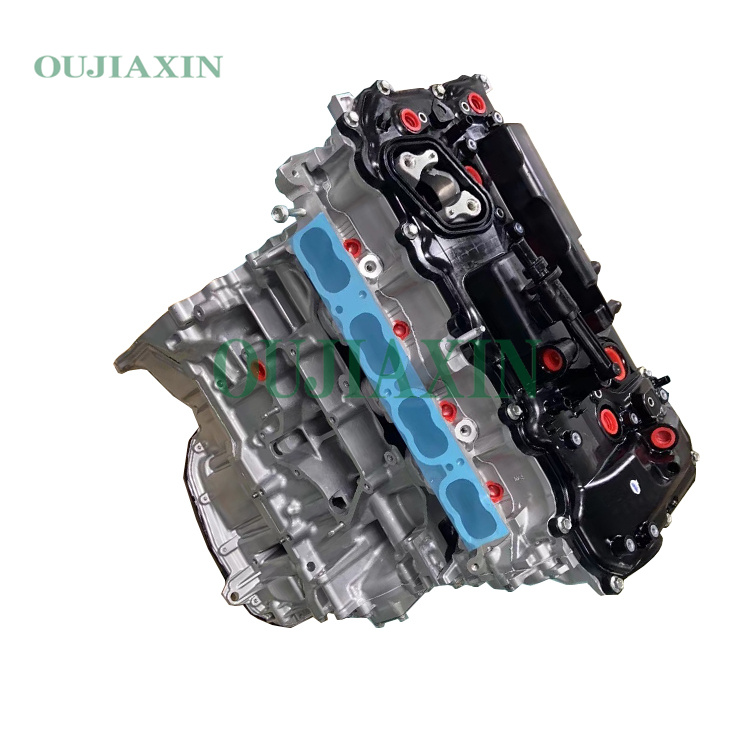

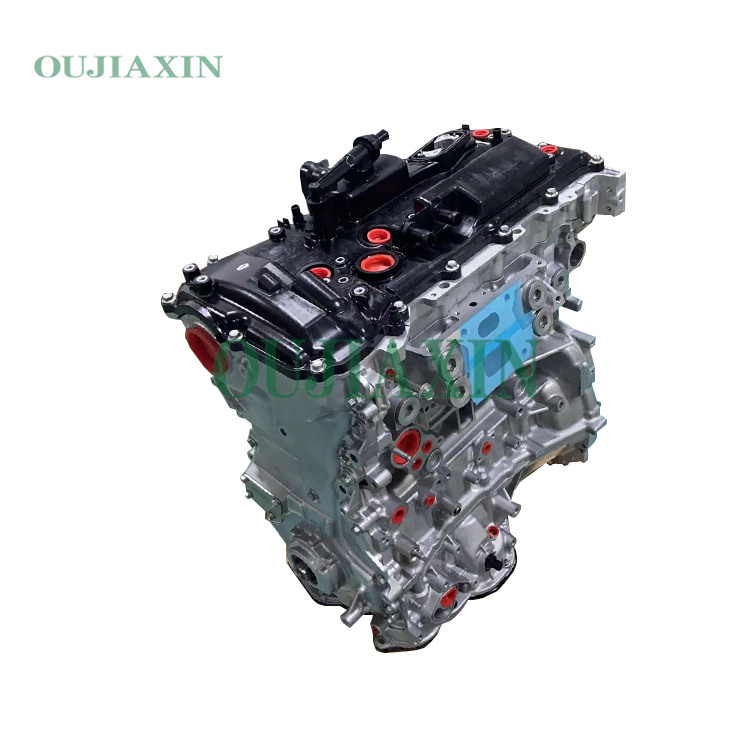

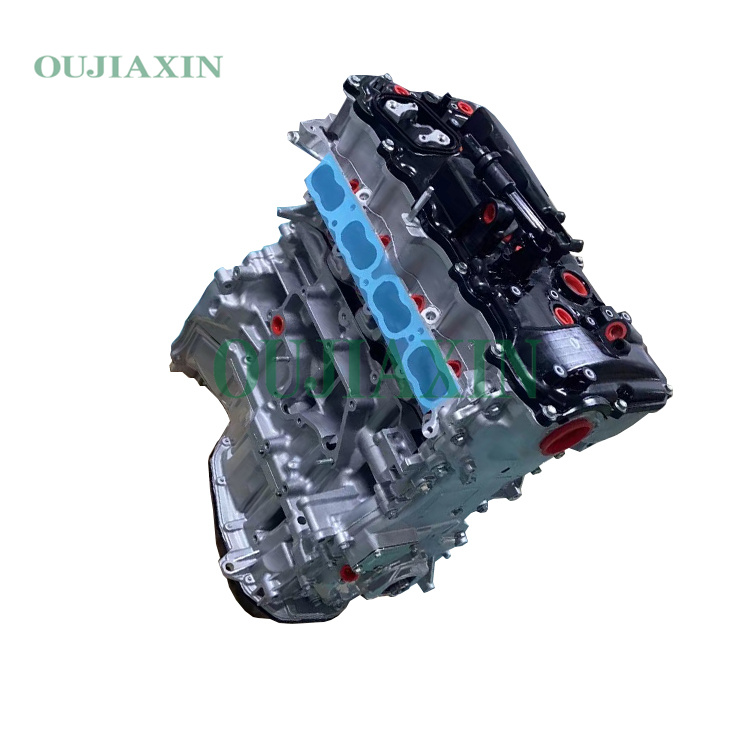

For Lexus/Toyota 2.0L Turbocharged Engine (8AR-FTS)

The Toyota 8AR-FTS is a 2.0-liter (1,998 cc) inline-four turbocharged engine featuring D-4ST technology—a combination of direct injection and port injection—capable of producing between 235 and 241 horsepower and 258 lb-ft of torque. This engine is equipped with a twin-scroll turbocharger and utilizes VVT-iW variable valve timing on the intake side and VVT-i on the exhaust side, with a compression ratio of 10.0:1.

Category: Tag:

Description

8AR-FTS Engine Key Technical Specifications
Engine Type: Inline-4
Displacement: 2.0 Liters (1,998 cc)
Induction: Twin-Scroll Turbocharged (with Intercooler)
Max Horsepower: 235–241 hp 4,800–5,600 rpm
Max Torque: 258 lb-ft (350 Nm)  1,650–4,000 rpm (or 4,400 rpm)
Bore x Stroke: 86.0 mm x 86.0 mm (Square Design)
Compression Ratio: 10.0:1
Fuel System: D-4ST (Combined Direct Injection and Port Injection System)
Valvetrain: 16-Valve DOHC; VVT-iW (Intake), VVT-i (Exhaust)
Max Boost Pressure: Approx. 1.17 bar (17 psi)
Oil Type: 0W-20 Full Synthetic Oil

Common Applicable Models
2015–2018 Lexus NX200t
2018–2021 Lexus NX300
2017–2019 Lexus IS200t / IS300
2017–2019 Lexus RC200t / RC300
Lexus GS200t / GS300
