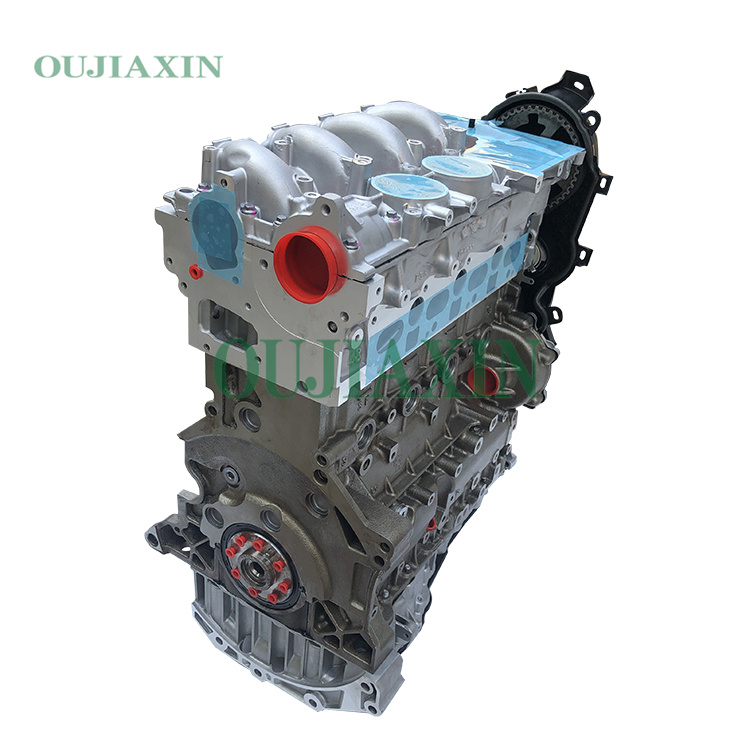

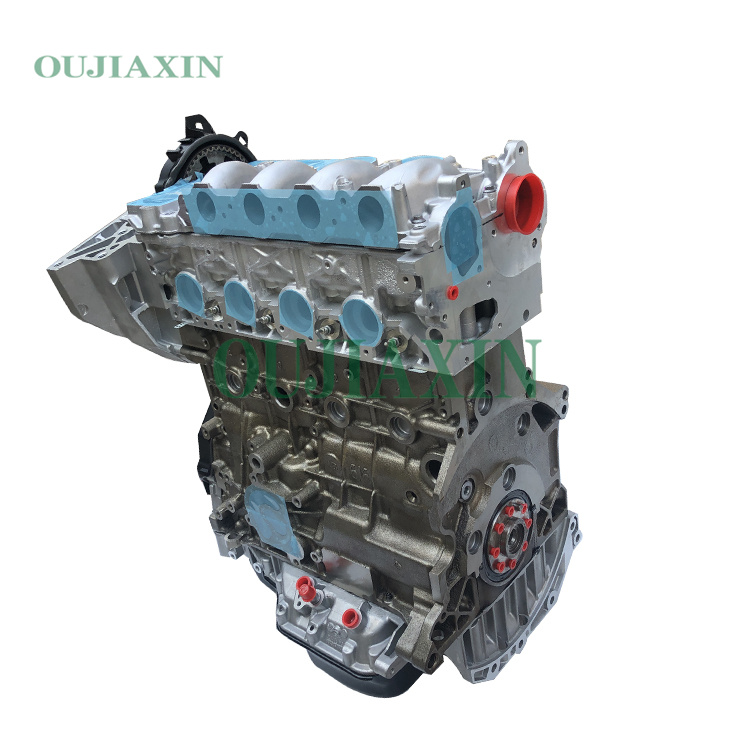

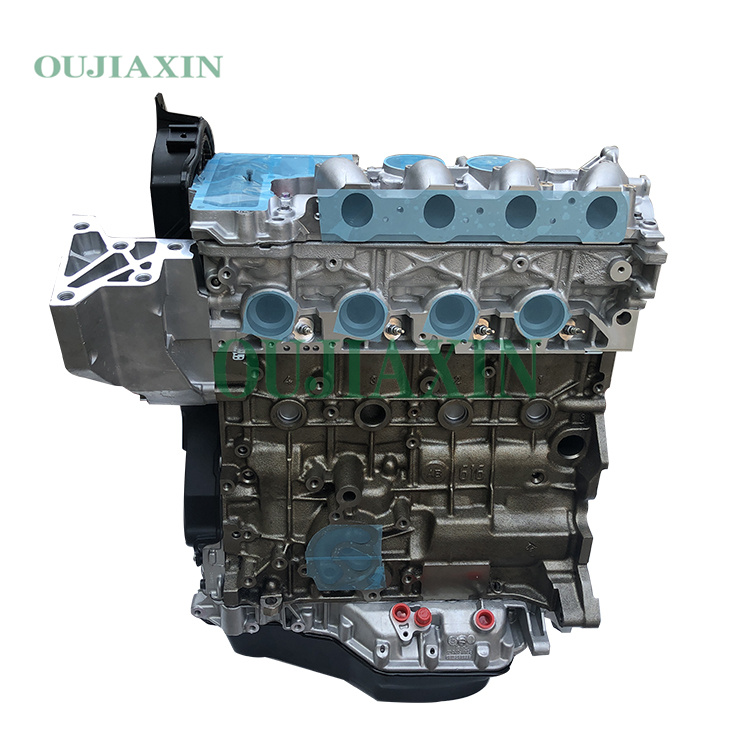

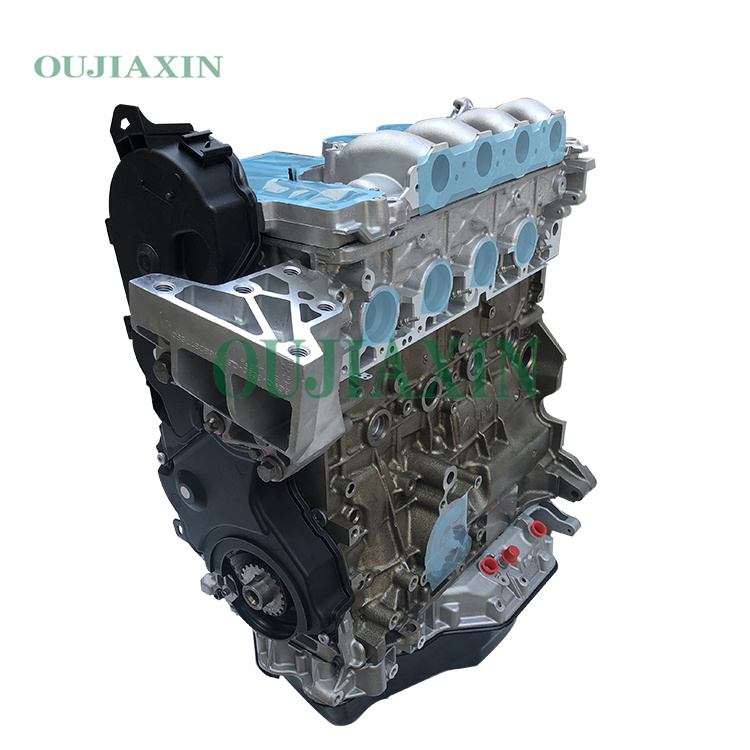

For Land Rover 2.2T Diesel Engine (224DT)
The Land Rover 2.2T diesel engine (model 224DT, part of the Ford/PSA “Lion” engine family) is a 2.2-liter, four-cylinder turbocharged diesel engine produced between 2006 and 2016. It was primarily featured in models such as the Freelander 2, Range Rover Evoque, and Defender. Its key technical specifications include: a maximum power output of approximately 150 to 190 horsepower, a peak torque of 400 to 440 Newton-meters, an all-aluminum alloy construction, and a compression ratio of 16.2:1.
Description
224DT Engine Technical Specifications
Engine Code: 224DT / 2.2L TD4 / SD4
Displacement: 2,179 cc (2.2 liters)
Cylinder Configuration: Inline-4
Type: Four-stroke, water-cooled, turbocharged diesel engine
Cylinder Block Material: Aluminum-silicon alloy (with cast-iron liners)
Fuel System: High-pressure direct injection
Compression Ratio: 16.2:1
Power Output: 110 kW (150 PS) to 140 kW (190 HP) (depending on tuning variant)
Torque Output: 400 Nm to 440 Nm
Main Applicable Models:
Land Rover Freelander 2 / LR2 (L359): 2006–2014 Models;
Land Rover Range Rover Evoque: 2011–2016 Models;
Land Rover Defender: 2011–2016 Models (2.2L Final Edition);
Land Rover Discovery Sport (L550): Early Models
