for Hyundai Elantra 2.0 Accent I30 IX25 Verna KIA K2 transmission 1.4L 1.6L A4CF1 A4CF2 automatic transmissions

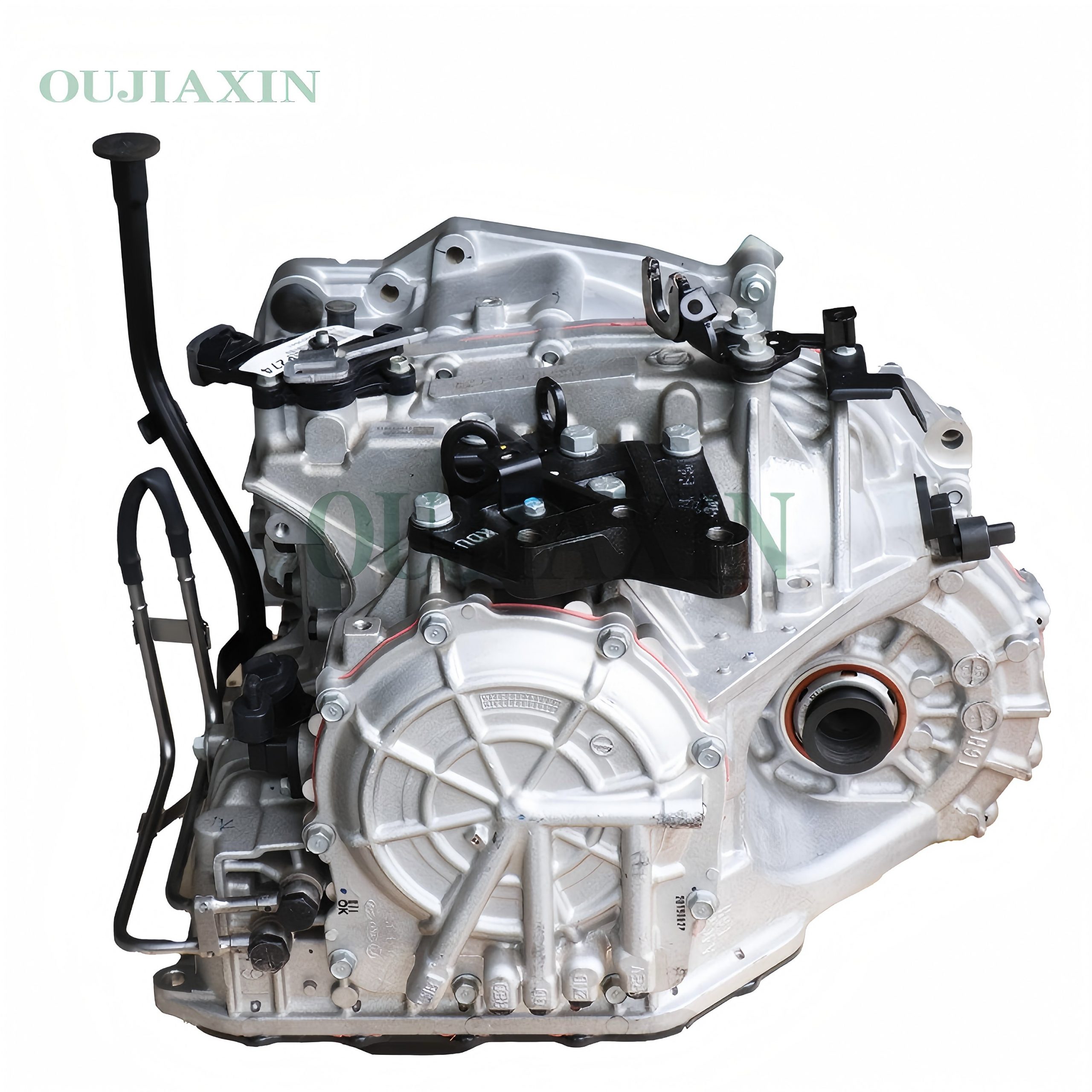

The A4CF1 and A4CF2 are 4-speed front-wheel-drive (FWD) automatic transaxles developed by Hyundai and Kia. They are primarily installed in compact cars equipped with 1.4L, 1.6L, and 2.0L engines (such as the Hyundai Elantra and Accent, and the Kia Soul).

Category: Tag:

Description

General Specifications
Transmission Type: 4-speed front-wheel drive (FWD) automatic transmission with a lock-up torque converter (4th gear is overdrive).

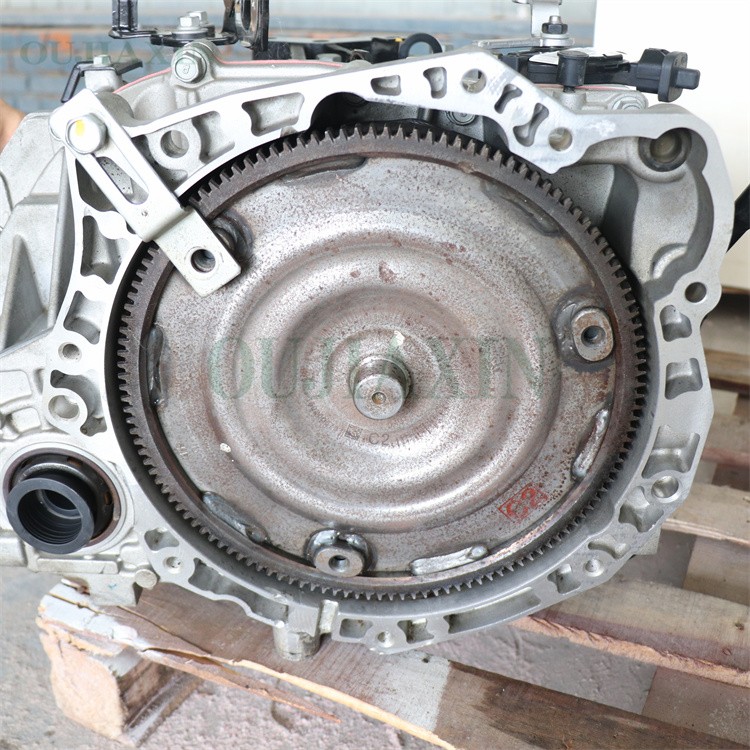

Torque Converter: 236 mm diameter; three-element, two-phase, single-stage type.
Internal Structure: Tandem planetary gear sets controlled by five multi-plate clutches and one low-speed one-way clutch (sprag).
Valve Body Location: Bottom-mounted.

Gear Ratios (using the Gamma 1.4/1.6 engine as an example)
1st Gear: 2.919
2nd Gear: 1.551
3rd Gear: 1.000
4th Gear: 0.713
Reverse: 2.480
