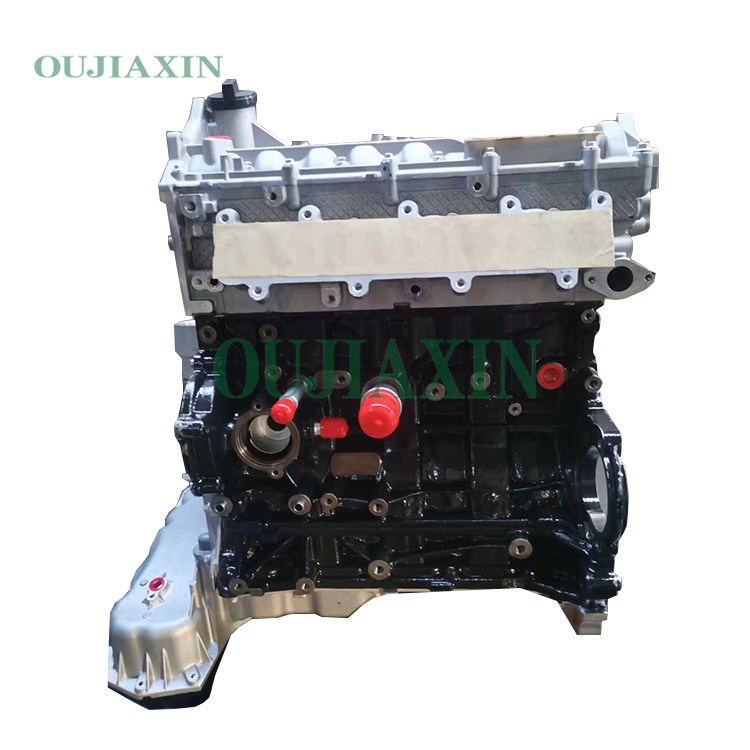

For Greatwall 2.0T diesel engine GW4D20M

The Great Wall Motor (GWM) GW4D20M 2.0T diesel engine is a four-cylinder, 16-valve turbocharged engine designed specifically to deliver high performance and efficiency while meeting China’s National VI emission standards. It produces a maximum power output of 120 kW (approximately 160–163 horsepower) at 3,600 rpm, with peak torque ranging from 400 to 500 Nm. Incorporating VGT (Variable Geometry Turbocharger), DOHC (Double Overhead Camshaft), and common rail injection technologies, this engine is now widely utilized in GWM’s “Poer” and “Wingle” series pickup trucks.

Category: Tag:

Description

Key Technical Specifications (GW4D20M):
Engine Type: 4-cylinder, 4-stroke, Inline
Displacement: 1,996 cc (2.0L)
Max. Power: 120 kW (163 HP)  3600 rpm
Max. Torque: 400 N·m  1500–2500 rpm (Up to 500 N·m on select models)
Compression Ratio: 16.2:1
Intake System: Turbocharged (VGT) with Intercooler
Valve Mechanism: DOHC (Dual Overhead Camshaft), 16-valve
Fuel Type: Diesel
Emission Standard: China VI
