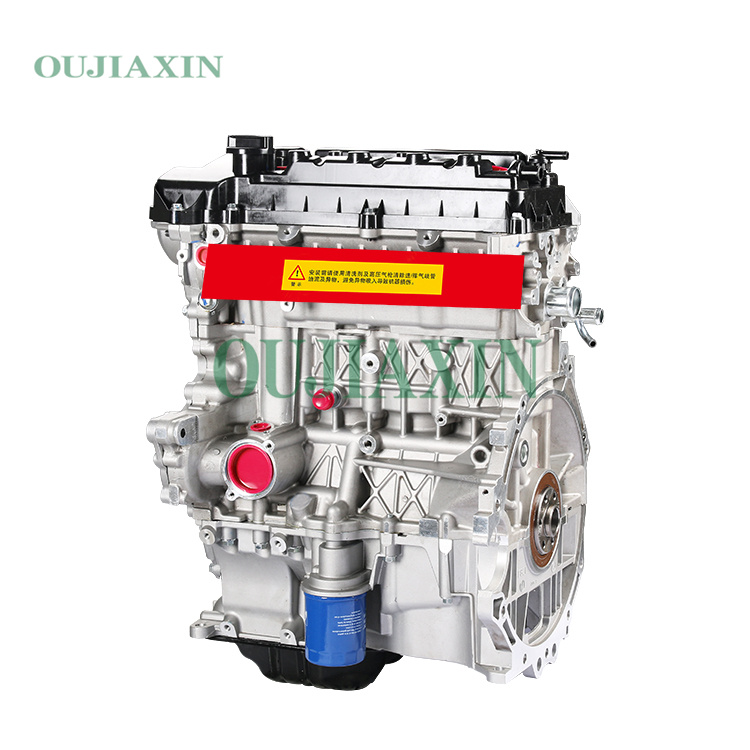

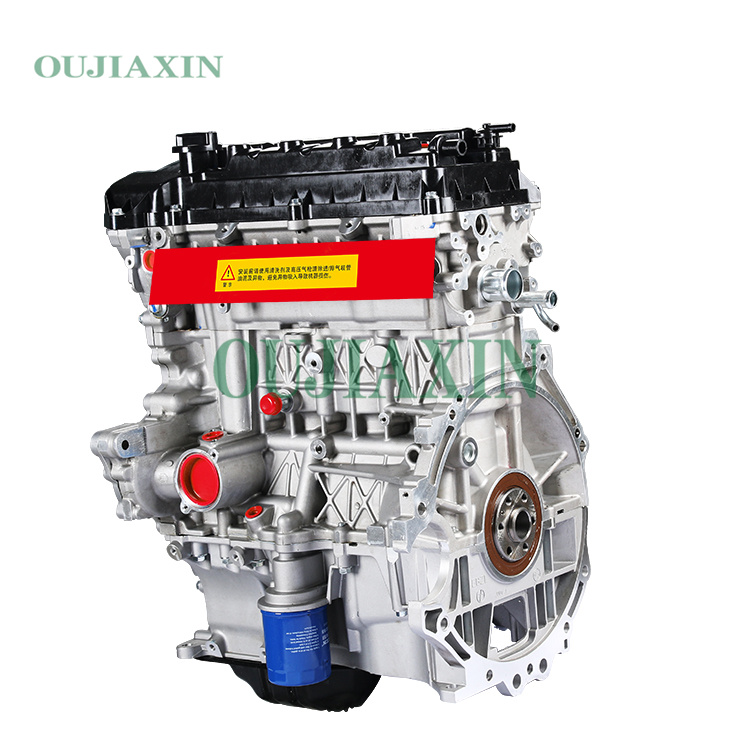

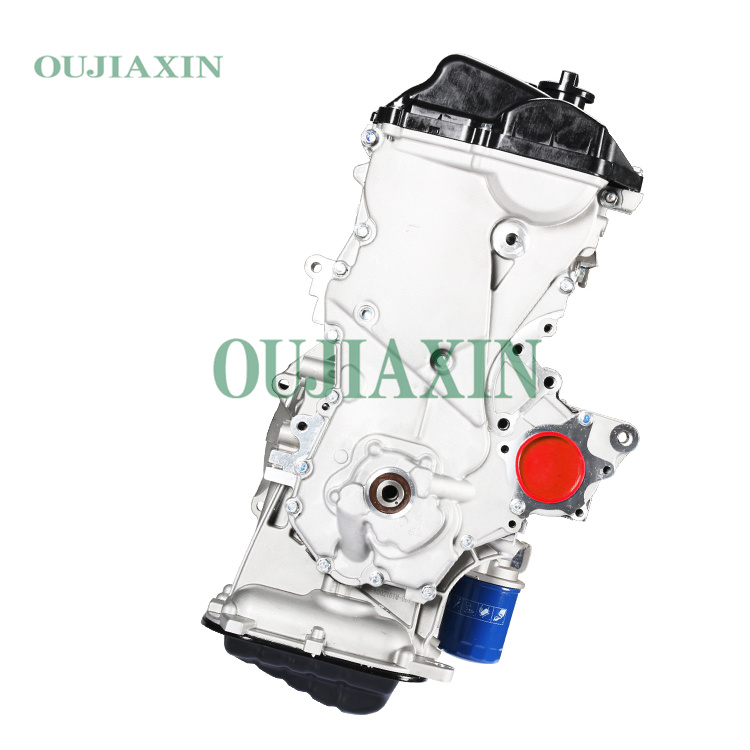

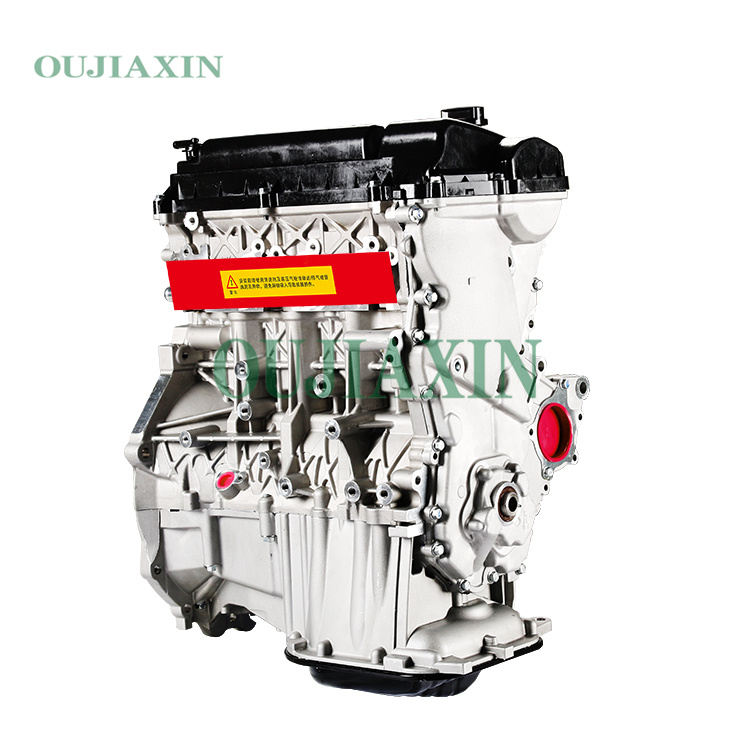

For Fengjun 5 1.5T GW4G15K GW4G15 5MT gasoline engine
The Great Wall GW4G15 is a 1.5-liter naturally aspirated gasoline engine featuring VVT (Variable Valve Timing), DOHC, and a four-cylinder layout; at 6,000 rpm, it produces a maximum power output of approximately 77 kW (103.5–105 hp) and a peak torque of 138 N·m (102 lb·ft). Designed specifically for high efficiency, this all-aluminum engine is commonly found in models such as the Great Wall Florid, C30, and Haval H1.
Description
GW4G15 Engine Key Technical Specifications
Engine Type: Inline 4-Cylinder (Gasoline)
Displacement: 1.5L (1497 cc)
Valve Train: DOHC, 16-Valve, WVT
Max. Power: 77 kW (103.5–105 hp) 6000 rpm
Max. Torque: 138 N·m (102 lb·ft) 4200 rpm
Bore × Stroke: 75 mm × 84.7 mm
Compression Ratio: 10.5:1
Emission Standard: Euro IV
Material: Aluminum Alloy (Cylinder Block & Cylinder Head)
