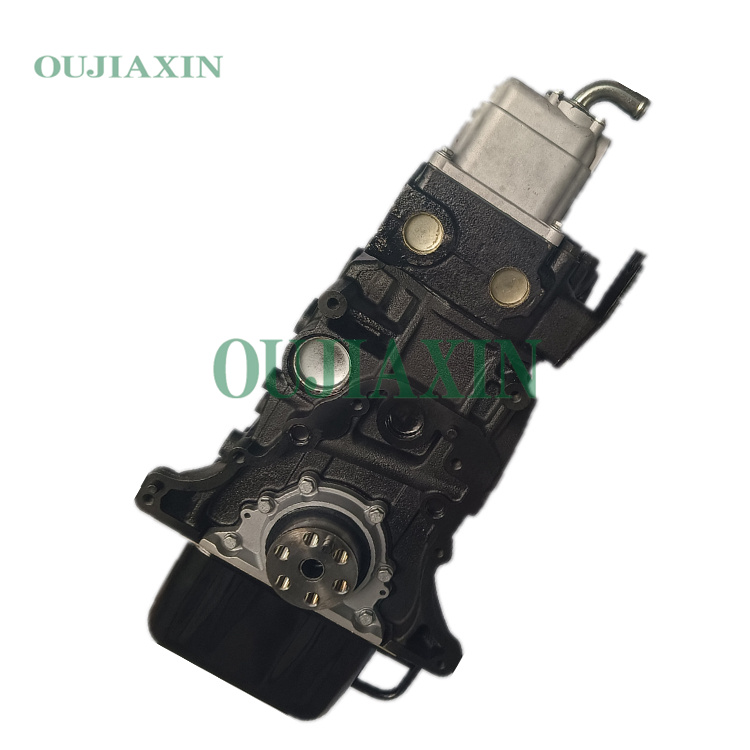

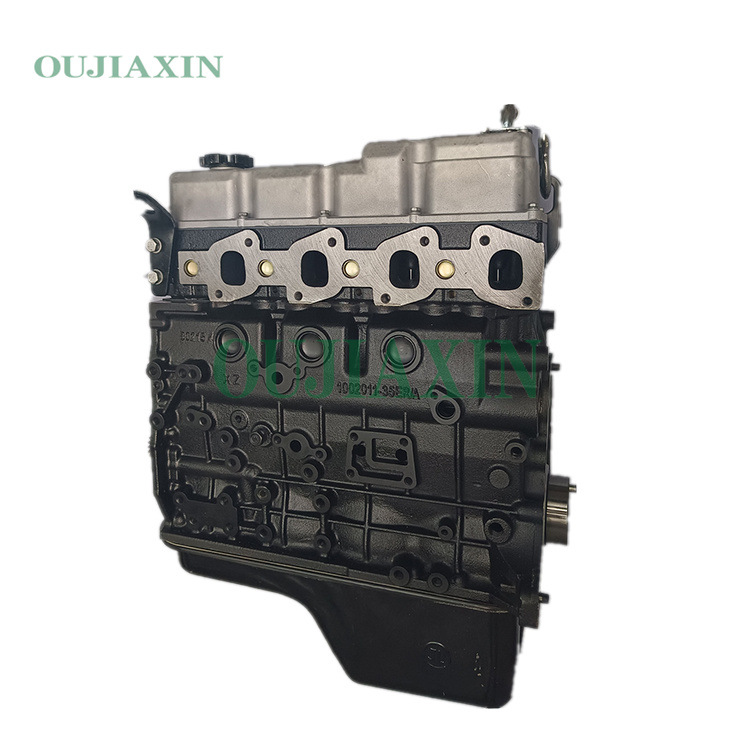

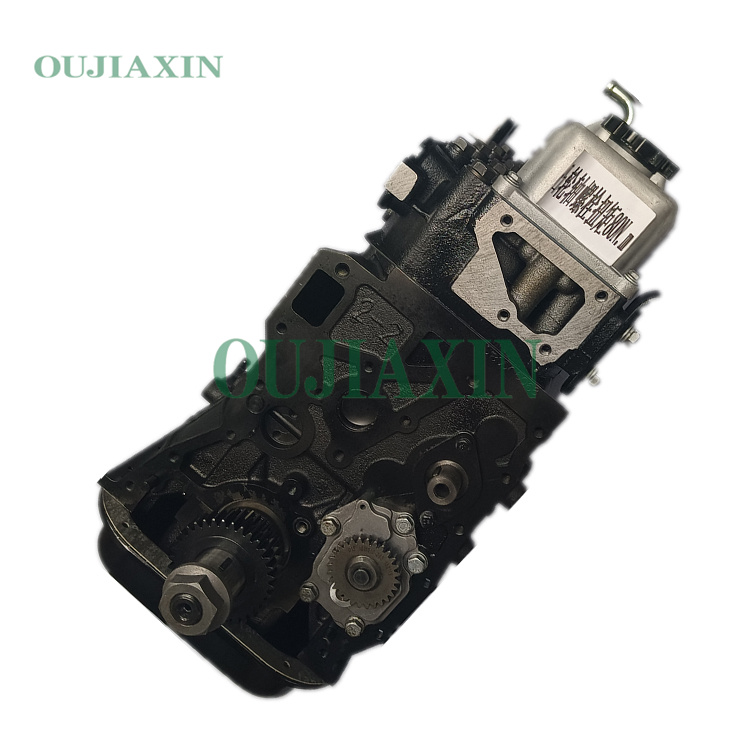

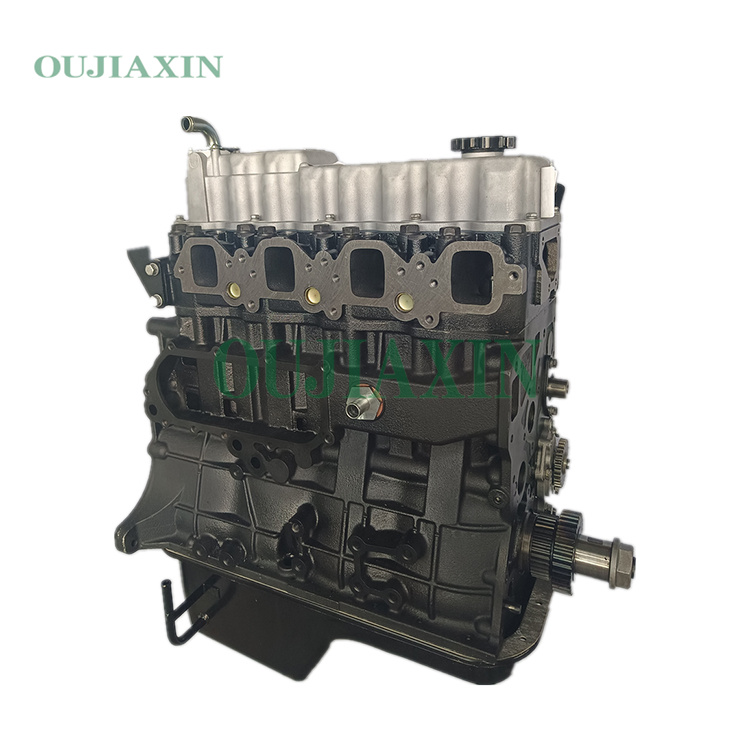

For Dachai 4DC3 diesel engine

The Dachai 4DC3 engine is a four-cylinder, turbocharged diesel engine primarily utilized in light commercial vehicles, forklifts, and small-scale machinery. This engine employs a gear-reduction starting system, equipped with a 10-tooth pinion and a 1.8 kW starter motor, enabling it to deliver reliable power output.

Category: Tag:

Description

Dachai 4DC3 Engine — Key Technical Specifications:
Engine Type: Four-stroke, inline four-cylinder, water-cooled diesel engine
Intake System: Turbocharged
Starting Method: Gear-reduction type (10-tooth)
Starter Rated Power: 1.8 kW
Fuel Injection System: Electronically controlled VE pump (common configuration) or mechanical fuel system
Applications: Trucks, forklifts, light-duty construction machinery

Engine Series: Dachai 4DC Series (4DC3)
Configuration: 4-Cylinder Diesel Engine
Displacement: 3.168 L (3,168 cm³)
Bore × Stroke: 100 mm × 101 mm
