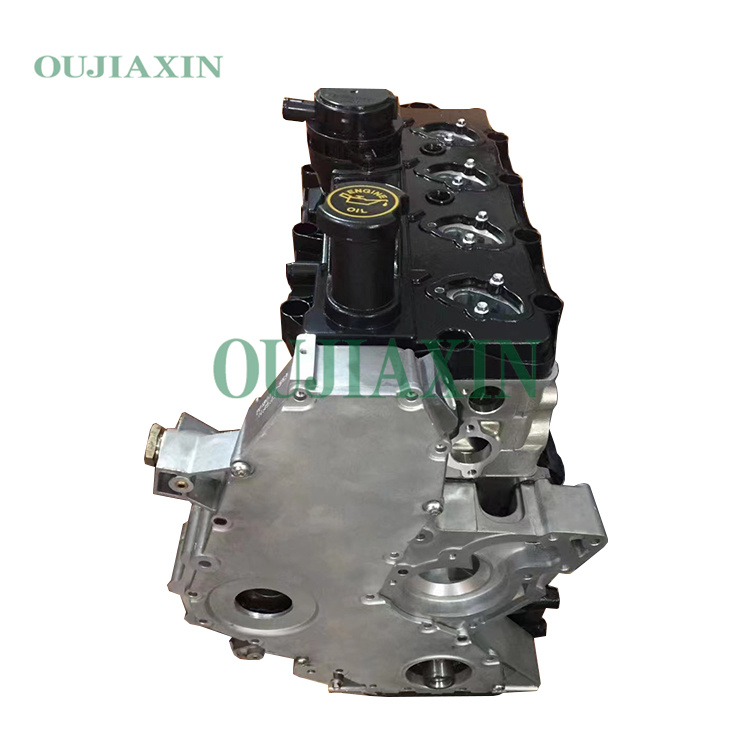

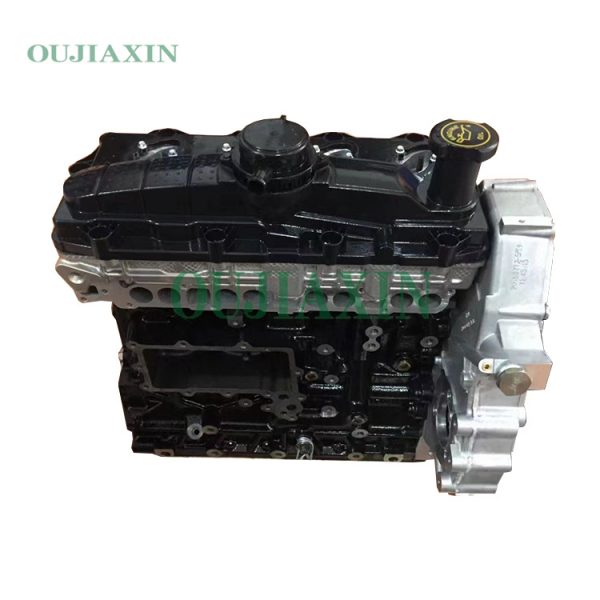

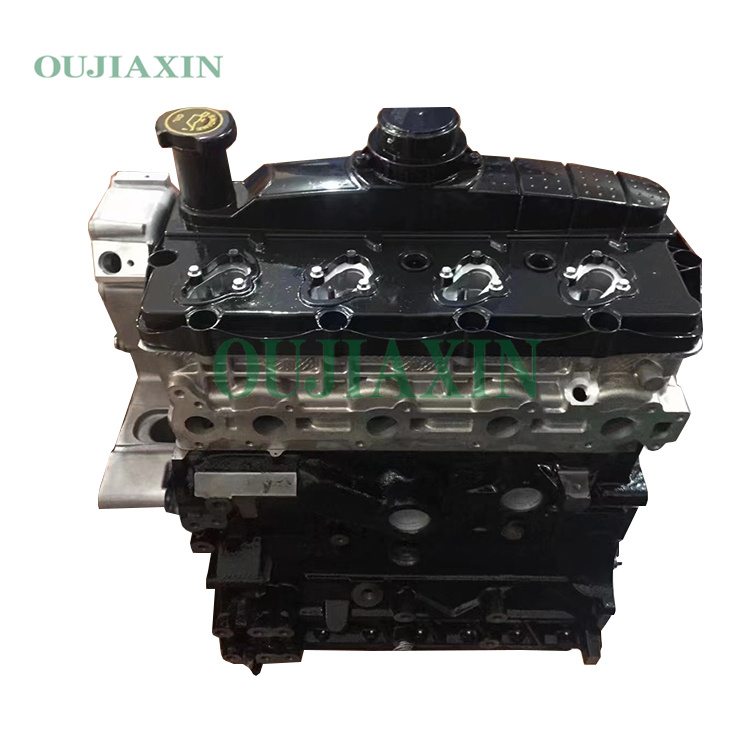

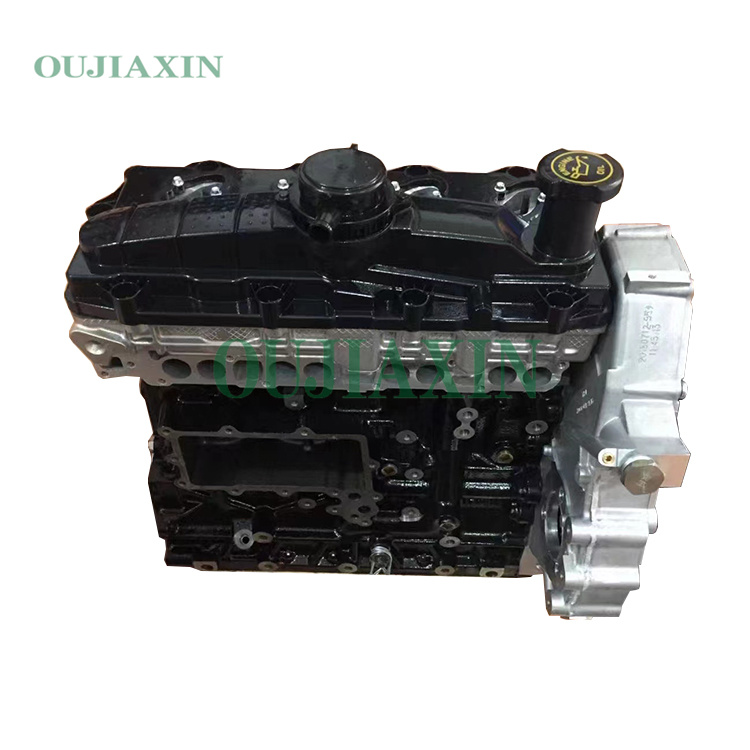

Chaochai NGD3.0 Engine
Chaochai NGD3.0 Engine
Chaochai NGD3.0 Engine
Chaochai NGD3.0 Engine
  1. Chaochai NGD3.0 Engine
  2. Chaochai NGD3.0 Engine
  3. Chaochai NGD3.0 Engine
  4. Chaochai NGD3.0 Engine

For Chaochai NGD 3.0 diesel engine

The Chaochai NGD3.0 is a 3.0-liter, four-cylinder, water-cooled diesel engine designed primarily for light-duty trucks and pickup trucks, capable of delivering approximately 150 to 180 horsepower. Its core technological features include high-pressure common rail direct injection, Variable Nozzle Turbine (VNT) turbocharging, and a four-valve-per-cylinder design; models currently available comply with both “National V” and “National VI” emission standards.

Category: Tag:

Description

Key Technical Specifications (NGD3.0 Series)
Engine Type: 4-stroke, Inline 4-cylinder, Water-cooled
Displacement: 2.968 L
Bore × Stroke: 96 × 102.5 mm
Max. Power: 110 – 120 kW (147 – 160 hp)  2800 – 3800 rpm
Max. Torque: 320 – 480 Nm
Emission Standards: China V, China VI, China IV, China III
Fuel Consumption Rate: ≤ 200 g/kW·h (China VI Models)
