FIT 07-13 TOYOTA CAMRY SOLARA RAV4 MATRIX 2AZFE 2.4L 2AZFE NPR PISTON KIT (For: Toyota)

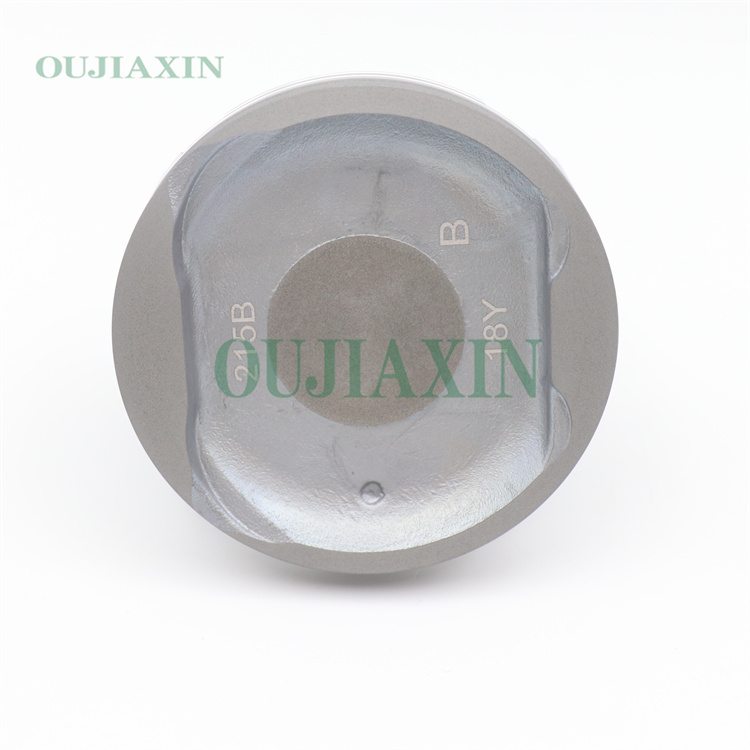

The Toyota 2AZ-FE Standard (STD) piston assembly is designed specifically for an 88.5 mm bore. It features a domed crown design, a piston pin diameter of 22 mm, and a compression height of approximately 33 mm (1.299 inches). Typically manufactured from ZL109 aluminum alloy, the standard piston has an OEM nominal diameter ranging from 88.477 to 88.487 mm, with a standard oil clearance of 0.021 to 0.044 mm.

Category: Tag:

Description

2AZ-FE Standard Piston Key Specifications:
Bore: 88.5 mm (Standard)
Piston Diameter: 88.477 to 88.487 mm (Measurement taken 44.3 mm from the piston crown)
Compression Height: 1.299 inches / 33 mm

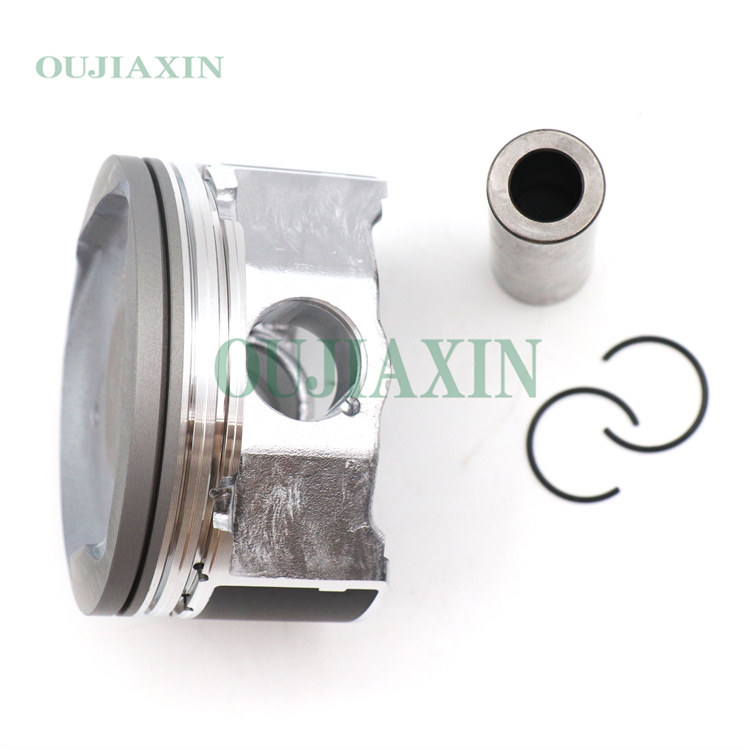

Piston Pin Diameter: 22 mm (0.866 inches)
Material: ZL109 Aluminum Alloy
Compression Ratio: 9.0:1
Piston-to-Cylinder Wall Clearance: 0.021 to 0.044 mm (Standard)

OE Number: 13101-28031
