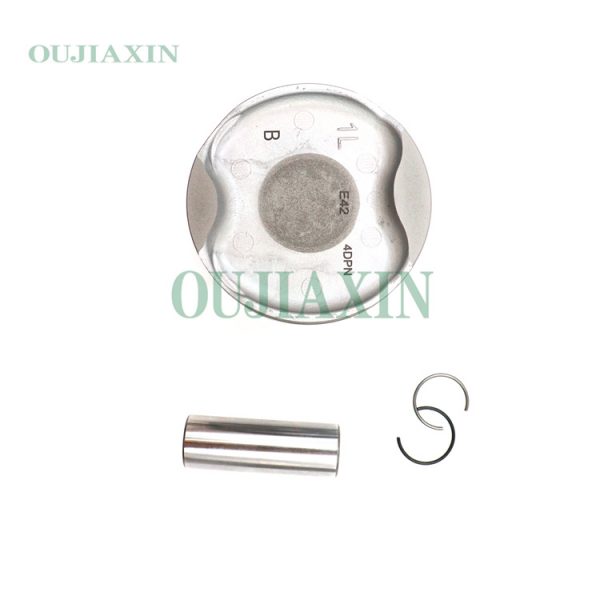

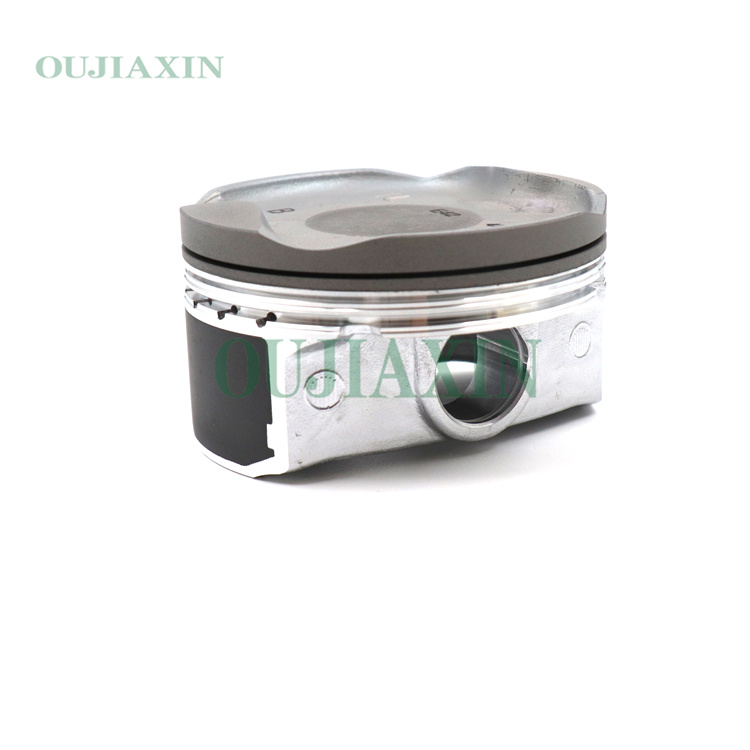

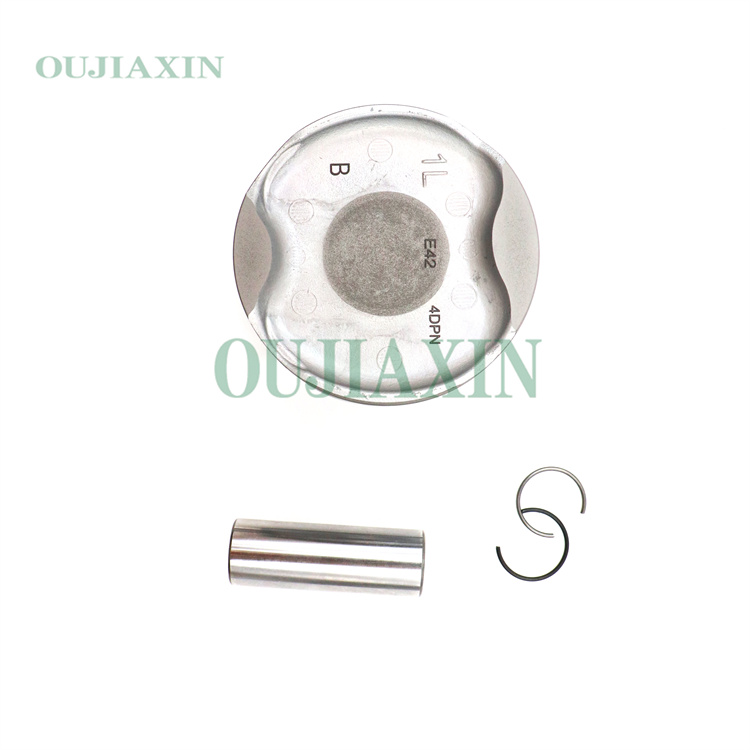

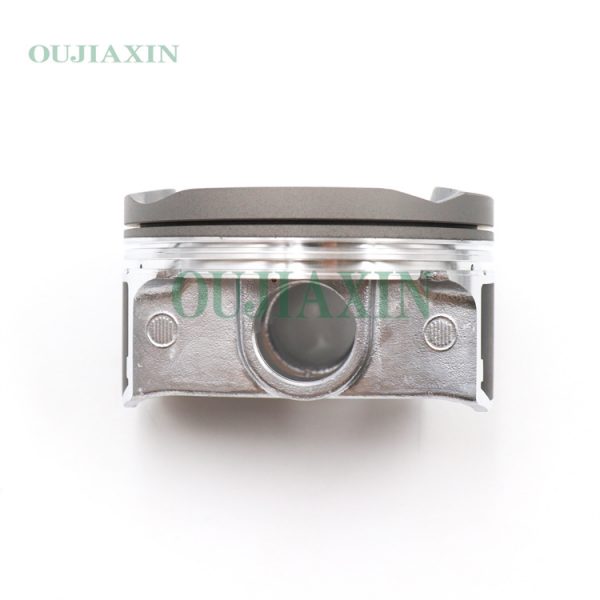

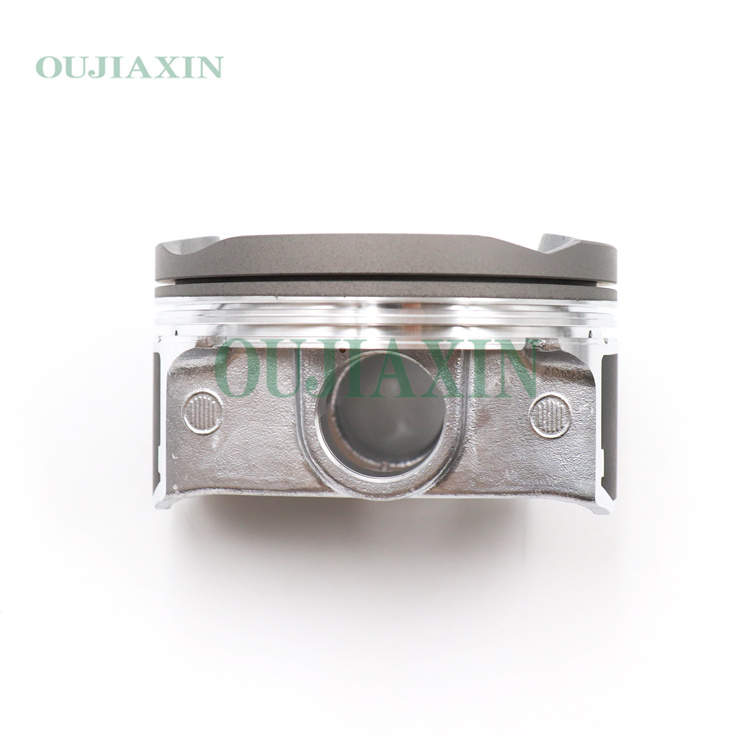

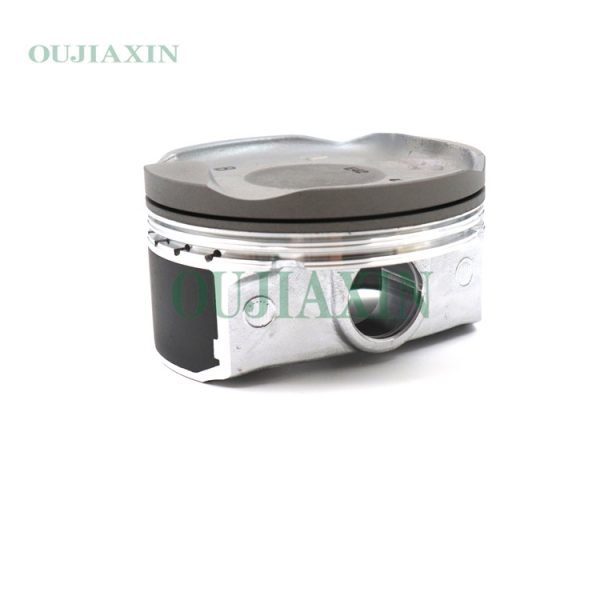

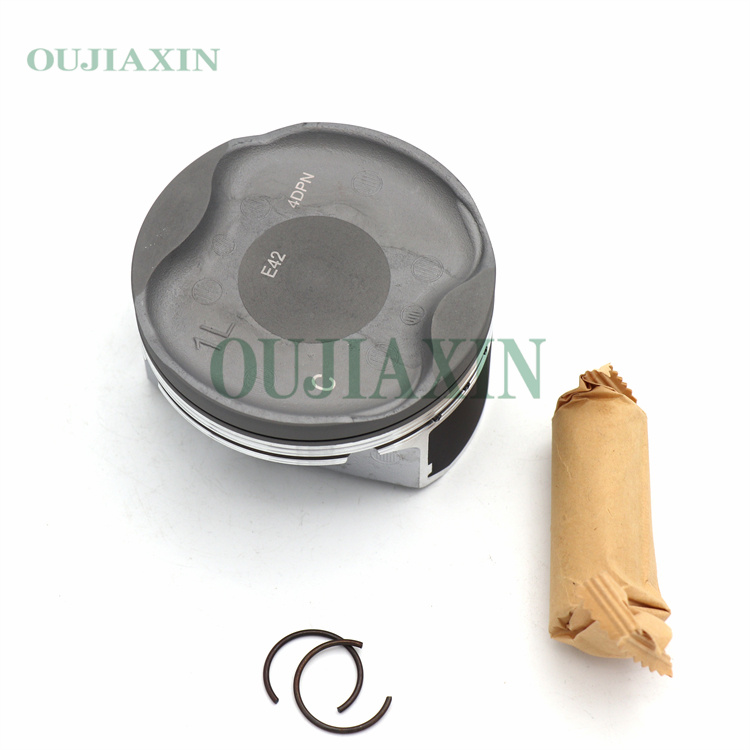

1AR-FE Engine Piston Kit for Toyota Highlander / Sienna 2.7L

Engine Piston Set Fits 09-19 Toyota Highlander Sienna 2.7L 1AR-FE (For: Toyota)

The standard bore diameter for the Toyota 1AR-FE (2.7L) piston assembly is 90.00 mm. Common aftermarket kits typically include four pistons, piston pins, and piston rings; the compression height is typically 31.60 mm, and the total length is 52.90 mm. The piston ring specifications are typically 1.0 mm × 1.0 mm × 2.0 mm.

Description

1AR-FE Piston Key Specifications:
Engine: 2.7L (2,672 cc) 4-Cylinder, DOHC 16-Valve.
Bore (STD): 90.00 mm.
Compression Height (CD): 31.60 mm.
Total Length (TL): 52.90 mm.
Piston Pin Diameter: 22.00 mm.
Piston Ring Dimensions: Top Ring: 1.0 mm; Second Ring: 1.0 mm; Oil Ring: 2.0 mm. Oversize Options: Available (including 0.25 mm and 0.50 mm).
Applicable Models: Toyota Highlander (2009–2013 and 2013+ models), Sienna (2010+ models), Venza (2008–2017 models).

OE Number: 13211-36041-BO
