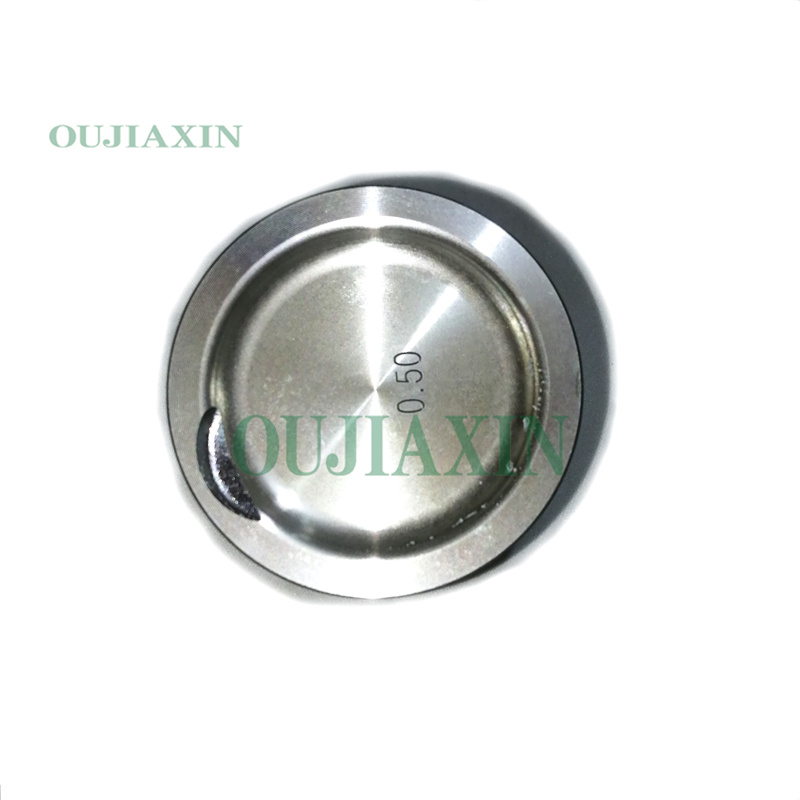

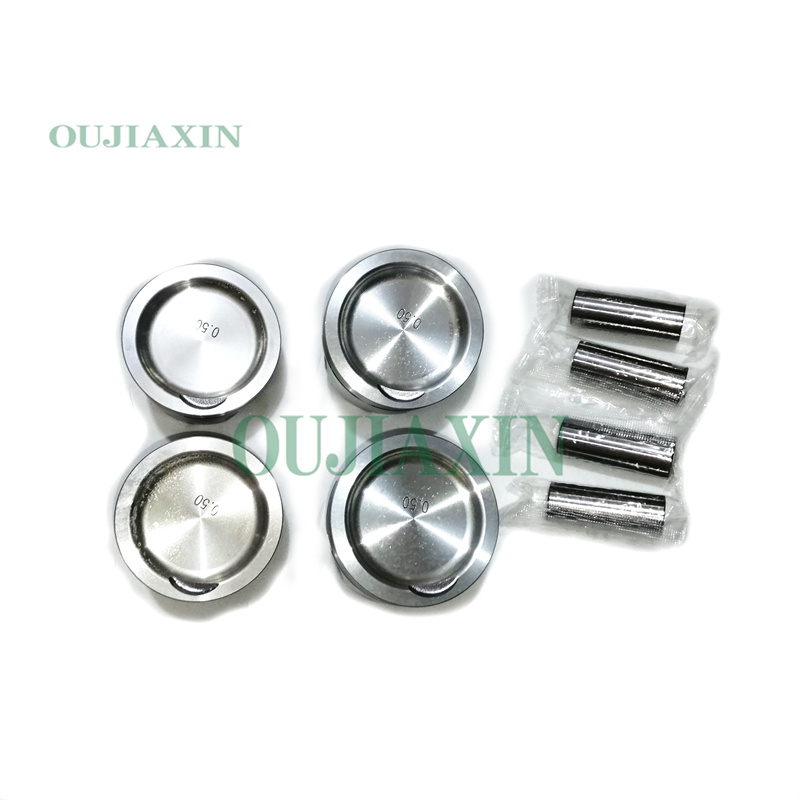

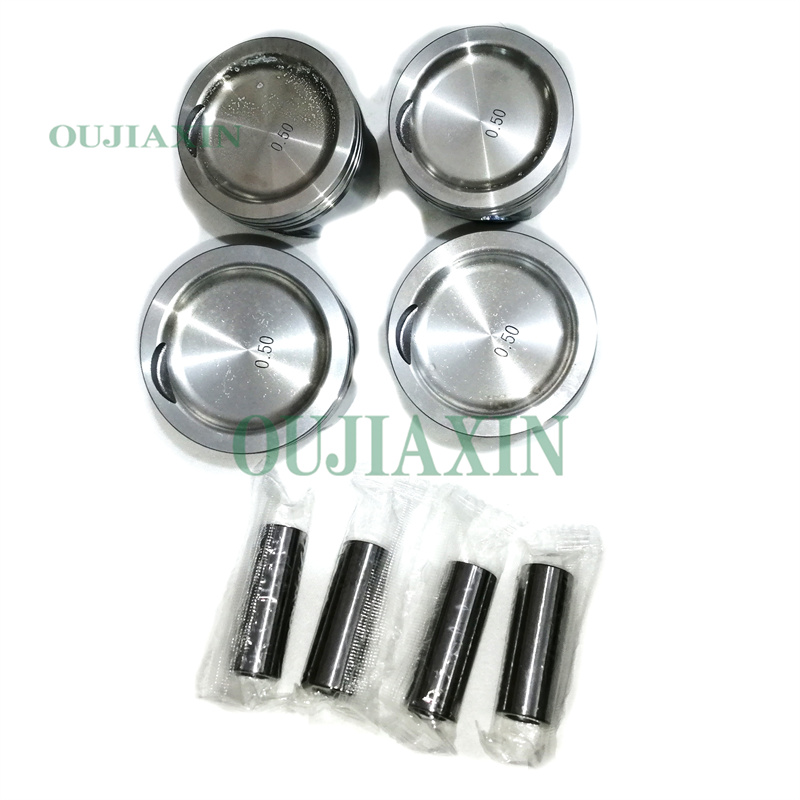

Engine Piston Kit 23410-02270 (i10 1.1L, 67mm) for Hyundai/Kia G4HG G4HE

Description

Piston Basic Dimensions
Standard cylinder bore: 67.00 mm (approx. 2.6378 inches)
Piston outer diameter: 66.97 mm – 67.00 mm
Piston-to-cylinder clearance: 0.020 mm – 0.040 mm
Piston pin diameter: 17.00 mm
Compression height (CD): 24.60 mm
Total length (TL): 48.60 mm

Piston Ring Dimensions
1st ring thickness: 1.20 mm (compression ring)
2nd ring thickness: 1.20 mm (compression/scraper ring)
Oil ring thickness: 2.00 mm
Ring side clearance: 0.04 mm – 0.08 mm for compression rings; 0.15 mm – 0.36 mm for oil rings
Ring end gap: 0.15 mm – 0.25 mm for compression rings; 0.25 mm – 0.40 mm for oil rings
