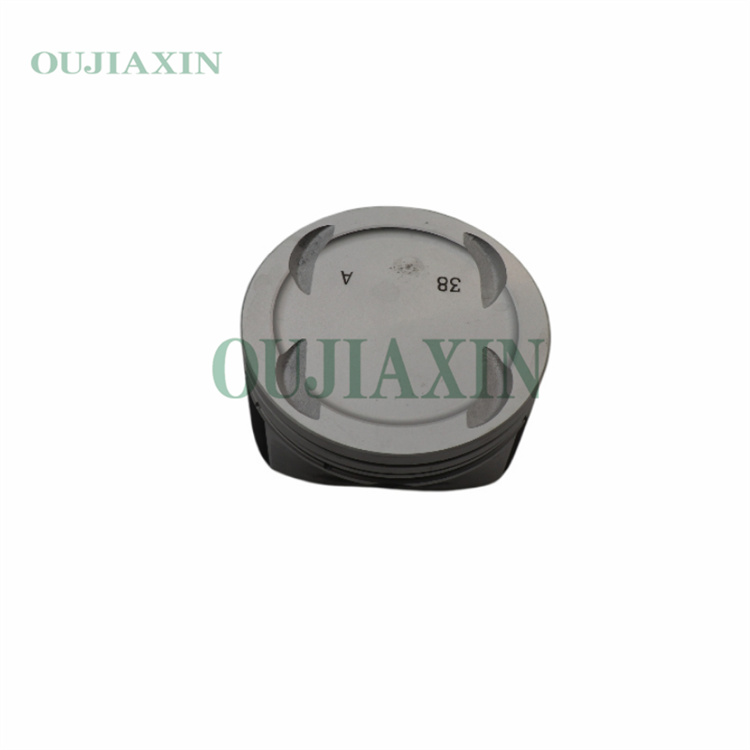

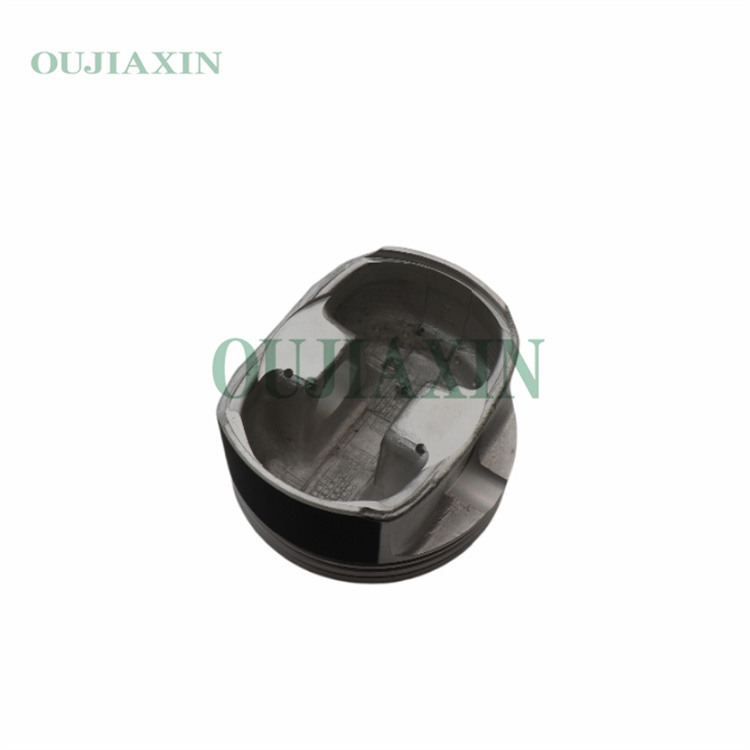

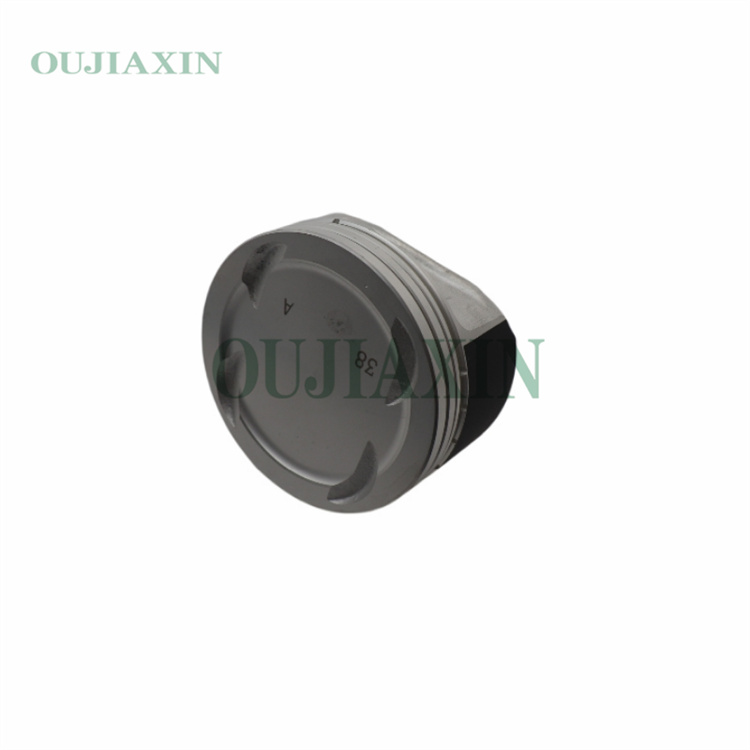

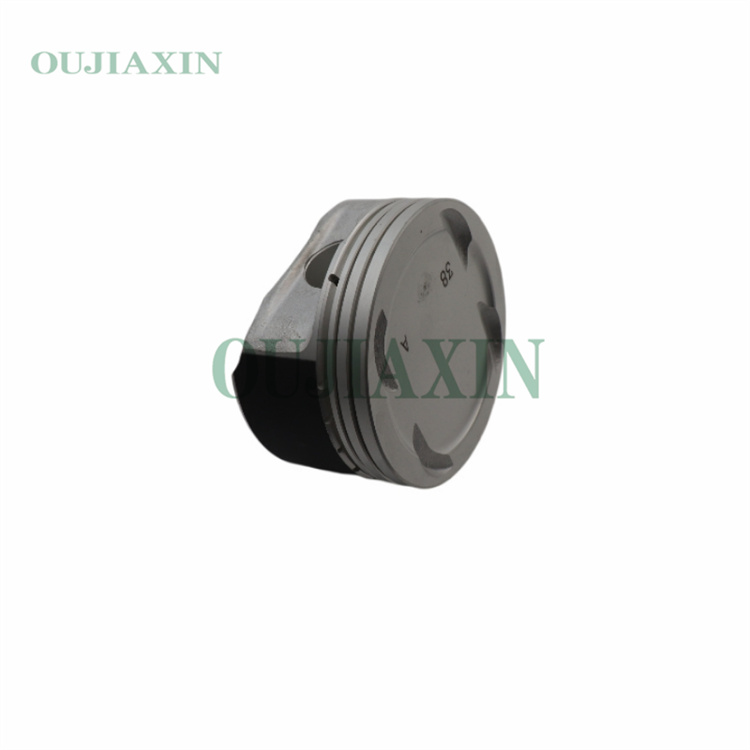

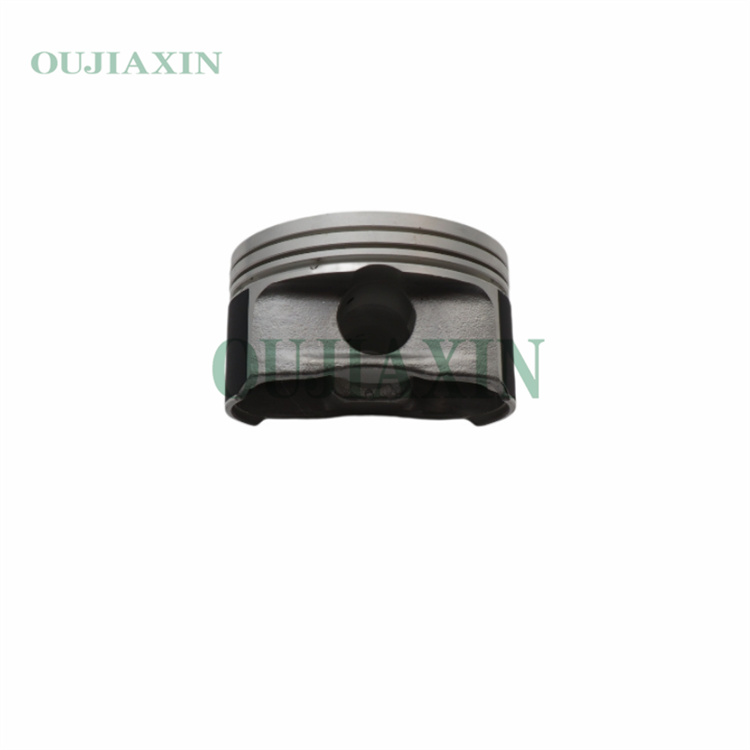

Engine Piston Kit 23041-3C611 (96mm) — New Hyundai Velax 3.8L V6 (G6DA)

The piston assembly for the Hyundai G6DA 3.8L V6 engine typically features a bore of 96.00 mm, a compression ratio ranging from 8.5:1 to 10.4:1, a compression height of 31.50 mm, and a piston pin diameter of 22.00 mm.

Category: Tag:

Description

Piston Assembly Key Specifications (Standard Size):
Bore Diameter: 96.00 mm
Compression Height: 31.50 mm
Piston Pin Diameter: 22.00 mm
Piston Type: Dish Top (Includes Piston Ring Kit; e.g., 23040-3C200 / 23040-3C201)
Material: ZL109 Aluminum Alloy
Piston Ring Dimensions: Typically 1.20 mm (Top Ring), 1.20 mm (Second Ring), 2.00 mm (Oil Ring); Oversize Options: Common oversize dimensions include 0.25 mm (0.010″) and 0.50 mm (0.020″).
