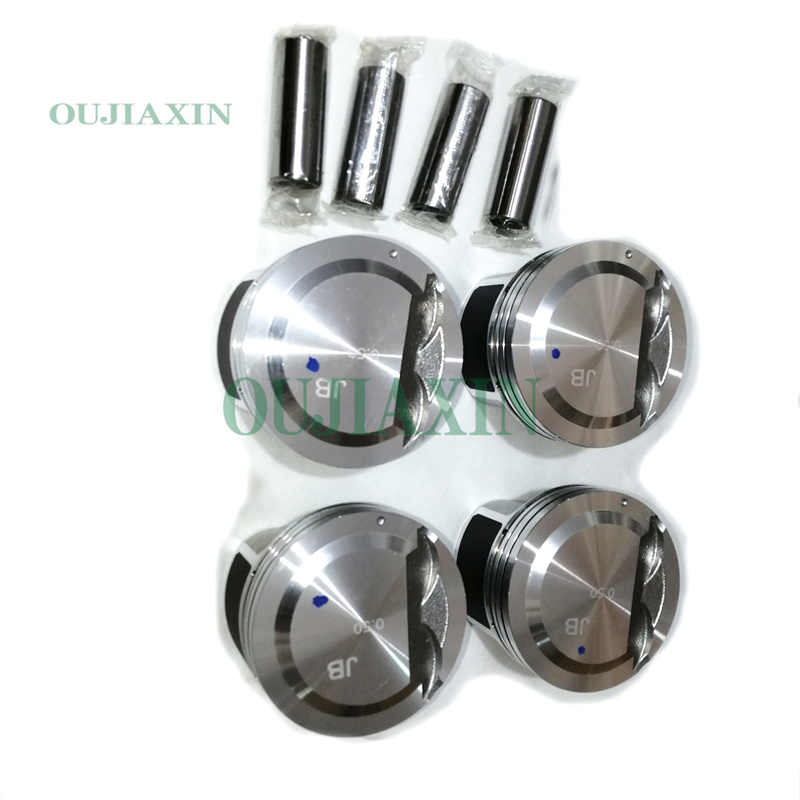

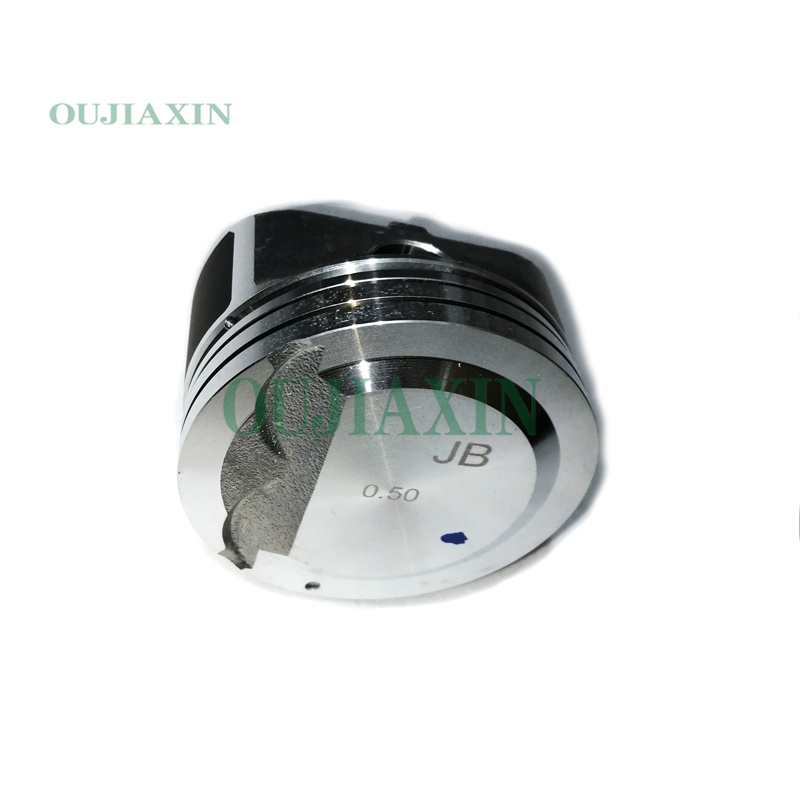

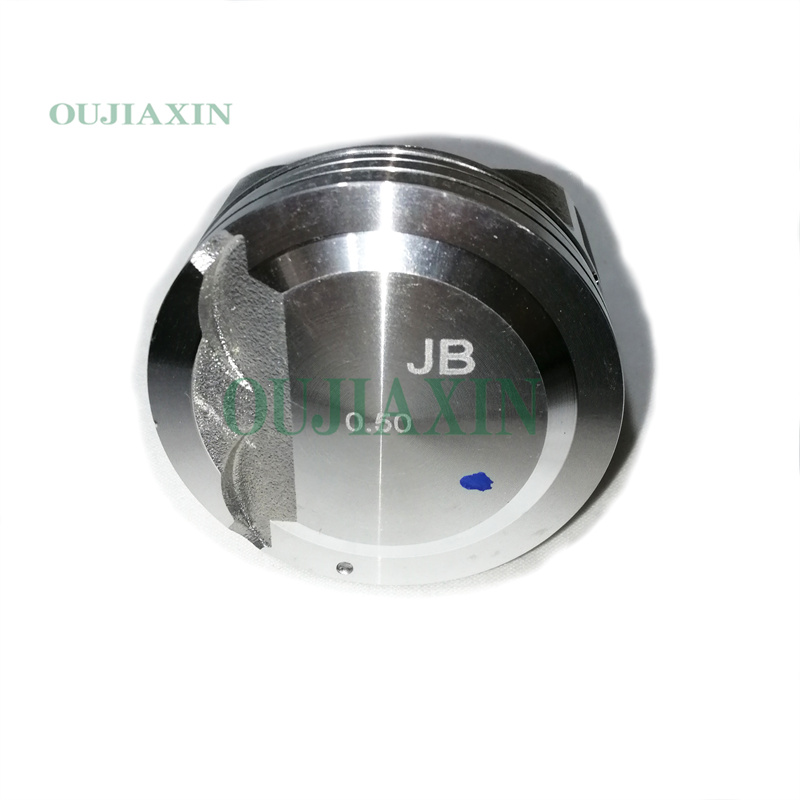

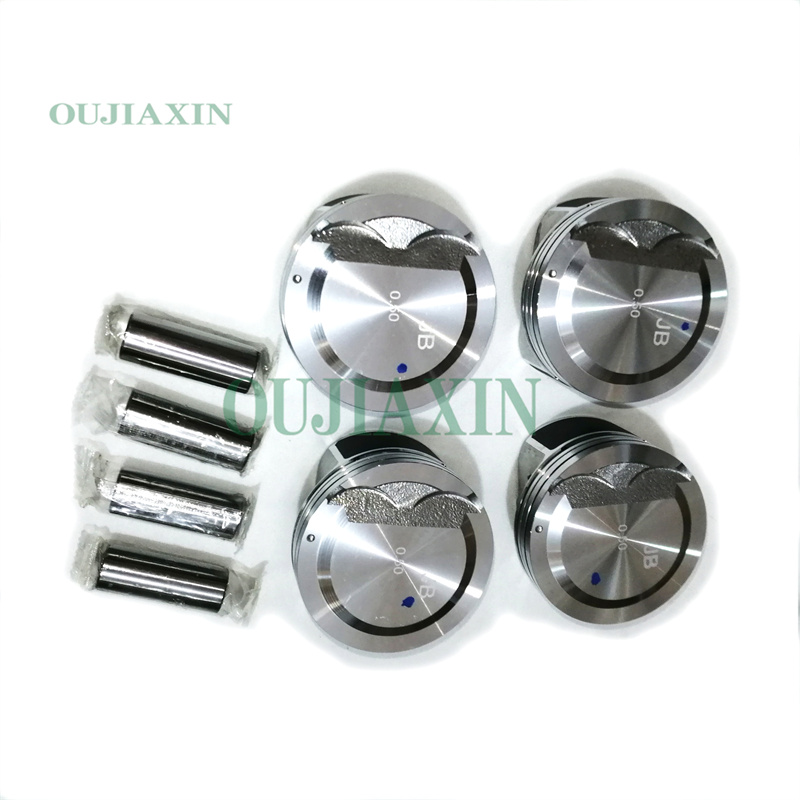

Engine Piston Kit (0.5 Oversize, 4-Piece Set) for Hyundai Accent G4EE 2006-2010 (23410-26410)
For the Hyundai G4EE 1.4L engine, using a 0.5mm oversize piston requires boring the cylinder to 76.00mm (the standard size is 75.50mm). This oversize piston slightly increases the engine’s total displacement while maintaining the required specifications for clearances and pin dimensions.
Description
Specification | Standard | +0.50mm Oversize
Cylinder Bore | 75.50 mm | 76.00 mm
Compression Height | 28.7 – 28.8 mm | 28.7 – 28.8 mm
Piston Pin Diameter | 18.0 mm | 18.0 mm
Piston Length | 46.0 – 48.0 mm | 46.0 – 48.0 mm
Piston Rings | 1.2 – 1.2 – 2.0 mm | 1.2 – 1.2 – 2.0 mm
