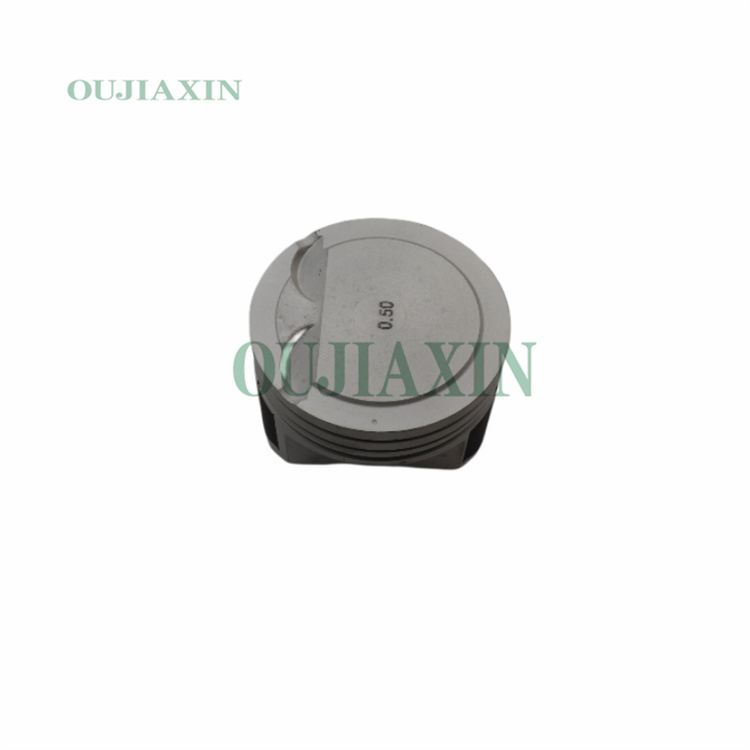

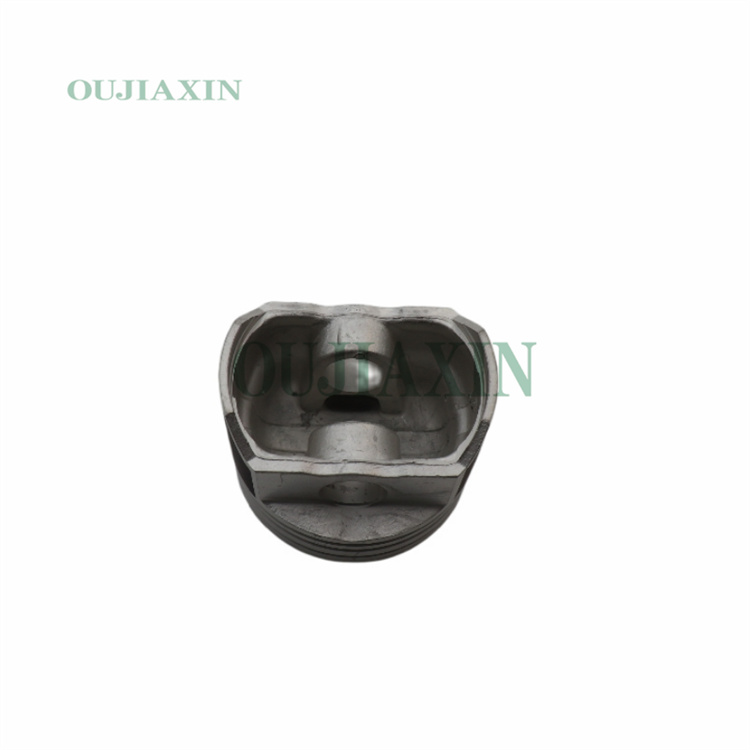

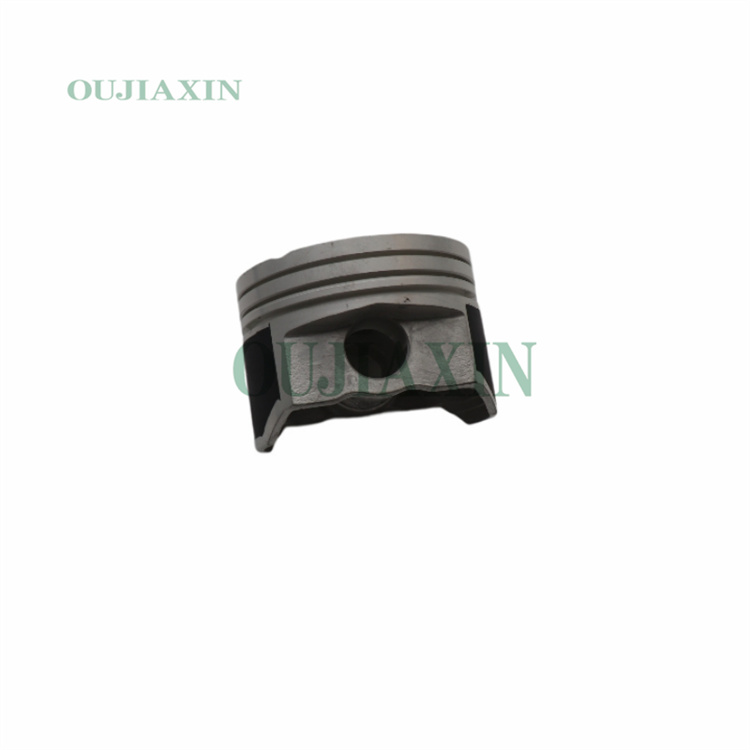

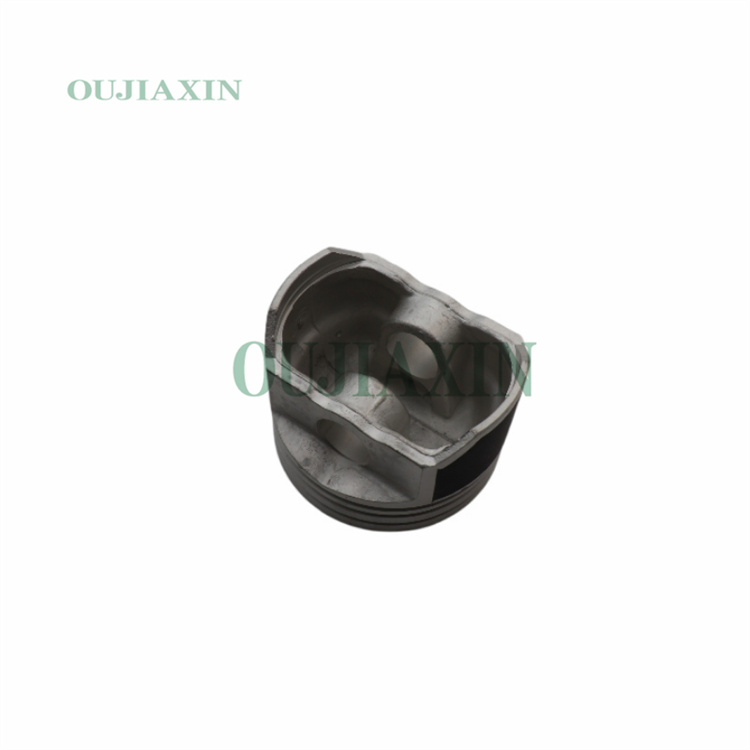

Engine Piston G4EC-G (23410-26613) — For Hyundai Accent 1.4L / 1.5L

The Hyundai Accent 1.5L G4EC-G (DOHC 16-valve) engine typically utilizes pistons with a concave crown featuring a valve relief; its compression height is 30.5 mm (+1 mm), and the piston pin specifications are 18 × 47.5 mm. The standard bore is typically 75.5 mm, and the piston ring widths are 1.5 mm (top ring), 1.5 mm (second ring), and 3.0 mm (oil ring), respectively.

Category: Tag:

Description

Piston Assembly Specifications (G4EC):
Engine Model: 1.5L DOHC 16-Valve (G4EC)
Piston Type: Recessed Crown
Compression Height: 30.5 mm
Piston Pin Diameter/Length: 18 mm × 47.5 mm
Piston Ring Width: 1.5 mm (Top Ring) / 1.5 mm (Second Ring) / 3.0 mm (Oil Ring)
Piston Ring Part Number (Reference): RS1778
Oversizes: Available in Standard (STD), +0.20 mm, and +0.40 mm specifications
Overall Length: Approx. 53.7 mm
