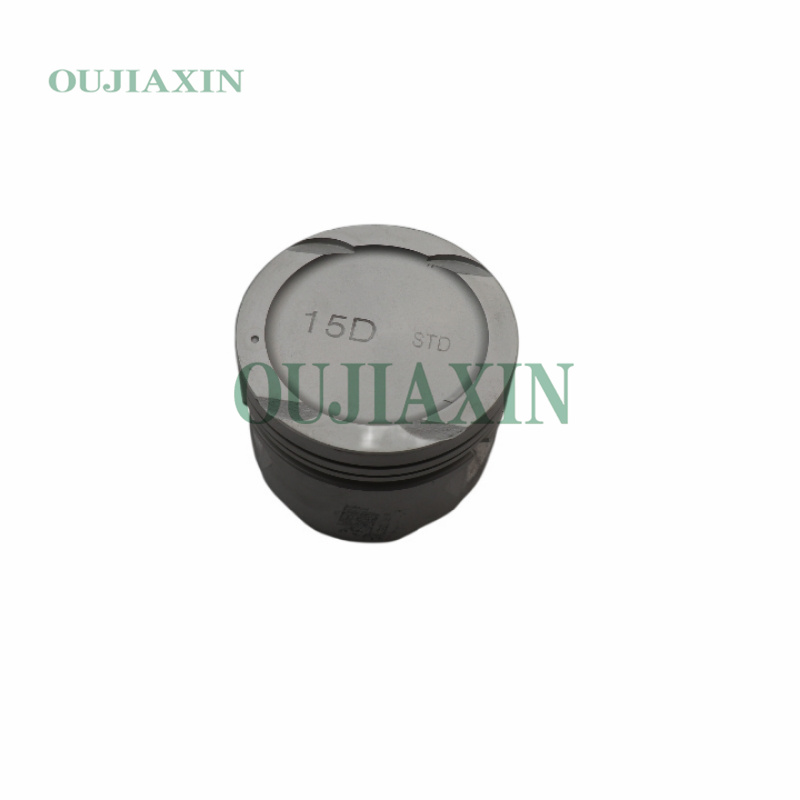

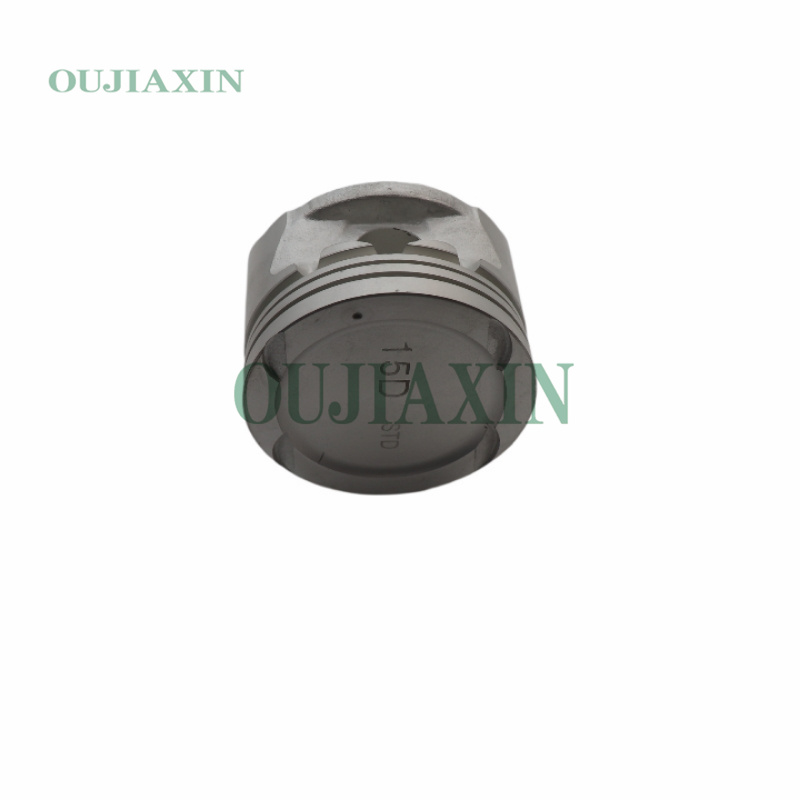

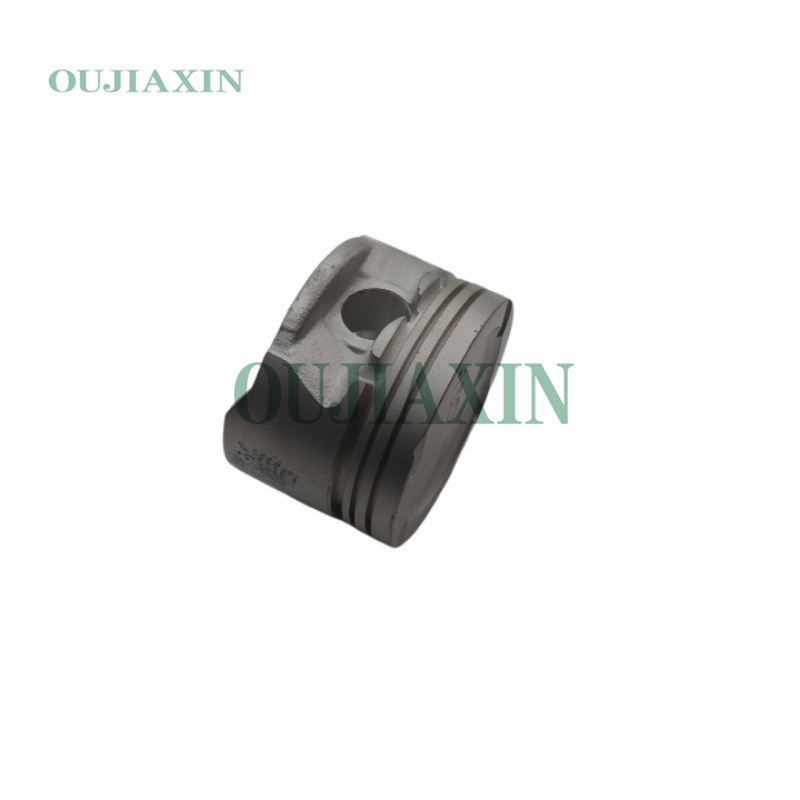

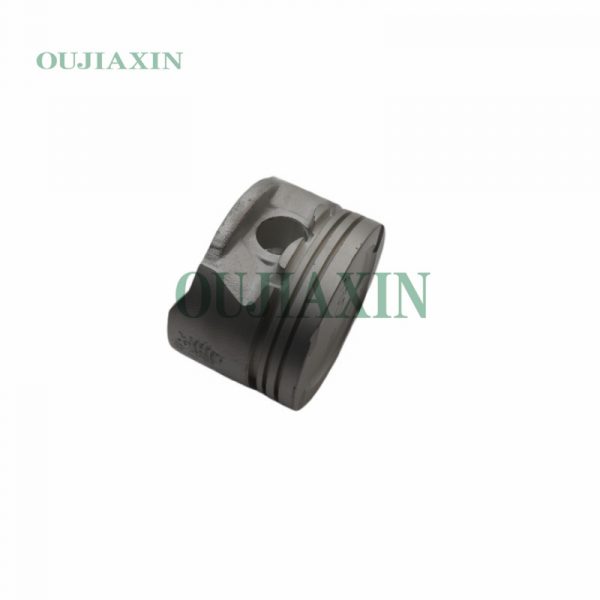

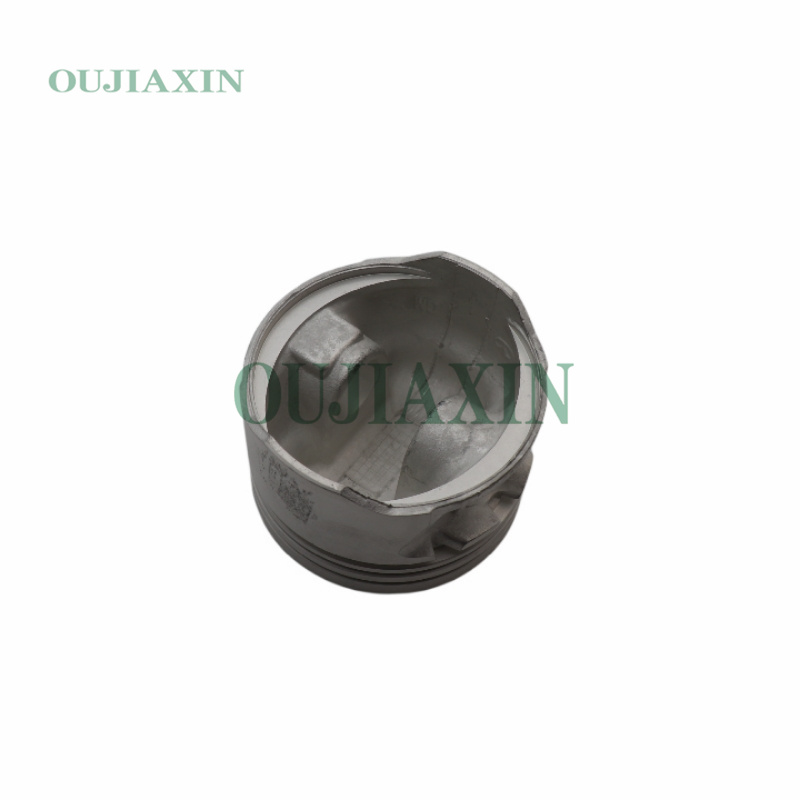

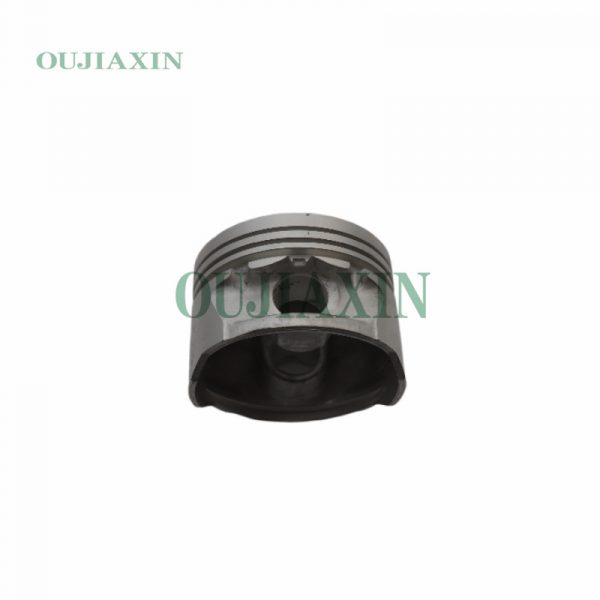

Piston Assembly for Daewoo A15DMS 1.5L Engine

Engine Piston 96182813 for Daewoo A15DMS 1.5L Engine

The standard bore of the Daewoo 1.5L A15DMS engine (DOHC 16V, used in Lanos/Nexia models) is 76.5 mm, and the piston pin diameter is 21 mm. For piston ring sets compatible with the A15DMS engine, the typical specifications for a 76.5 mm piston are 1.5 mm × 1.5 mm × 3.0 mm (corresponding to the top ring, second ring, and oil ring, respectively).

Description

Piston Assembly Specifications (A15DMS):
Engine Code: A15DMS (1.5L, 1498 cc, DOHC 16V).
Bore: 76.5 mm (Standard).
Piston Pin Diameter: 21 mm.
Piston Ring Dimensions: 1.5 mm × 1.5 mm × 3.0 mm.
Piston Ring Group: Typically grouped with A15MF/A15SMS/F15S engines.
Compression Ratio: 9.5:1.

Compatible Piston/Piston Ring Part Numbers:
Piston Rings: Hastings 4819, Kolbenschmidt 800049210000 (Standard). Piston Assembly: 94581192 / 92089854 (typically listed for 1.6L/1.5L model variants).
