Engine Overhaul Kit for Toyota 2L-T / 2LTE / 2L-THE Engines (Hilux / Land Cruiser / HiAce 2.4L)

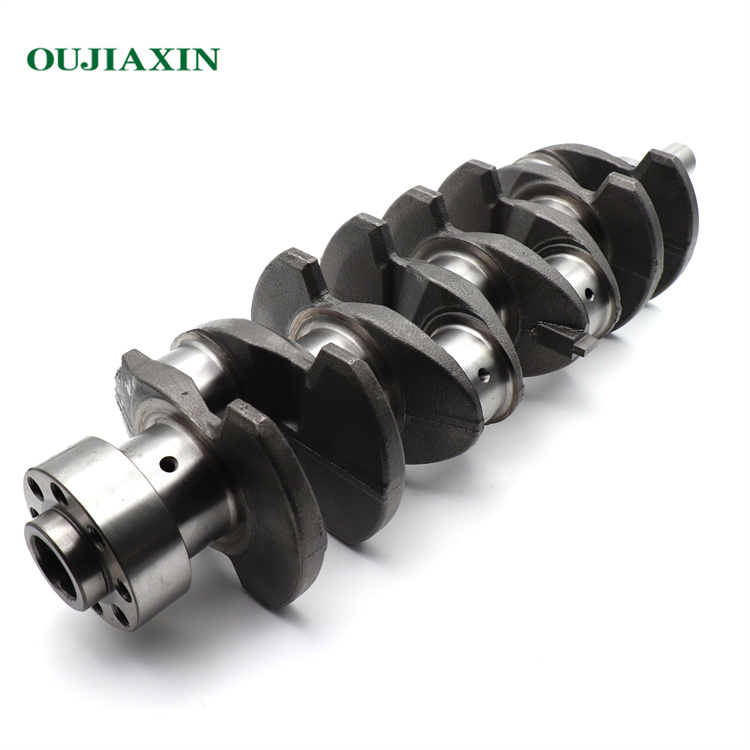

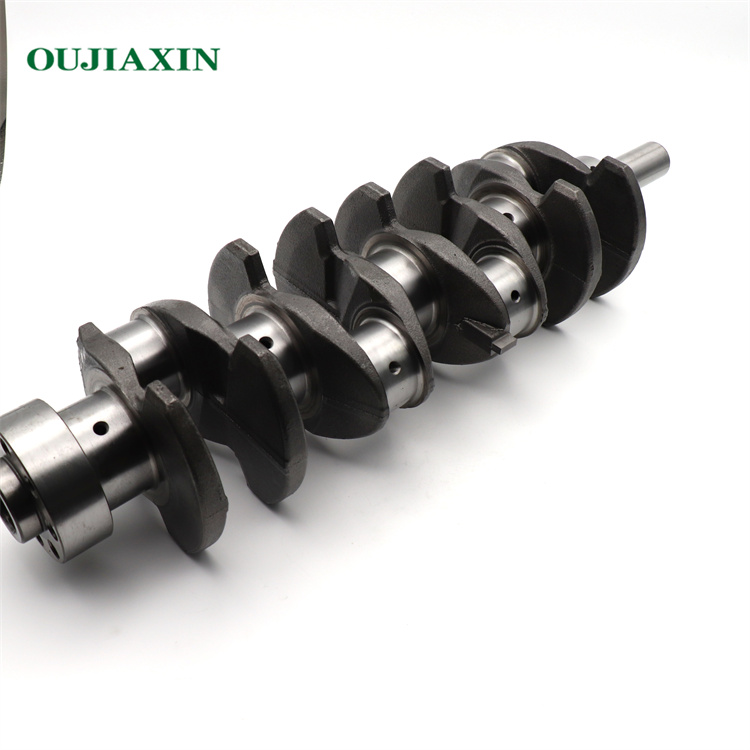

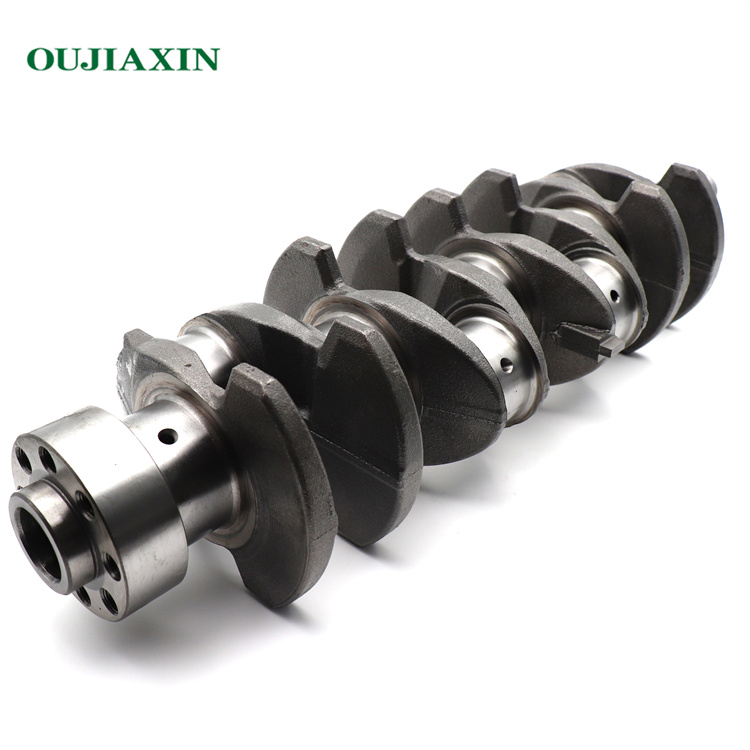

The Toyota 2L-TE 2.4-liter turbocharged diesel engine features a robust cast-iron crankshaft equipped with five main journals and eight counterweights.
Description
Key Dimensions and Specifications
Stroke: 92.00 mm
Main Journal Diameter: 61.985 – 62.000 mm · Connecting Rod Journal (Crankpin)
Diameter: 54.988 – 55.000 mm
Rear Oil Seal Diameter: 85.00 mm
Front Oil Seal Diameter: 42.00 mm
Clearances and Tolerances
Main Bearing Oil Clearance: 0.034 – 0.065 mm
Connecting Rod Bearing Oil Clearance: 0.022 – 0.074 mm (Service Limit: 0.10 mm)
Crankshaft Axial Clearance (Thrust Clearance): 0.08 – 0.28 mm (Service Limit: 0.35 mm)
Thrust Washer Thickness: 2.430 – 2.480 mm
