Engine Overhaul Kit — Fits: 2001-2003 Toyota RAV4 2.0L DOHC 1AZ-FE
The Toyota 1AZ engine overhaul kit is typically used to repair the 2.0L 1AZ-FE or 1AZ-FSE engines. This kit includes a complete set of gaskets, pistons (standard size), piston rings, main and connecting rod bearings, thrust washers, and valves.
Description
Core Kit Components
A complete engine overhaul and rebuild kit typically includes the following items:

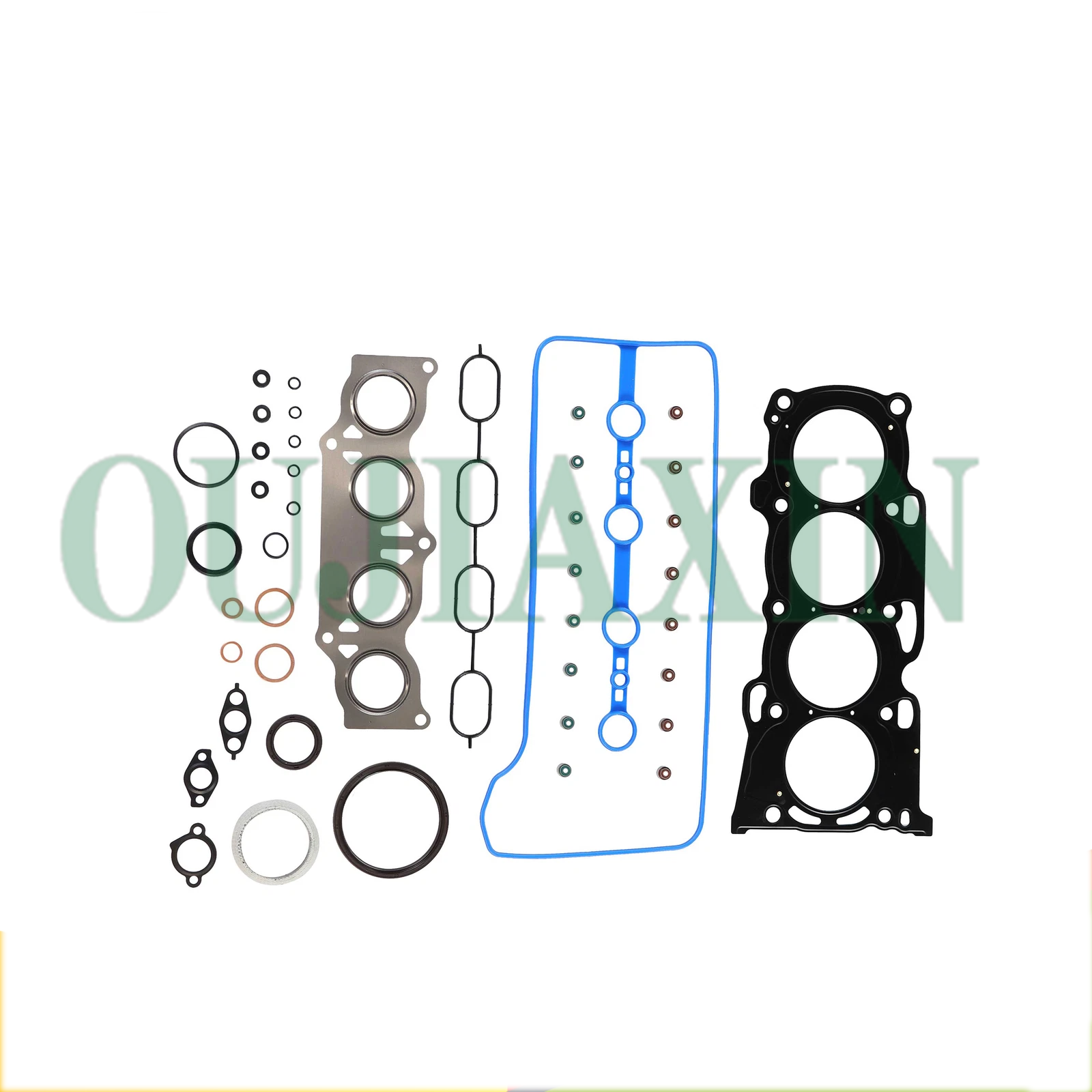

Gasket and Oil Seal Set: A full set of overhaul gaskets, including the cylinder head gasket, valve stem seals, and other necessary engine seals.

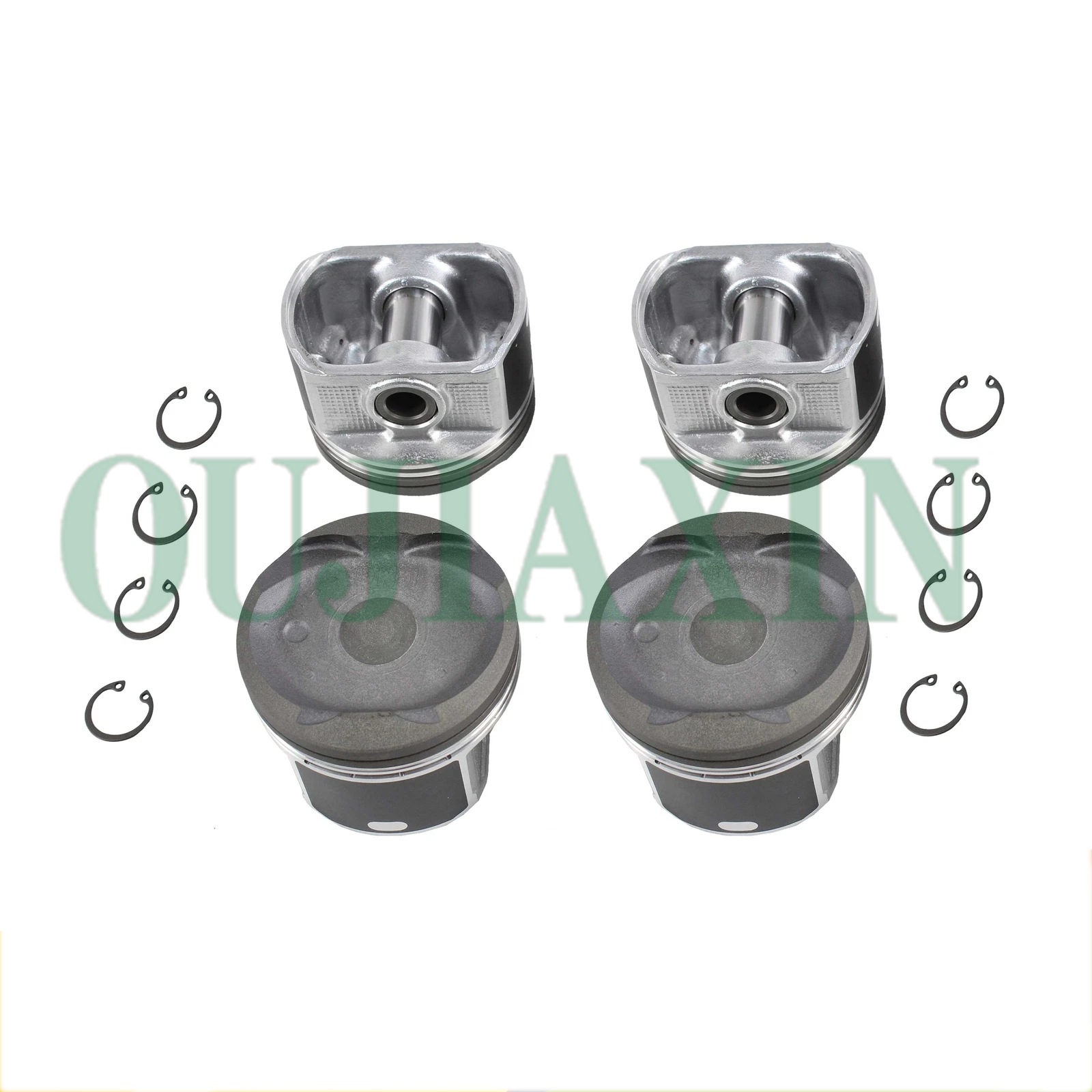

Pistons: Standard-size pistons (Bore: Ø86.00 mm), supplied with piston pins and circlips. Piston Rings: Standard-size piston ring set (typically specified as: Top Ring 1.2 mm, Second Ring 1.2 mm, Oil Ring 2.0 mm).

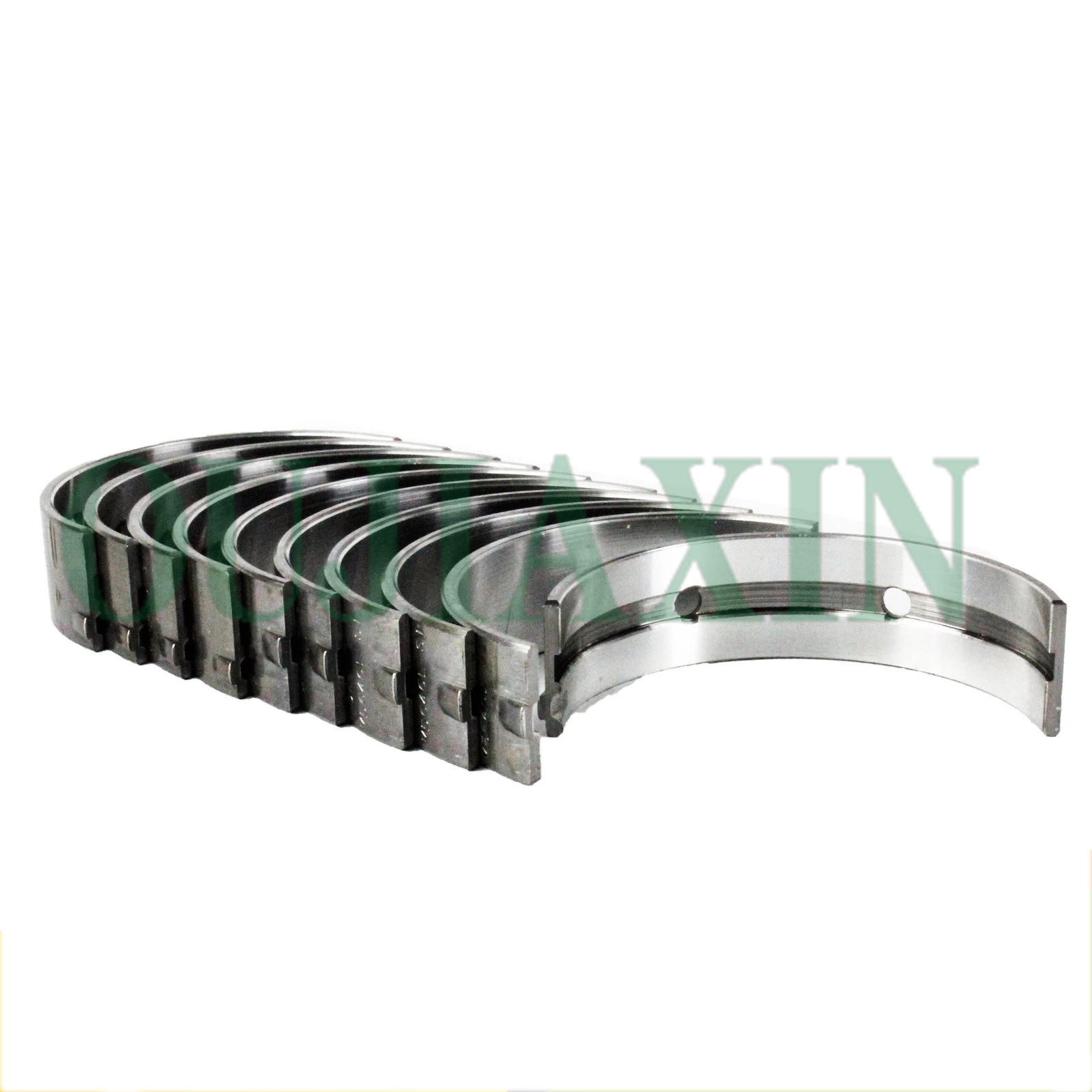

Engine Bearings: Standard-size main bearings, connecting rod bearings, and thrust washers/plates.
Valves: Intake valves and exhaust valves.
Dimensions and Technical Specifications
Engine Model: 1AZ-FE / 1AZ-FSE (16-Valve DOHC)
Displacement: 2.0 L (1,998 cc)
Cylinder Bore: 86.00 mm
Piston Pin Diameter: 22.00 mm
