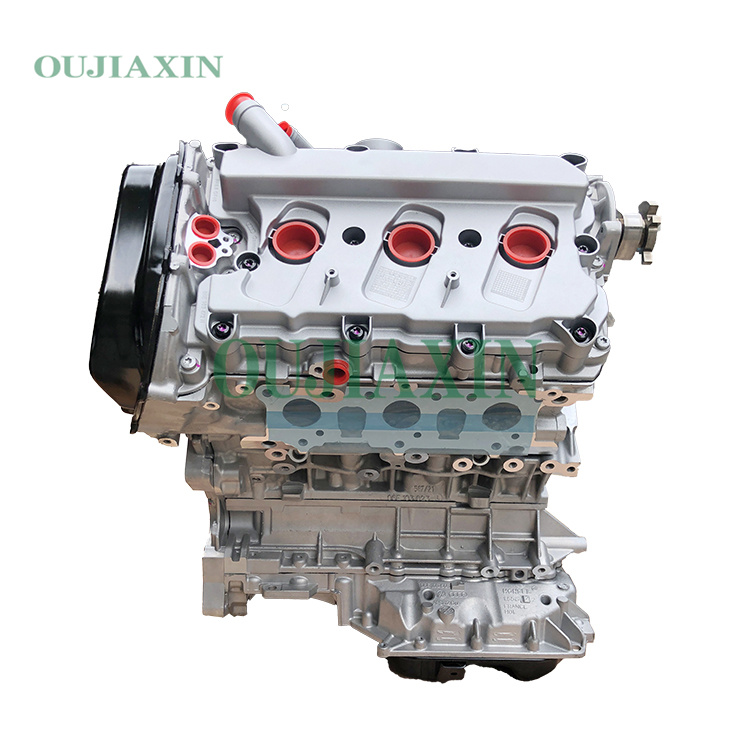

Engine 2010 for Audi Q5 8R 3.2 V6 FSI Quattro CALB CAL 06E100031L

The Audi CALA 3.2L FSI is a 90-degree V6 engine with a displacement of 3,197 cc. Its key features include a 24-valve Dual Overhead Camshaft (DOHC) configuration, a compression ratio of 12.5:1, and direct fuel injection technology. This engine produces 265 horsepower (195 kW) at 6,500 rpm and generates 330 Nm (243 lb-ft) of torque; furthermore, it is constructed entirely from aluminum and is equipped with a maintenance-free timing chain.

Category: Tag:

Description

Key Technical Specifications (CALA Engine):
Engine Type: V6, 90° V-angle, Naturally Aspirated
Displacement: 3,197 cc (3.2 liters)
Bore / Stroke: 85.5 mm / 92.8 mm
Max. Power: 265 hp (195 kW) at 6,500 rpm
Max. Torque: 330 Nm (243 lb-ft) at 3,000 – 5,000 rpm
Compression Ratio: 12.5:1
Valve Train: DOHC (Dual Overhead Camshafts), 4 valves per cylinder (24 valves total)
Fuel System: FSI Direct Injection
Engine Management System: Simos 8.1
Timing System: Chain-driven
Key Technologies: Variable Valve Timing (VVT), Audi Valvelift System

Common Applications:
The CALA engine is commonly used in the 2007–2011 Audi A4 (B8), A5, and A6 (C6) models.
