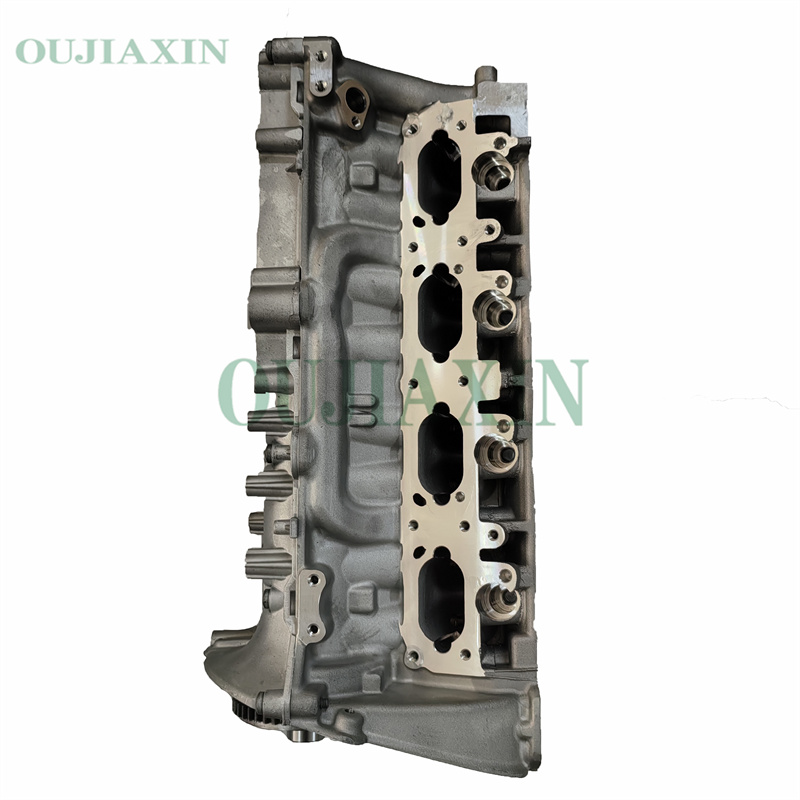

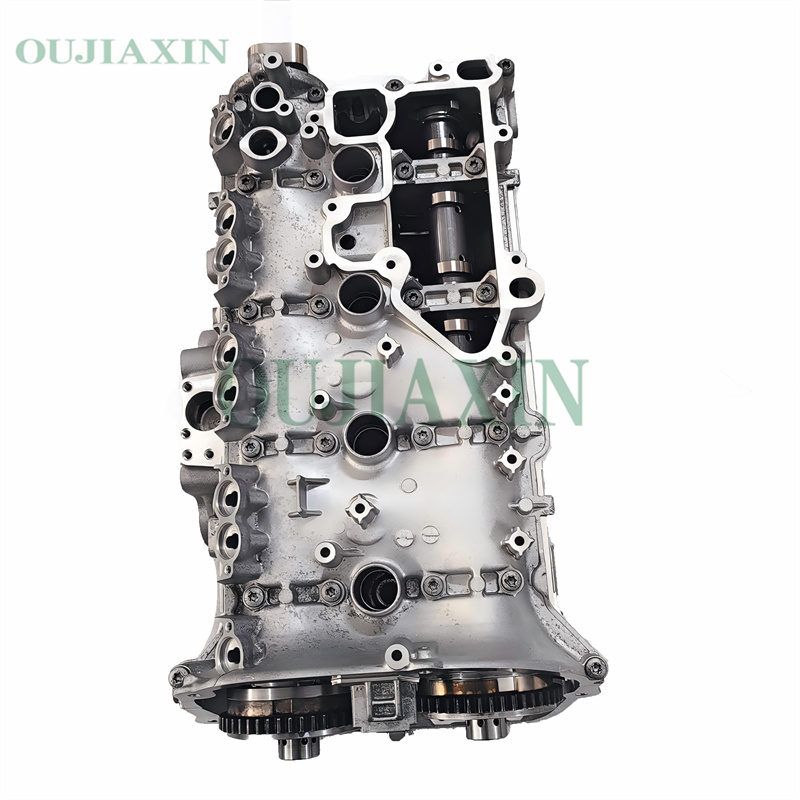

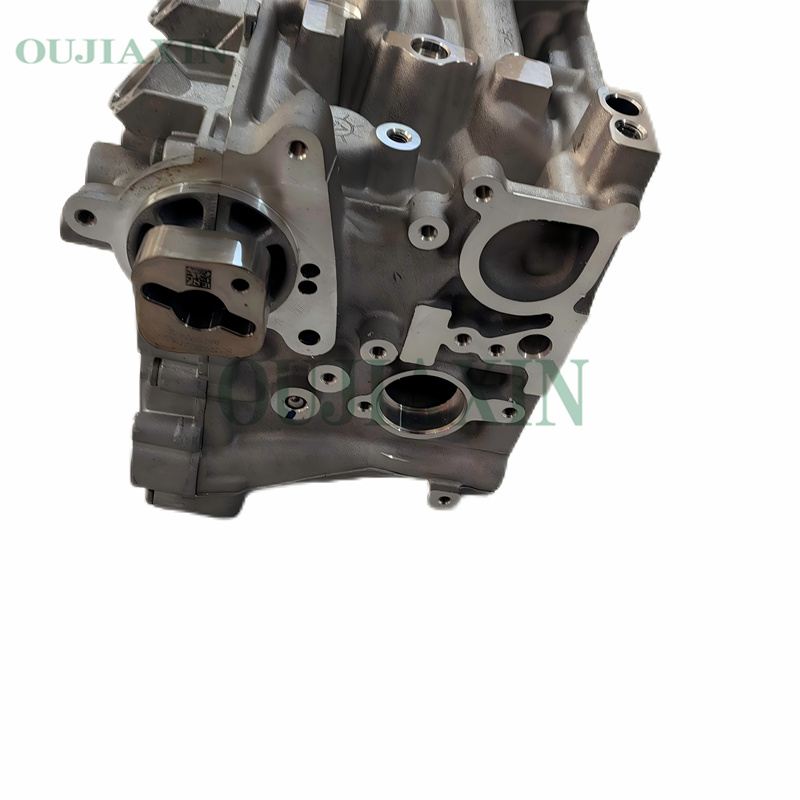

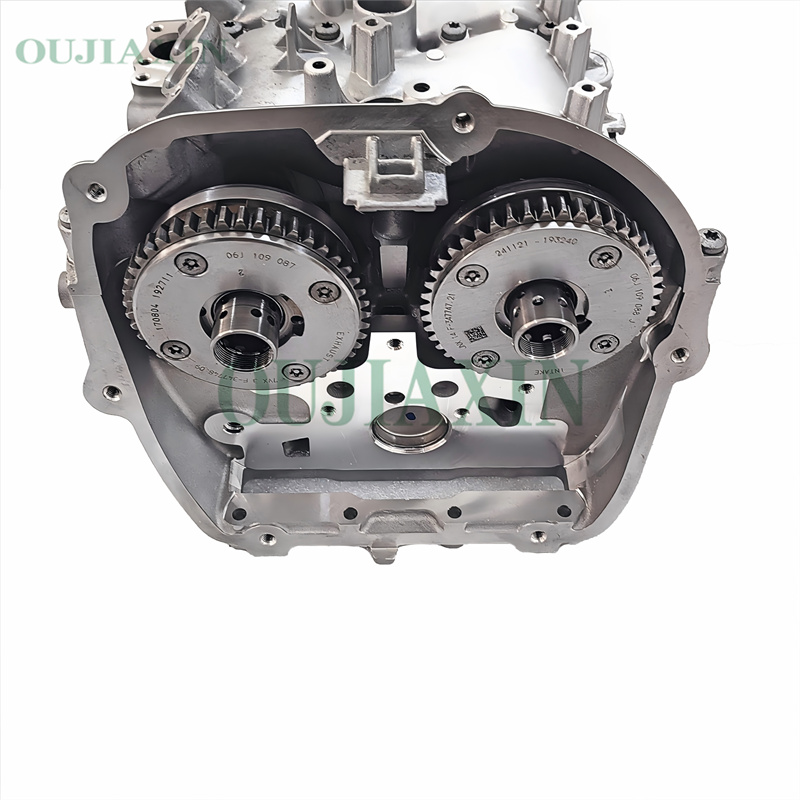

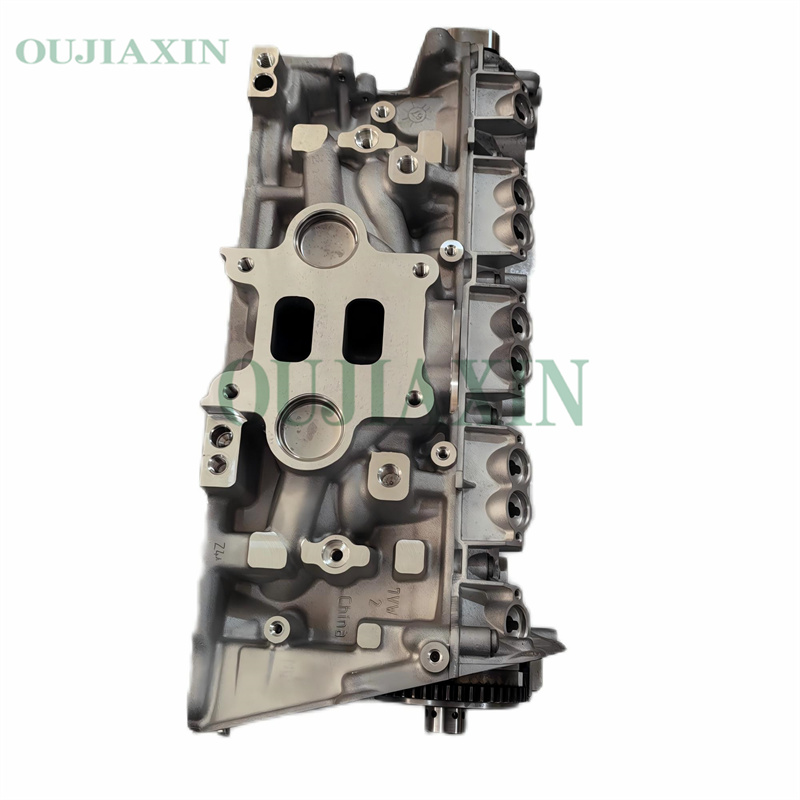

EA888 Gen3 Cylinder Head Assembly for VW CHH / Audi A4 (CNC)

EA888 Gen3 Cylinder Head Assembly For VW Tiguan MK2 CHH AUDI A4 Quattro CNC CYM

Regarding the CNC machining parameters for cylinder head assemblies (typically manufactured from aluminum alloy or cast iron), the core objective lies in optimizing the geometry of the valve seats, intake and exhaust ports, and combustion chambers, while employing precise cutting speeds and feed rates to facilitate high-speed machining. Key processes involve the utilization of 5-axis CNC machine tools, the application of CNC technology for intake and exhaust port optimization (Porting), and the precision machining of valve guides and valve seat pockets—thereby ensuring the attainment of exceptionally high standards for dimensional accuracy and surface finish.

Description

Key CNC Machining Parameters and Considerations
Process Stages: Encompasses stages such as rough machining, heat treatment, precision machining, and finishing.
Valve Seat Machining: Performed using specialized CNC machining centers, this process aims to minimize runout errors to ensure optimal combustion sealing performance.
CNC Intake and Exhaust Port Machining: Ports are precision-machined according to specific fluid profile curves to maximize airflow efficiency within the valve lift range of 0.200″ to 0.500″, thereby enhancing overall performance.
Surface Finish: High-speed cutting processes are employed to achieve an exceptionally high surface finish, effectively preventing the generation of thermal stress and ensuring a reliable seal with the gasket.
Dimensional Accuracy: Extremely high standards of dimensional accuracy are required for bolt holes, valve guide bores, and the geometry of the combustion chambers.
Material Property Considerations: Machining parameters must be appropriately adjusted for different materials—such as aluminum alloys or cast iron—to ensure the structural integrity of the workpiece and minimize the risk of tool breakage.
