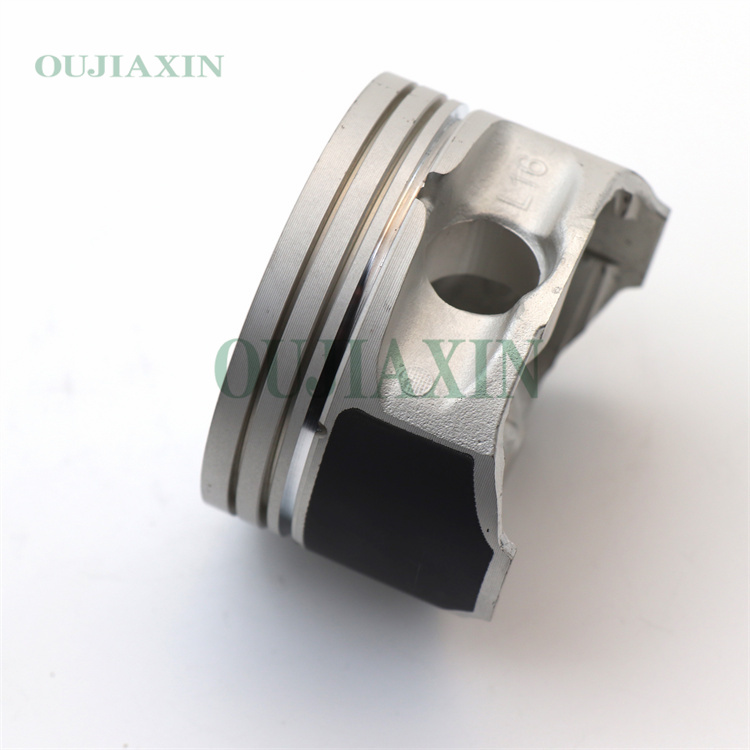

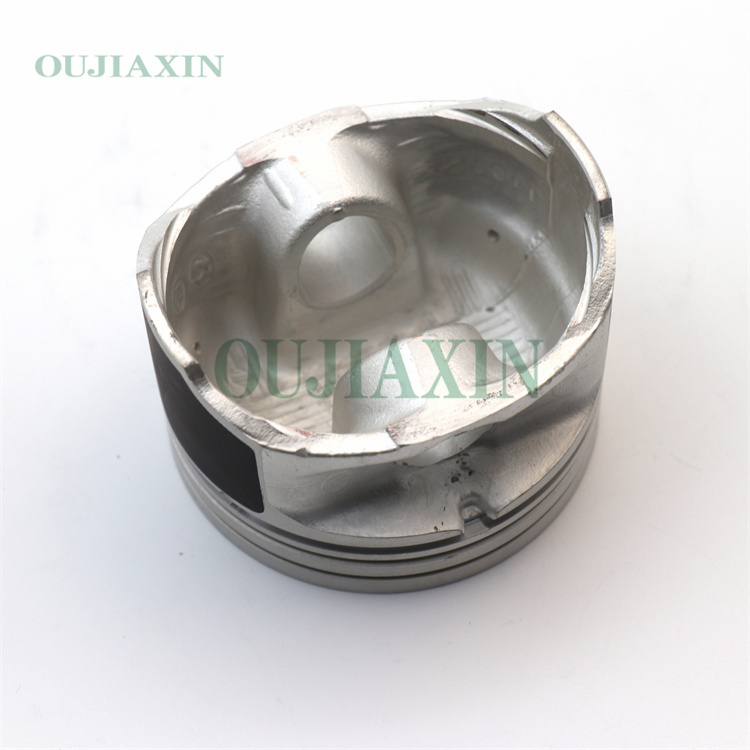

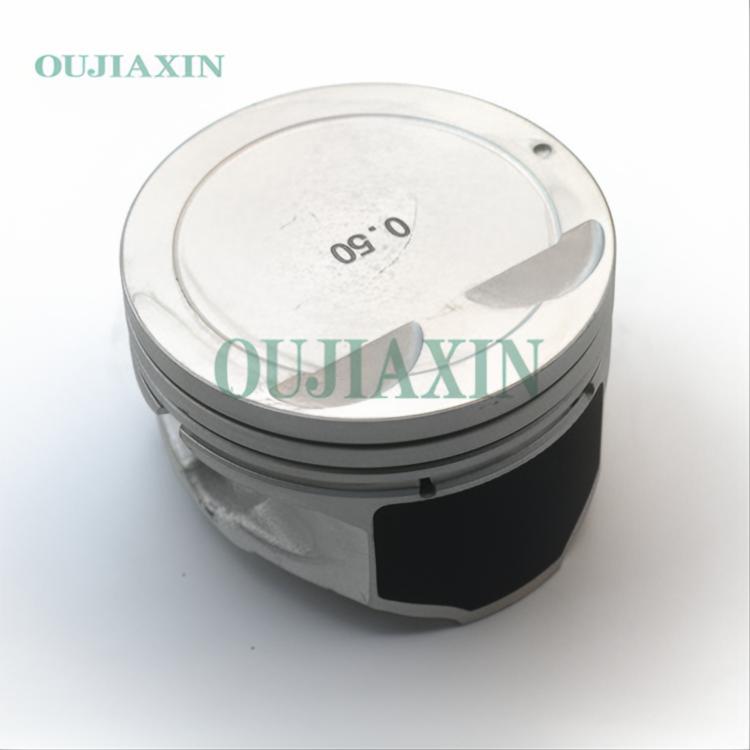

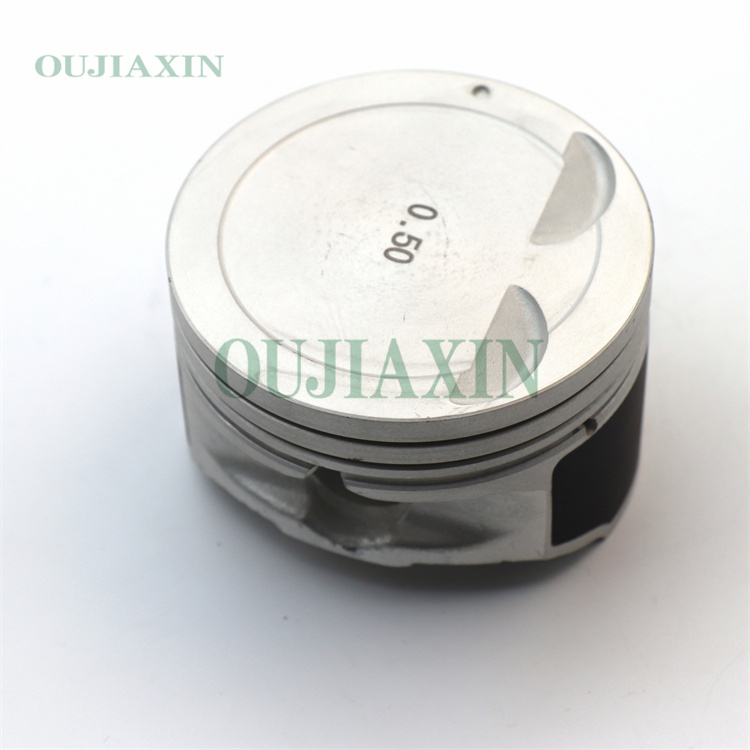

Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
  1. Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
  2. Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
  3. Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
  4. Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510
  5. Piston Assembly – Hyundai G4ED 0.5 (Oversize) 1.6L – 23041-26510

Dish Top Piston Set for 01-11 Hyundai 1.6L/1599 L4 G4ED | Standard (For: Hyundai 1.6L)

The Hyundai 1.6L G4ED engine (displacement: 1599cc) utilizes cast aluminum piston assemblies featuring a concave crown; the standard bore is 76.50mm (listed as 77.4mm in certain versions of the technical documentation). Its key technical specifications include: a compression height ranging from 28.2mm to 40.5mm, a piston pin diameter of 18.0mm, and piston ring specifications of 1.2mm × 1.2mm × 2.0mm.

Category: Tag:

Description

Piston Assembly Specifications (G4ED):
Engine Model: 1.6L (1599cc) L4 16V DOHC Alpha-II · Standard Bore: 76.50 mm or 77.40 mm. Oversize Options: 0.25, 0.50, 0.75, 1.00 mm (0.010, 0.020, 0.030, 0.039 inches)
Compression Height: ≈ 28.2 mm
Piston Pin Diameter: 18.0 mm
Piston Type: Recessed Crown (with Valve Reliefs) · Piston Ring Groove Widths: Top Ring: 1.2 mm, Second Ring: 1.2 mm, Oil Ring: 2.0 mm · Piston-to-Cylinder Wall Clearance: 0.02 mm – 0.04 mm · Piston Skirt Coating: MoS2 (Molybdenum Disulfide) Treatment

OE Part Number: 23410-26510 (also 23410-26500)
