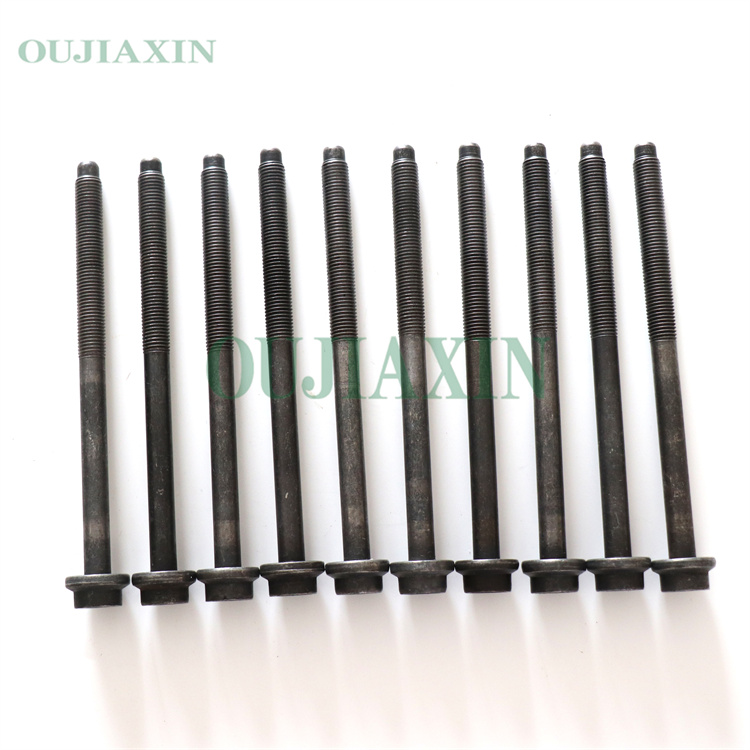

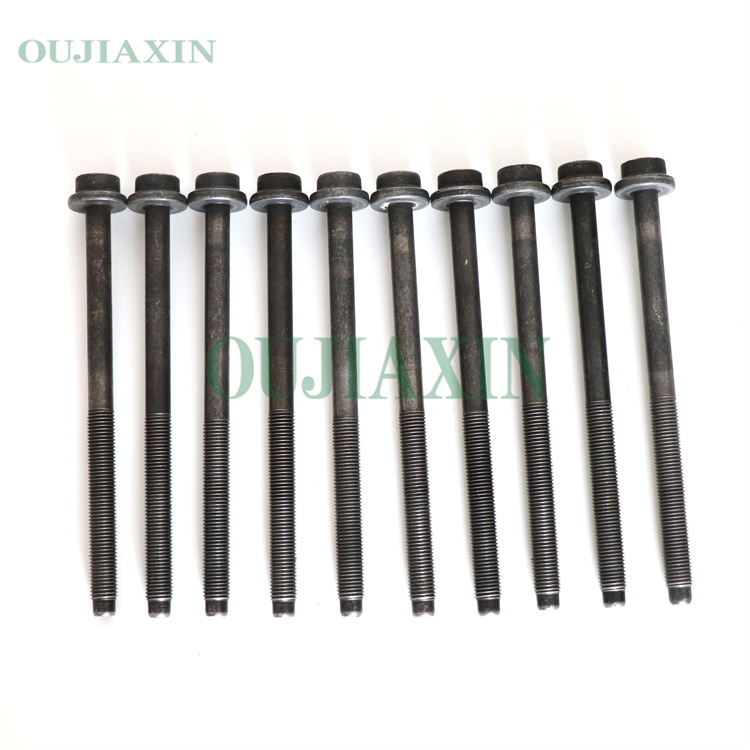

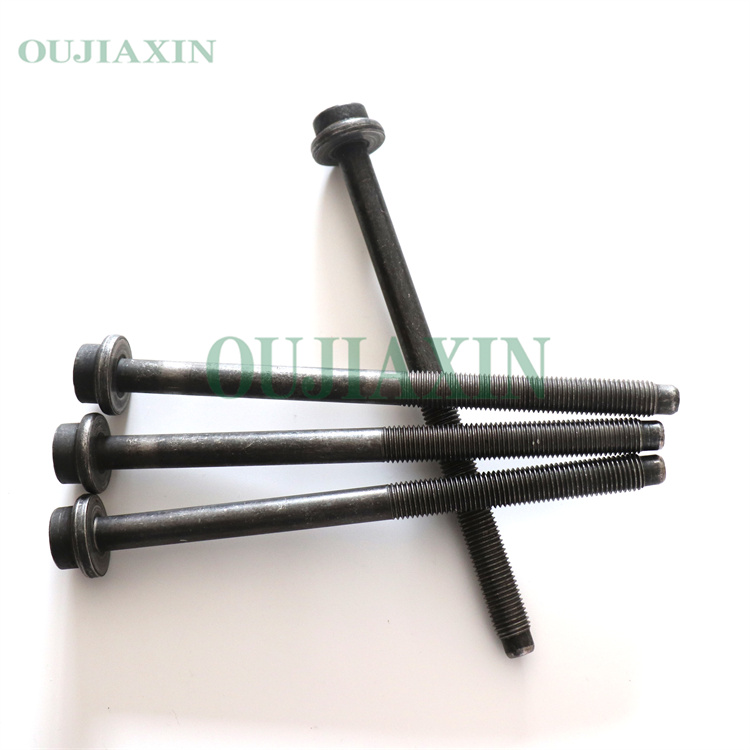

Cylinder Head Bolt for Ford Mustang (AG9G-6065-BA) — 2.3T Engine

The cylinder head bolts for the Ford Mustang 2.3T (Part Number AG9G-6065-BA) are Torque-to-Yield (TTY) bolts; therefore, they must be replaced every time the cylinder head is removed.Bolt Specifications
Thread Diameter: 10.0 mm (M10)
Thread Pitch: 1.25
Length Under Head: 145 mm or 146 mm
Drive/Head Type: Socket Head Cap Screw / Torx (Typically T55 or 12-Point)
