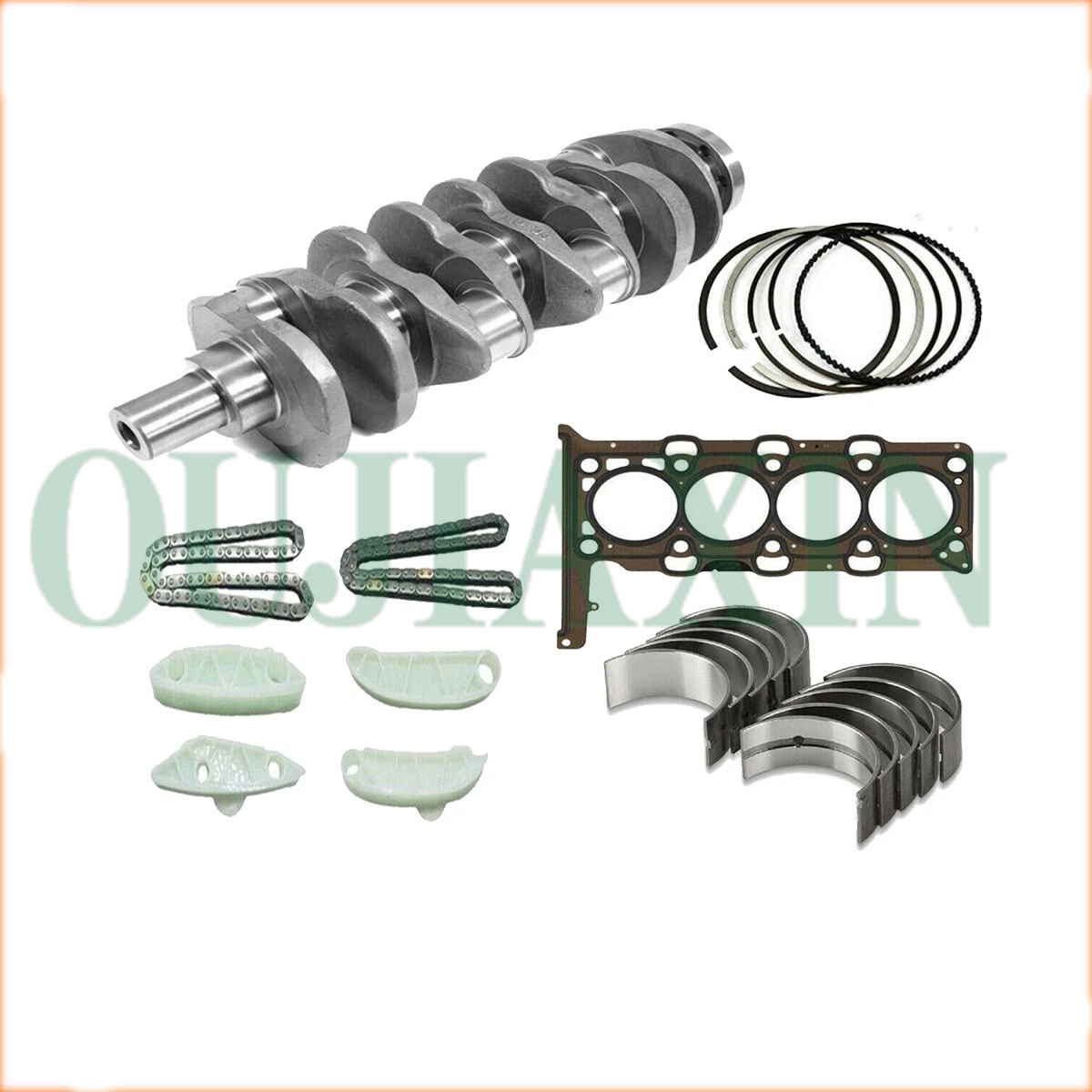

Crankshaft rebuild kit for modern Kia D4HB 2.2 diesel engines, compatible with Santa Fe III DM DMA and Carnival models.

Description

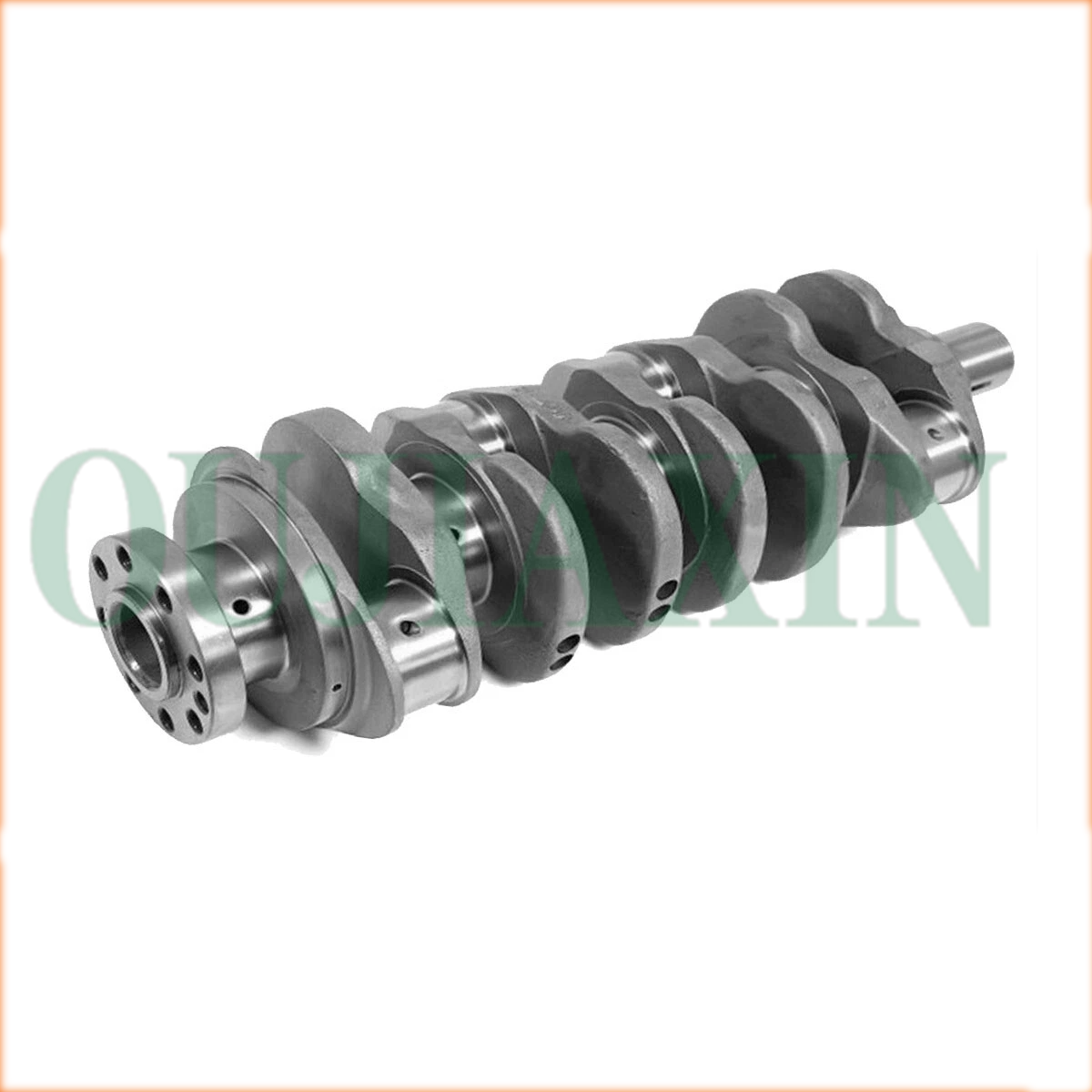

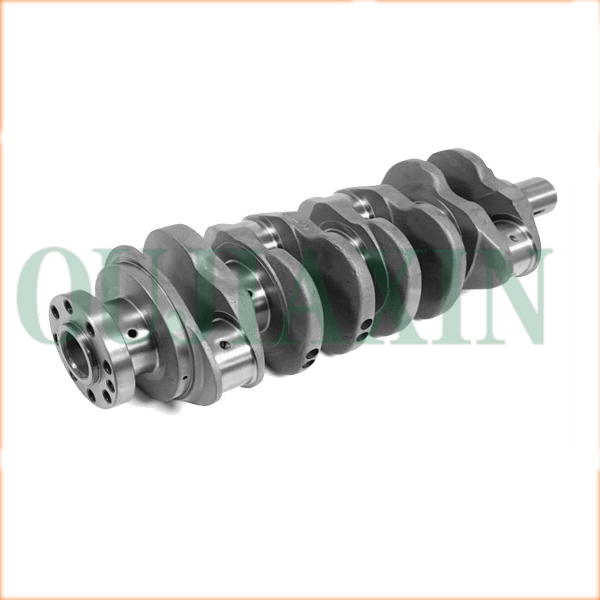

The crankshaft of the modern D4HB 2.2-liter diesel engine has a main journal diameter of 60 mm, a connecting rod journal diameter of 52 mm, a typical overall length of approximately 472.5-495 mm, and a center distance of 48 mm. It is usually made of forged steel and is suitable for models such as the Santa Fe, Sorento, and Carnival. The main bearing width is approximately 18.8 mm, and the connecting rod bearing width is approximately 20.77 mm.

Engine Code: D4HB
Engine Type: 2.2L (2199cc) 16-valve DOHC Common Rail Turbocharged Diesel Engine
Main Bearing Diameter: 60 mm
Connecting Rod Journal Diameter: 52 mm or 52.25 mm
Center Distance: 48 mm (distance between main journal and connecting rod journal)
Overall Length: Approximately 472.5 mm to 495 mm (specific value may vary slightly depending on the supplier)
Front End Diameter: 40.05 mm
Front End Thickness: 53.05 mm
Main Bearing Width: Approximately 18.8 mm
Connecting Rod Bearing Width: Approximately 20.77 mm

This crankshaft is suitable for various Hyundai and Kia models, including:
Hyundai Santa Fe (2009-2017+)
Hyundai Grand Santa Fe (2013-2018)
Hyundai Palisade (later models)
Hyundai Staria (later models)
Kia Sorento (2009-2017+)
Kia Carnival (2009-2017+)
