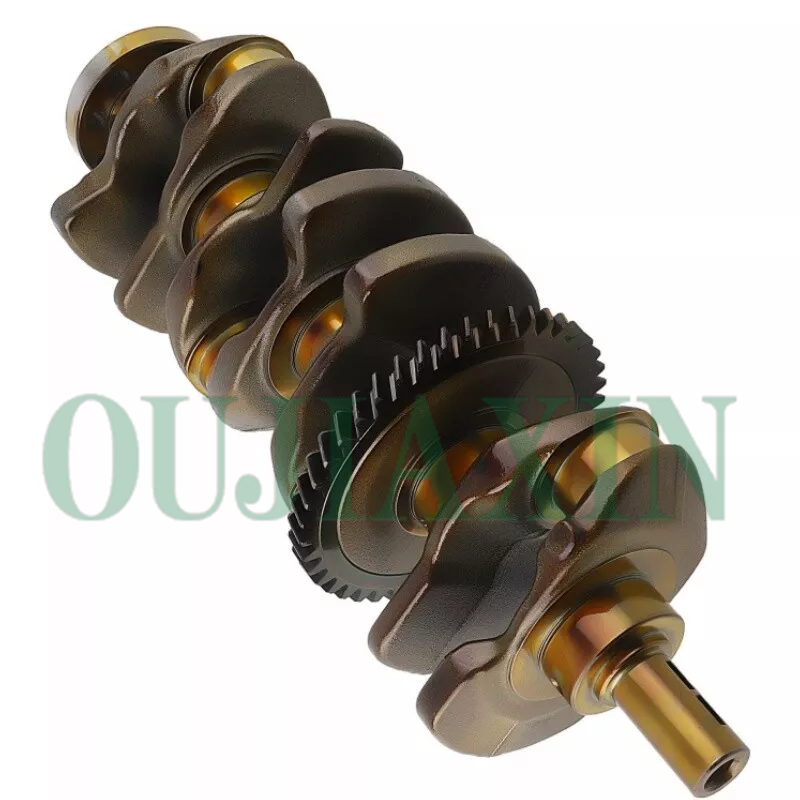

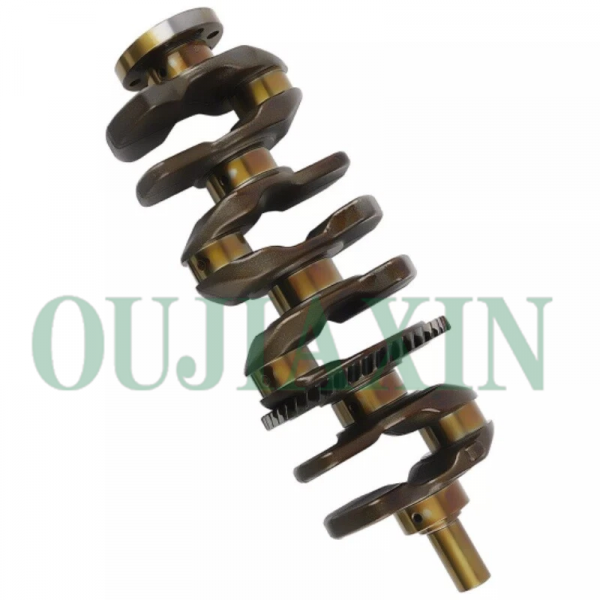

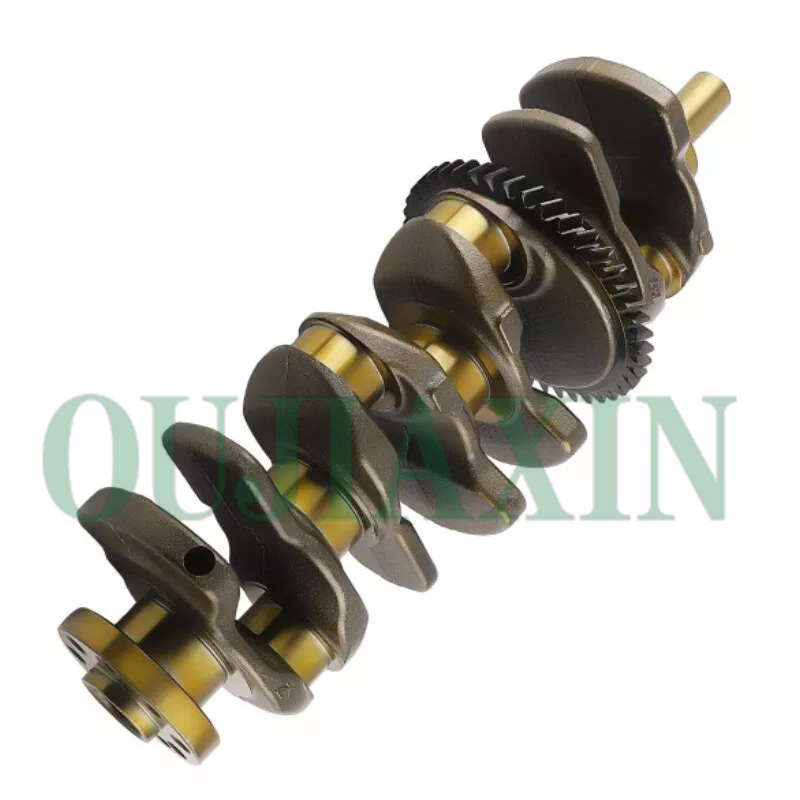

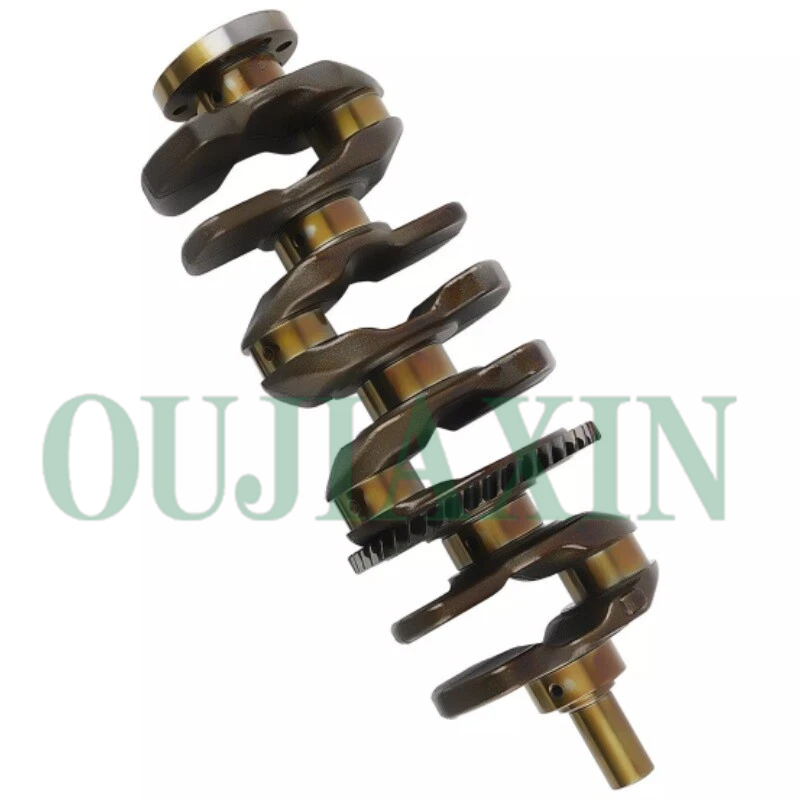

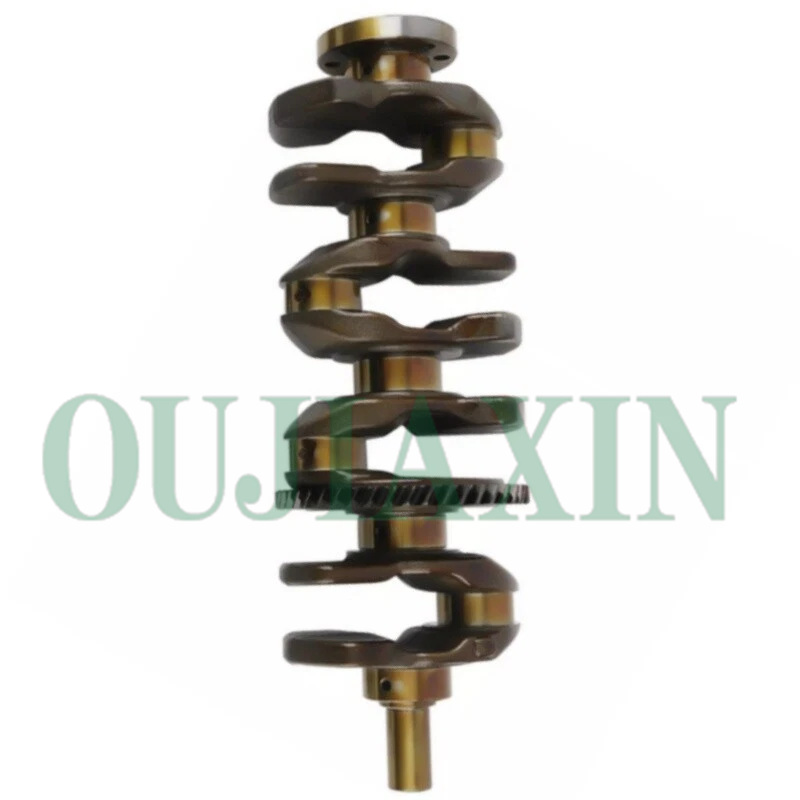

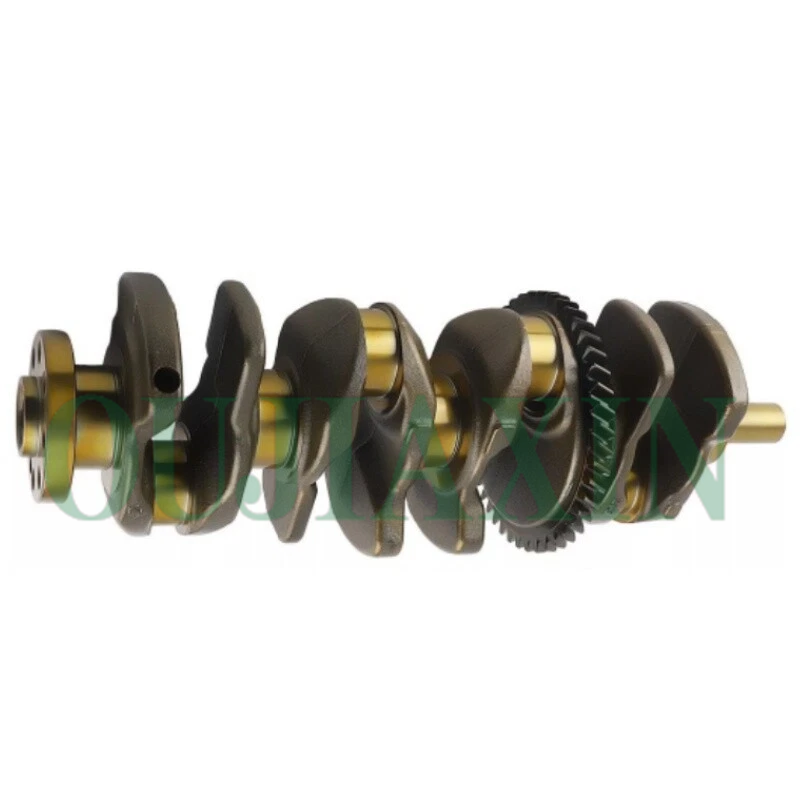

Crankshaft for Toyota Scion 2AZ-FE 2.4L Engine

The crankshaft of the Toyota 2AZ (2.4L) engine is designed with specific dimensions to suit its inline-four configuration. Key specifications include a stroke of 96.0 mm, a main journal diameter of 55.0 mm, and a connecting rod journal (crankpin) diameter of 48.0 mm.

Category: Tag:

Description

Crankshaft Key Dimensions and Tolerances:
Stroke: 96.00 mm (3.78 in)
Main journal diameter: 54.993 to 55.000 mm (2.1651 to 2.1654 in)
Connecting rod journal diameter: 47.990 to 48.000 mm (1.8894 to 1.8898 in)
Rear oil seal diameter: 89.00 mm
Flywheel bolt hole pattern: 8 holes
Standard oil film clearance: 0.008 to 0.024 mm
Maximum oil film clearance: 0.050 mm
Standard axial clearance (end play): 0.04 to 0.24 mm
Maximum axial clearance (end play): 0.30 mm
